TOX EPW400 - Page 31

Technical data
OM 100.EPW 400.202002.en 31
Channel Y oil pressure sensor

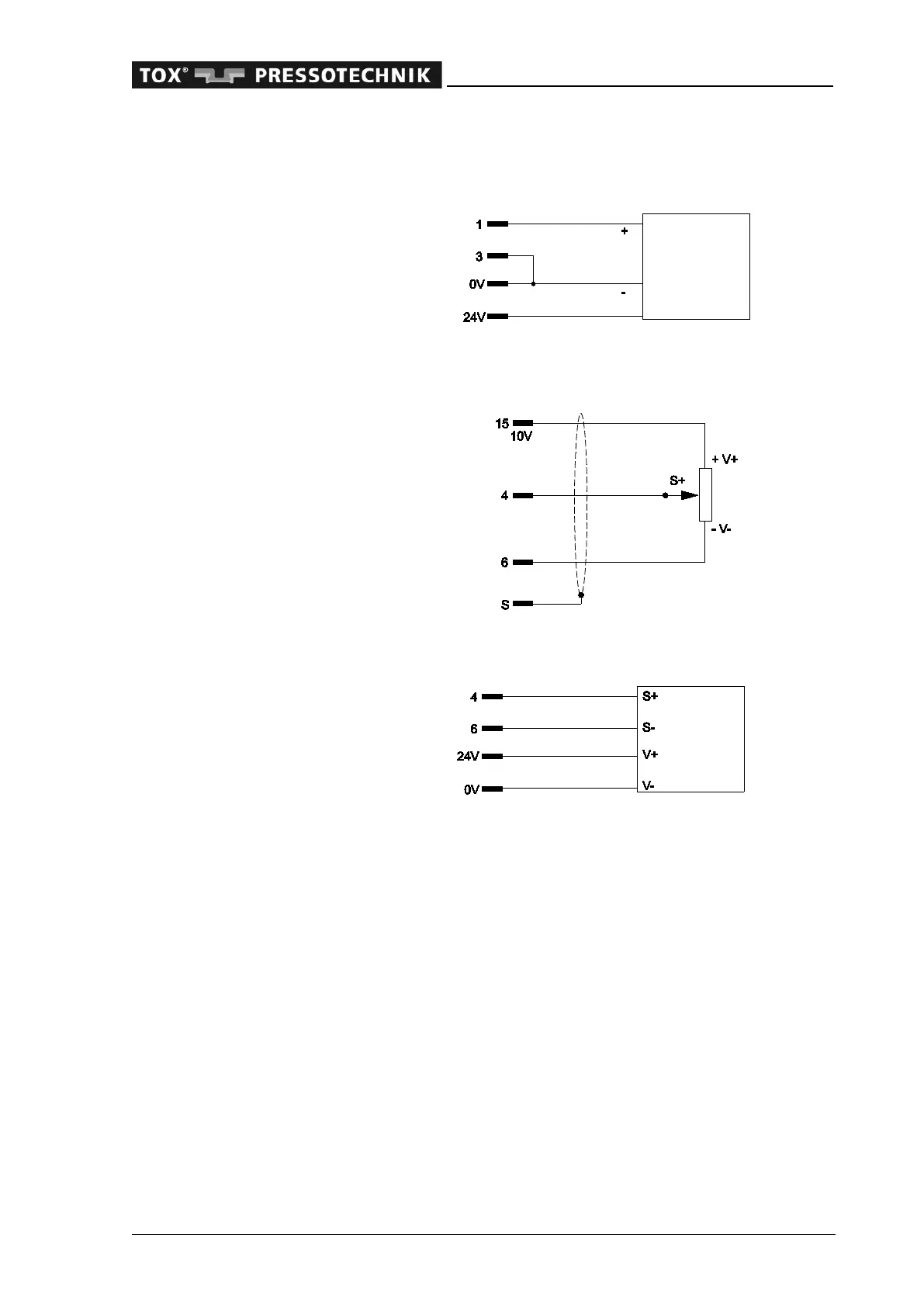

Connection example: ZDO
15-pin D-sub con-
nector, analog I/O
Channel X distance transducer
Connection example of distance potentiometer (ZWW 10 V supply voltage)
15-pin D-sub connector,
analog I/O
Connection example of distance transducer (ZKW 24 V supply voltage)
15-pin D-sub con-
nector, analog I/O
