TOX EPW400 - Built-In Version: Pin Assignment, DMS Force Transducer (Channel Y)

Technical data
OM 100.EPW 400.202002.en 27

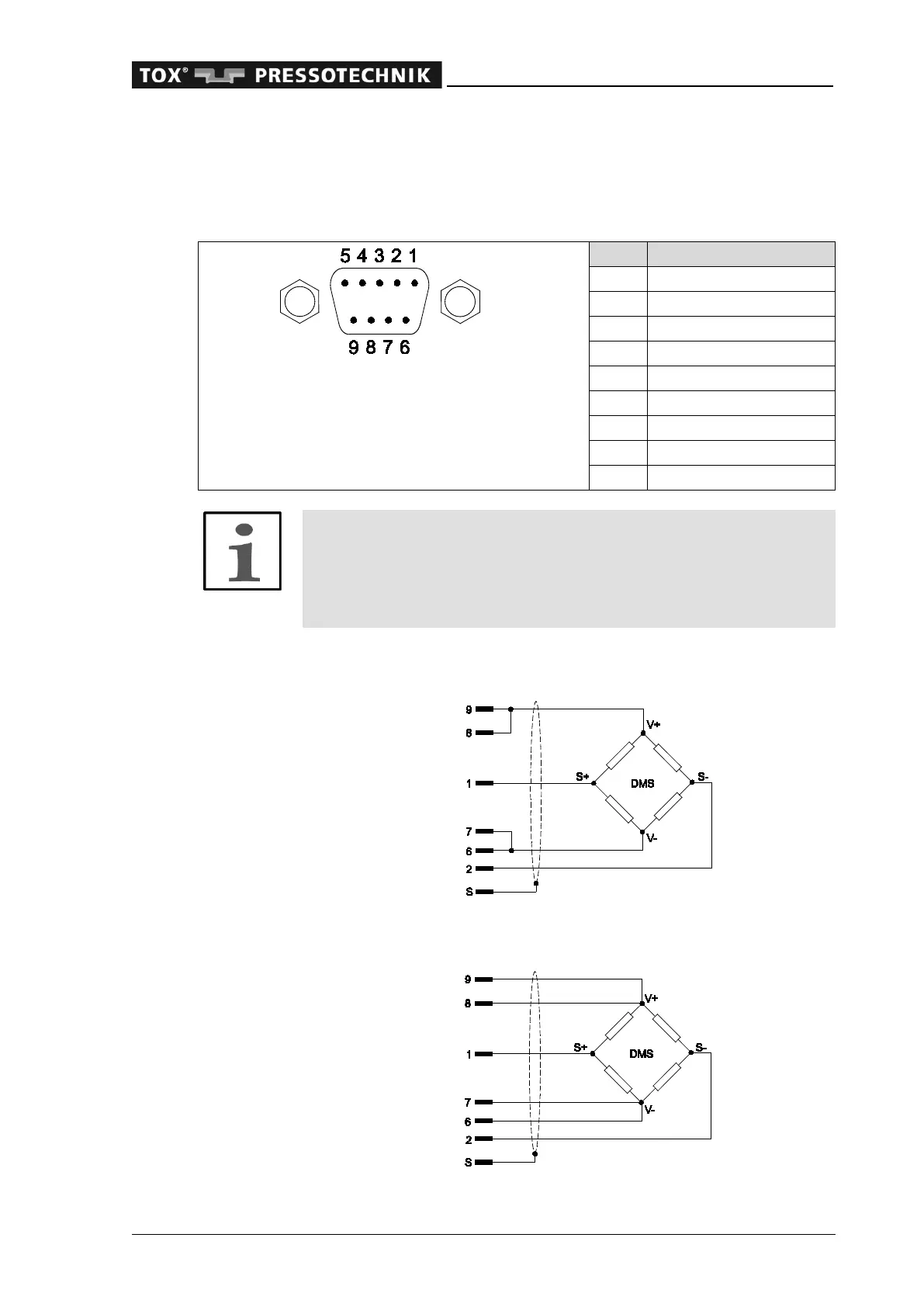

3.2.7 Built-in version: pin assignment, DMS force transducer (channel Y)
Only hardware model EPW400.002.0X (with DMS subprint)
9-pin D-sub female connector DMS0 for DMS sensors
Pin DMS signal
1
Measuring signal DMS +
2 Measuring signal DMS -
3 Reserve
4
Reserve
5
Reserve
6 Supply DMS V-
7
Sensor cable DMS F-
8
Sensor cable DMS F+
9 Supply DMS V+
Note
For hardware model EPW 400.022.0X (2-channel) the second ana-
log input card is installed for channel pair 2 X/Y!
The connections are occupied the same as for the first card.
Channel Y DMS force transducer
Connection example of DMS0 without sensor cable (CKN / ZAK / ZPS)
9-pin D-sub connector
DMS0
Connection example of DMS0 with sensor cable
9-pin D-sub connector
DMS0
