Technical data
26 OM 100.EPW400.202002.en

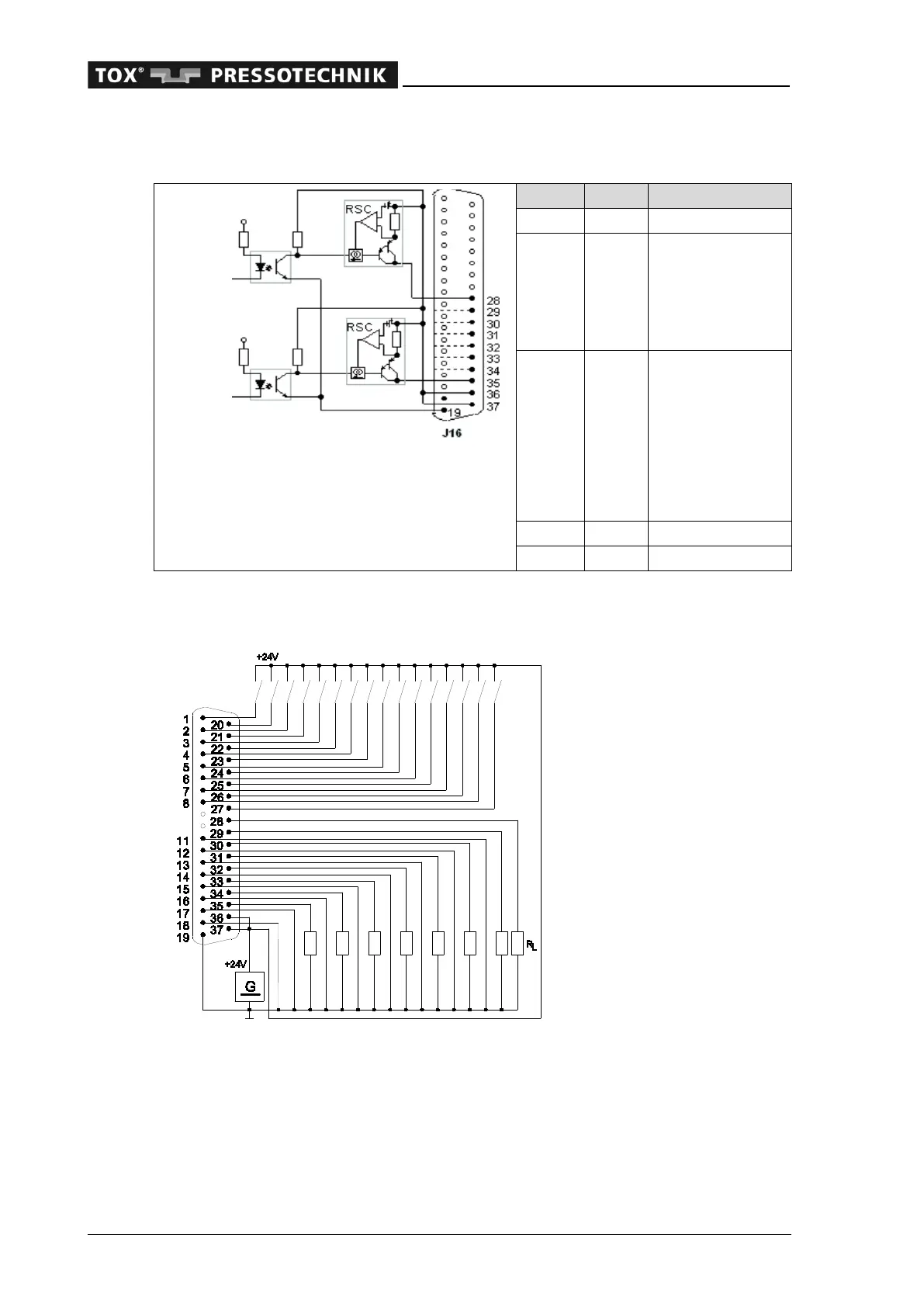

3.2.6 Built-in version: digital outputs Q0 Q7 (37-pin connector)
Pin
OK
Designation
19 0 V 0 V external
28 Q 0 OK
29 Q 1 NOK
30 Q 2 NOK alarm
31 Q 3 Switching point
S1
1
/ Enable
32 Q 4 Switching point
S2
1
/ NOK buzzer
33 Q 5 Ready for meas-
urement
34 Q 6 Program ACK
35 Q 7 Switching point 3
1
/ Item quantity
warning
36 + 24 V +24 V external
37 + 24 V +24 V external
Connection example of digital inputs and outputs
1
Output function configurable
