Configuring the EPW 400
74 OM 100.EPW400.202002.en

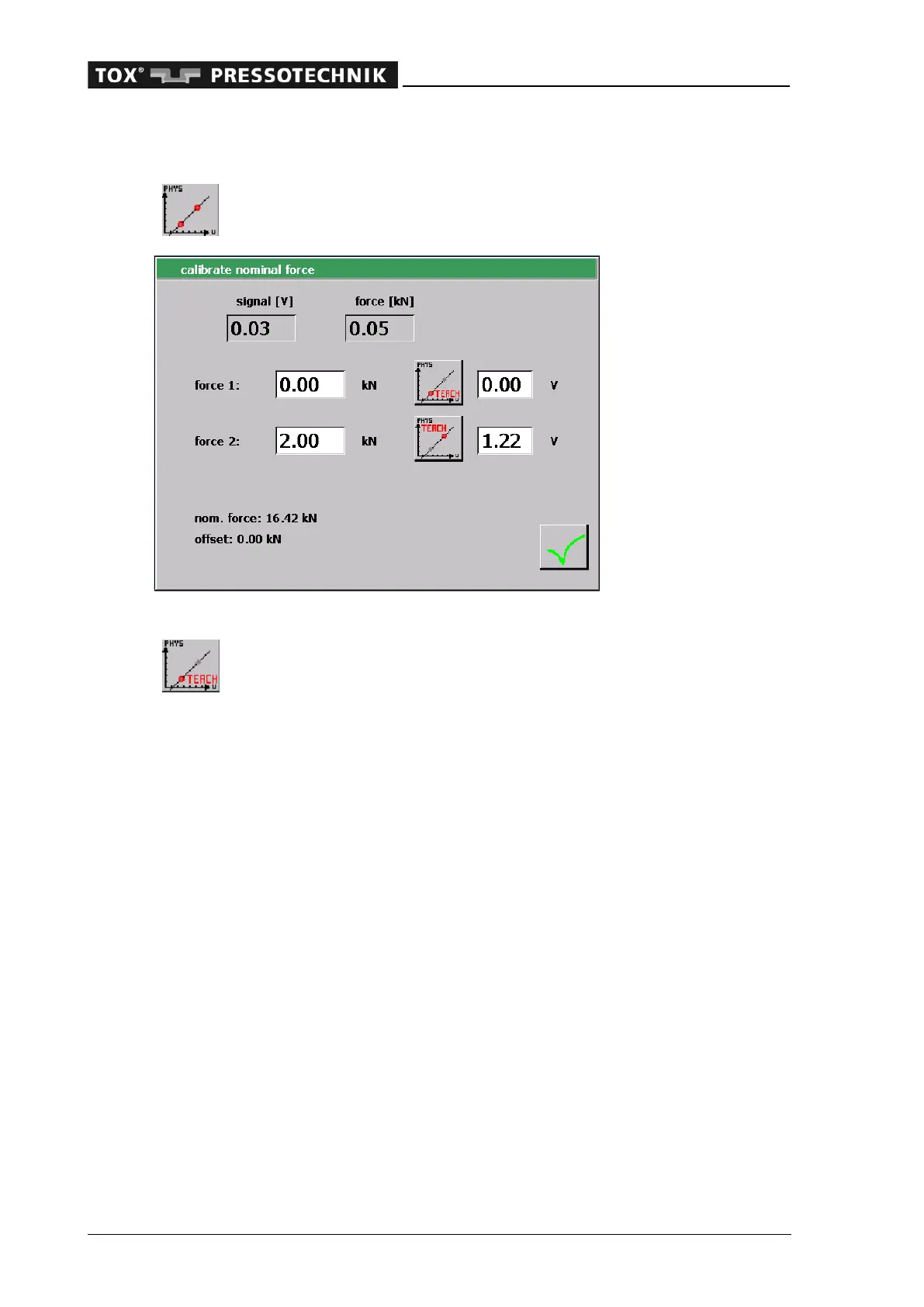

6.2.11 Force sensor calibration
Calibration: Specifying the allocation of the electric measuring signal
and the measuring value to be displayed. This is a two-point calibration.
6.2.12 Force 1
To teach, click on button 'Teach'.
Read in the current electric measuring signal.
Tap on the 'Force 1' input field.
A window with a numerical tap field will be displayed:
Enter the value of the measuring value to be displayed for the electric measuring
signal and confirm this value with the 'Enter' button.
It is also possible to enter the electric measuring signal numerically by tapping on the
input field.
