Technical data
OM 100.EPW 400.202002.en 35
When connecting the DMS using the 4-conductor technique, pins C and D and
pins B and E are bridged.

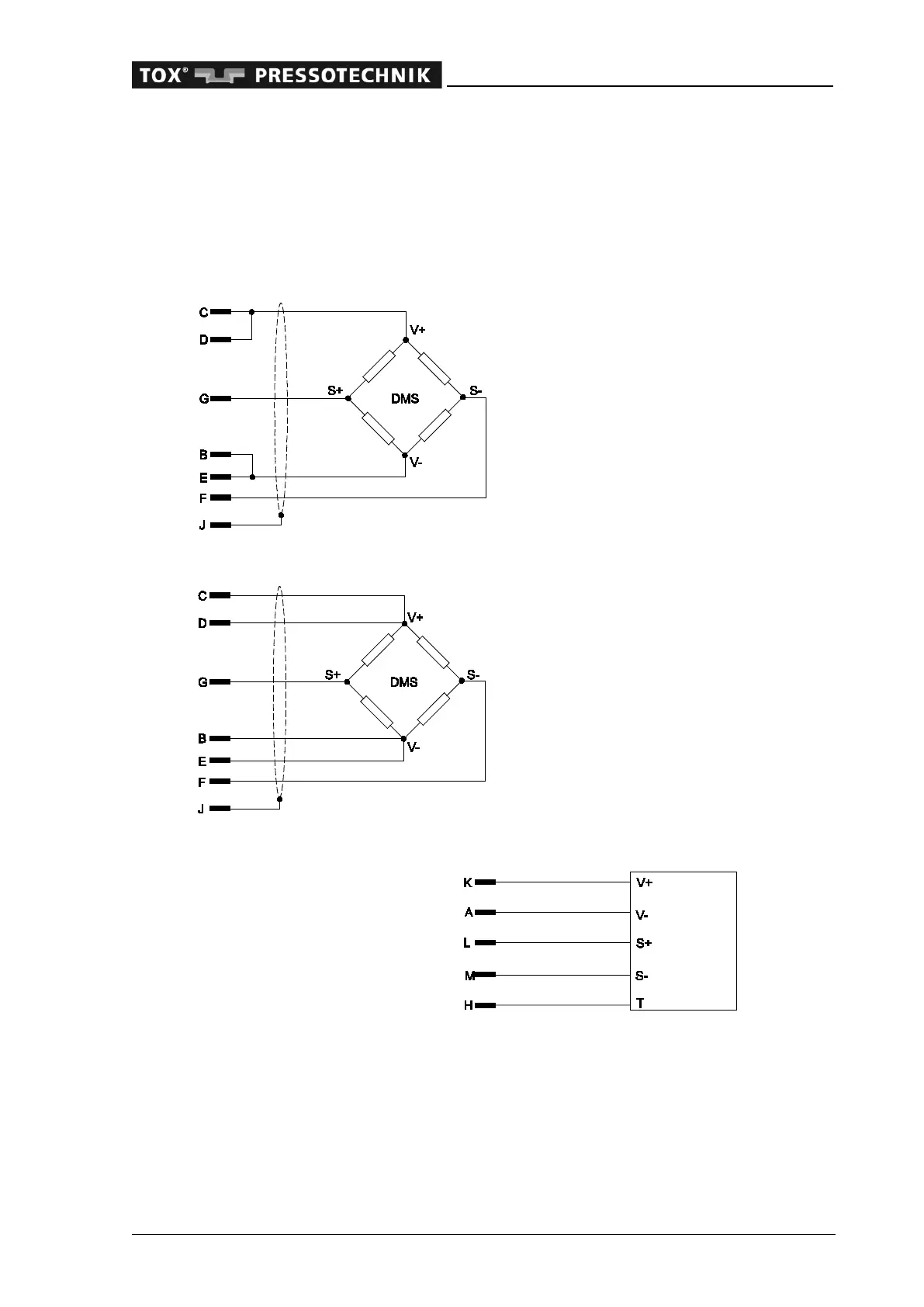

Wall-mounted housing: pin assignment, force transducer (channel Y)
(12-pin round socket)
Connection example: DMS without sensor cable
Connection example of DMS with sensor cable
Connection example of sensor with standard signal 0 - 10 V (ZKN with tare)
