Technical data
36 OM 100.EPW400.202002.en

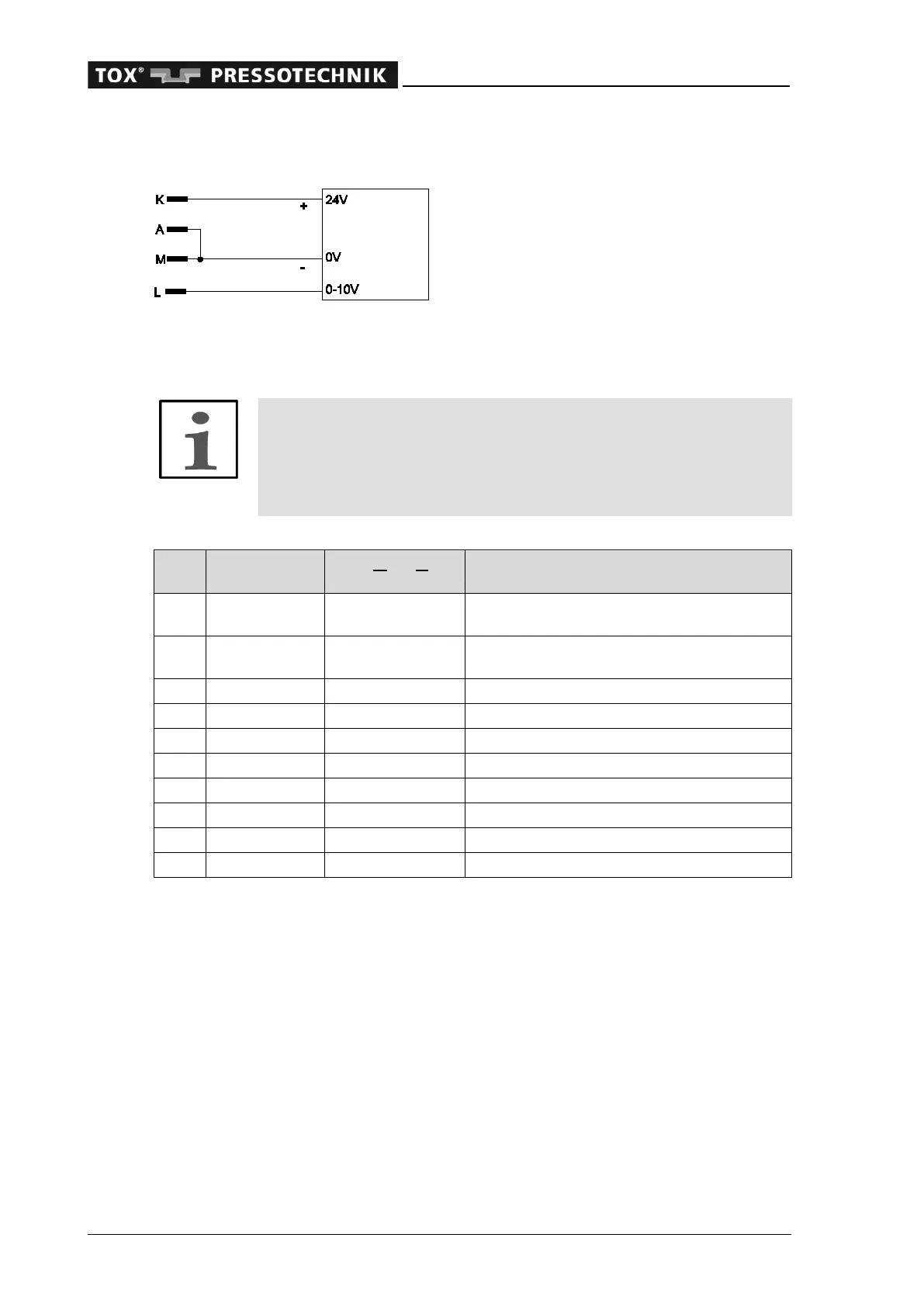

Connection example: ZDO
Pin assignment distance signal (channel X)
The pin assignment is identical in hardware models EPW400.202.0X and
EPW400.202.1X.
Note
For hardware model EPW 400.022.0X (2-channel) the second ana-
log input card is installed for channel pair 2 X/Y!
The connections are occupied the same as for the first card.
12-pin round socket
Pin Signal name Type Input/Out-
Notes
C 10 V+ o Auxiliary power for external measuring sen-
sor 10 V
k 24 V DC o Auxiliary power for external measuring sen-
sor 24 V
m 0 V DC o Earth external
G Signal + i Input standardized measuring signal
a Signal - i Measuring signal earth
j Shield o Shield
h Analog o Analog output 0 - 10 V process-bound
e 0 V DC o Earth analog output
