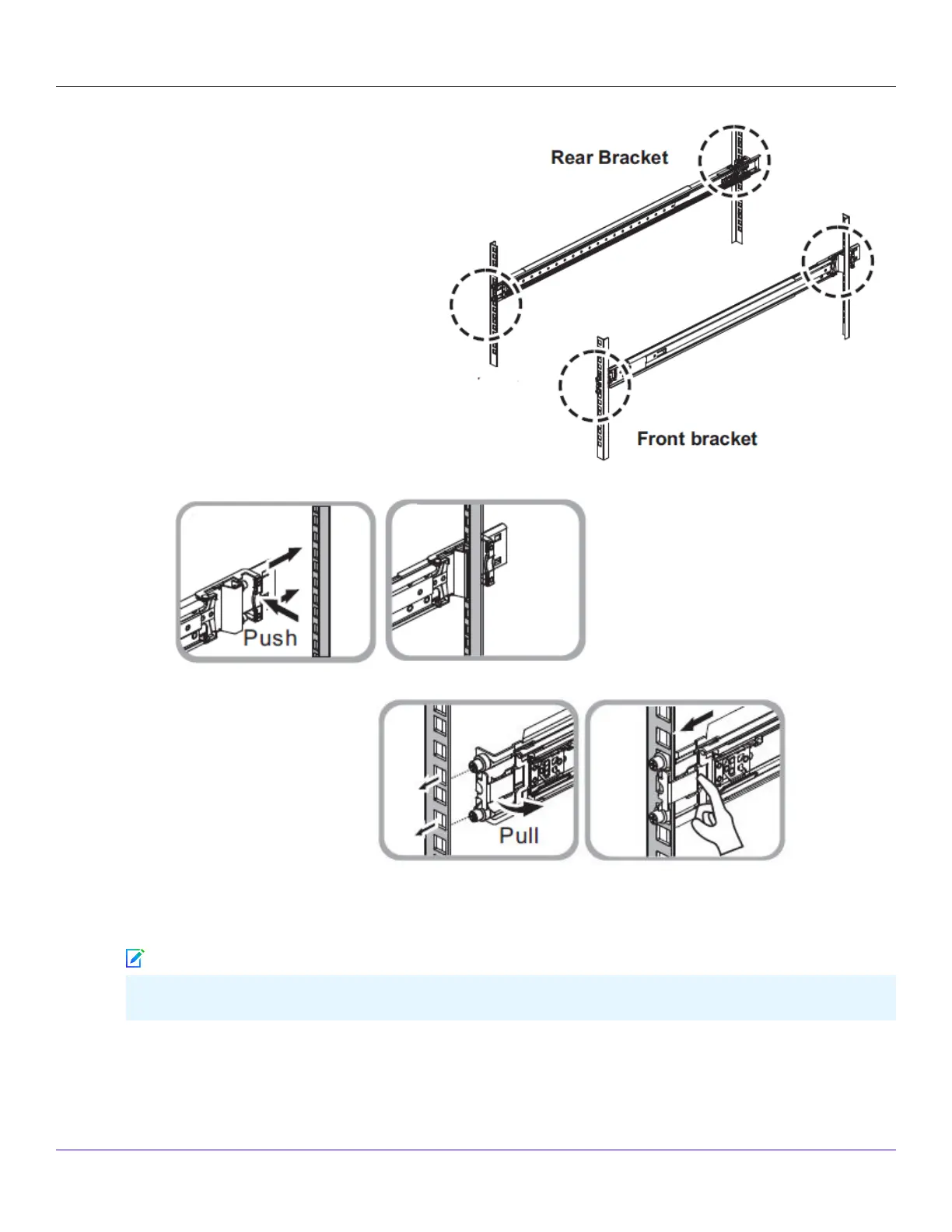

3. Mount the outer slide rails/brackets to the rack posts.
a. Install the rear brackets to the rack. Push the latch forward to ensure the latch is completely installed in the rack
posts.
b. Install the front brackets to the rack. Pull the front securing latch bracket and insert the pegs into the rack holes. Push
the securing latch onto the rack post.
4. Mount the chassis unit into the rack.
a. Pull the middle rail out, extend it until the lock position.
Ensure ball bearing retainer is located at the front of the middle rail.
