121
2017/06
Change network parameters
Change the network parame
ters in the web server.
Write the changes into the device via "Submit".
The device has accepted th
e new se
ttings, the settings are active.

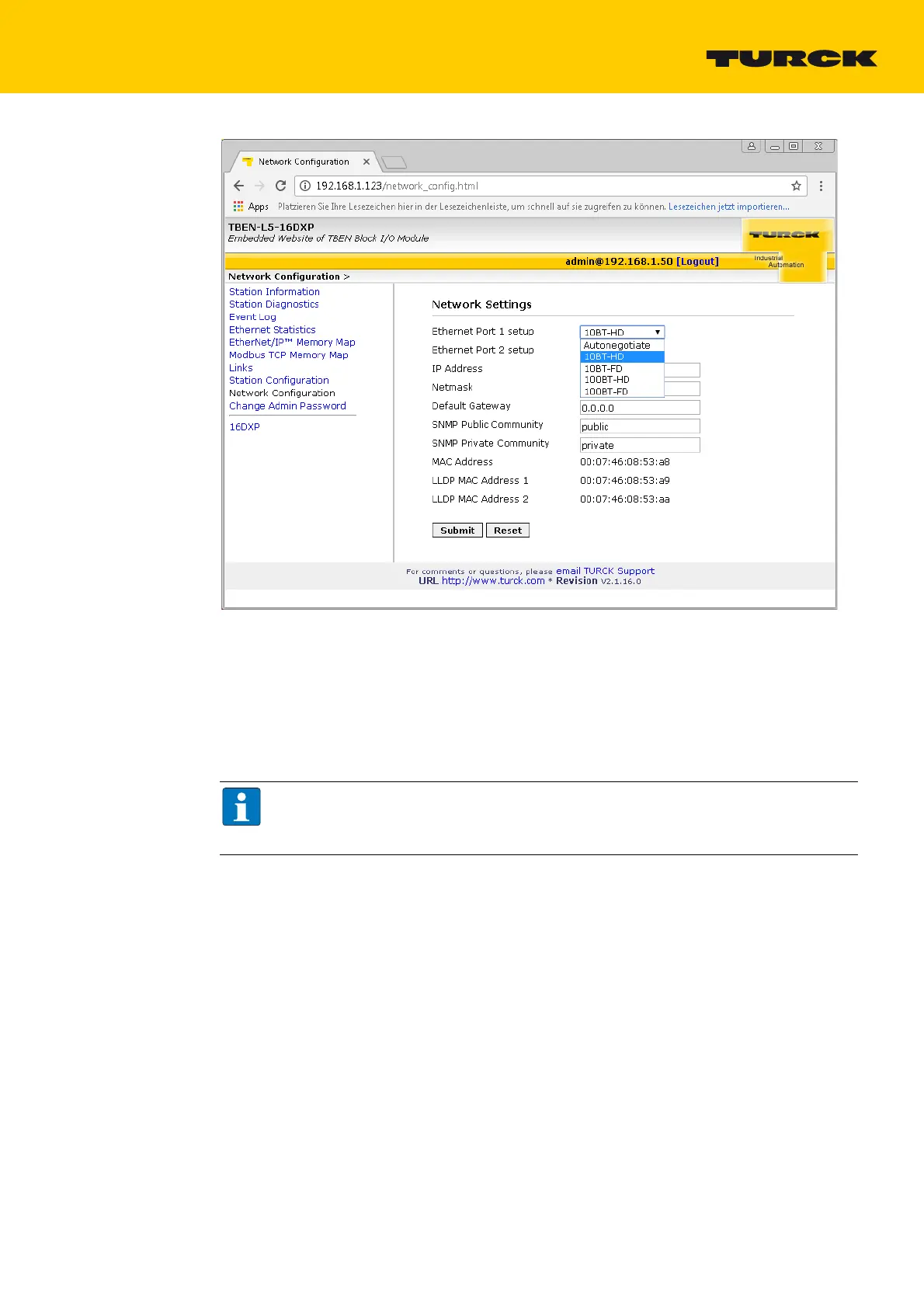

Fig. 29: Web server with Network Configuration
NOTE
"Reset" only resets the
changes don
e in the web server ma
sk back to the original values.
The function doe
s not in
fluen
ce the device itself.
