turck TBEN-L Series User Manual

EtherNet/IP™
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
68
11.4.1 QuickConnect in TBEN
Turck TBEN-L devices support QuickConnect.
QuickConnect is activated:
 via the device’s web server
 via the configuration data in the PLC program via
Assembly Class 0x04, Configuration Assembly 106, bit 0 = 1
or
 via Class Instance Attribute in
TCP/IP Interface Object 245 (0×F5), instance 1, attribute 12 (0×C0)
QuickConnect via Configuration Assembly
The Configuration Assembly is part of the Assembly Class of the device and is defined during the
device's configuration in the RS Logix-software tool by Rockwell Automation.
Quick Connect via Class Instance Attribute
Activate QuickConnect via Class Instance Attribute with the following settings:
NOTE
Activating QuickConnect also activated the automatic setting of all necessary port-
properties:
Auto-negotiation
Transmission speed
Duplex
Topology
AutoMDIX
= deactivated
= 100BaseT
= Full duplex
= linear
= deactivated

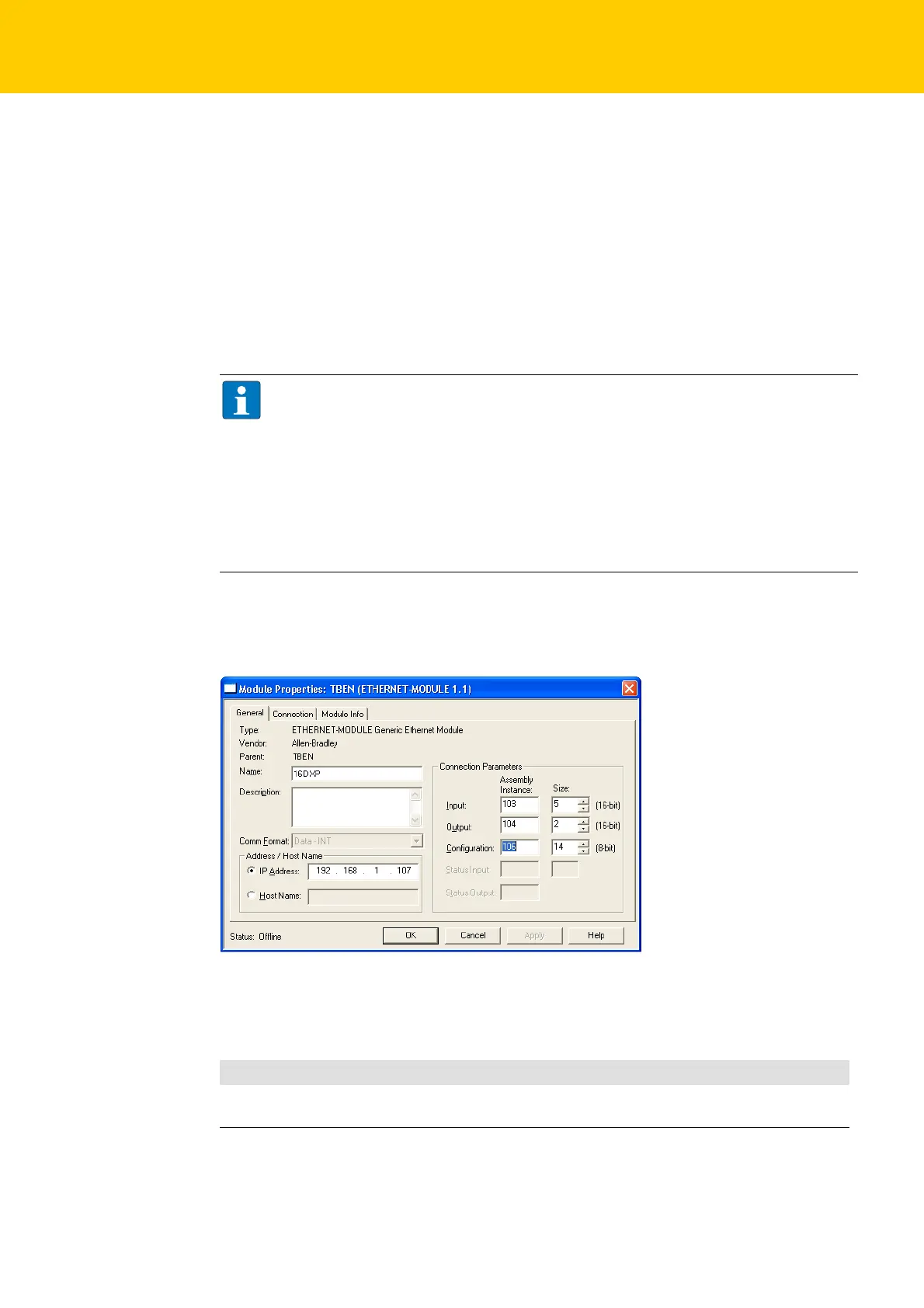

Fig. 15: Configuration Assembly
Class Instance Attribute Value
245 (0xF5) 1 (0x01) 12 (0x0C) 0 = deactivated (default)
1= activated
