4 Product Description
The devices are designed in a fully encapsulated housing with degree of protection IP65/IP67/
IP69K. For the connection of digital sensors and actuators, the devices provide eight or respectively
sixteen input or output channels or respectively sixteen freely configurable digital I/O channels
which can be used as in- or output. The terminals for the digital I/Os are M12 sockets. Two M12 sock-
ets are provided for the Ethernet connection. The power supply connectors are designed as 4-pole
(TBEN-L4) or 5-pole (TBEN-L5) 7/8" connectors.
4.1 Device Overview
4.1.1 Dimensions
The devices are provided with multi-color LEDs for displaying information:
Supply voltage
Group and bus errors
Status
Diagnostics

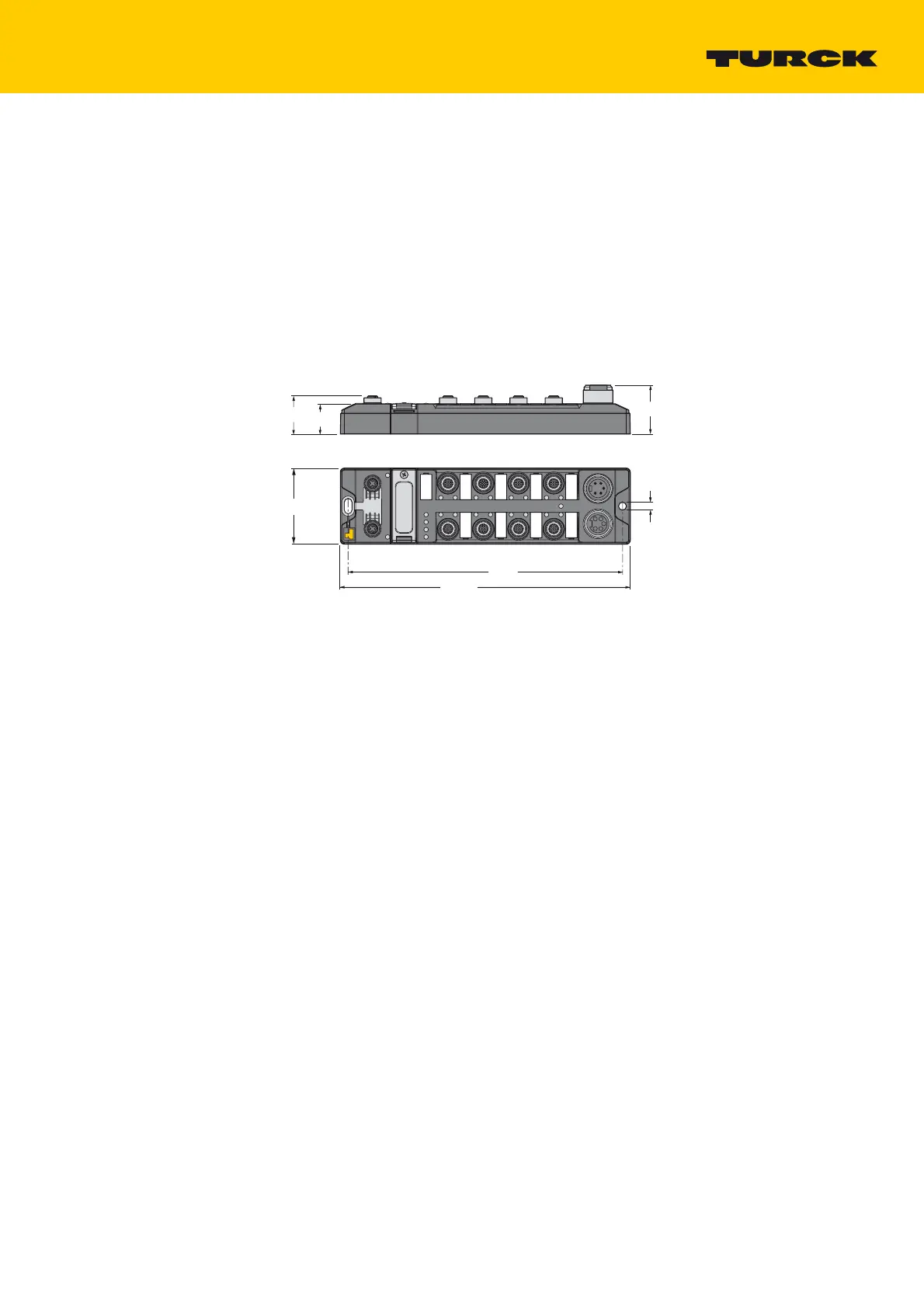

Fig. 1: Size
218
230.5
C4C5C6C7
6.3
38.8
60.4
C0C1C2C3
24
30.2
X2
X1
P2
P1
