Modbus TCP
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
52
The example below shows the data structure in a device with digital and analog in- and outputs.
TBEN-L devices have only one data block, which can be accessed via different Modbus functions.
The access can be carried out either via registers (16-bit-access) or, for some of them, via single-bit-
access.

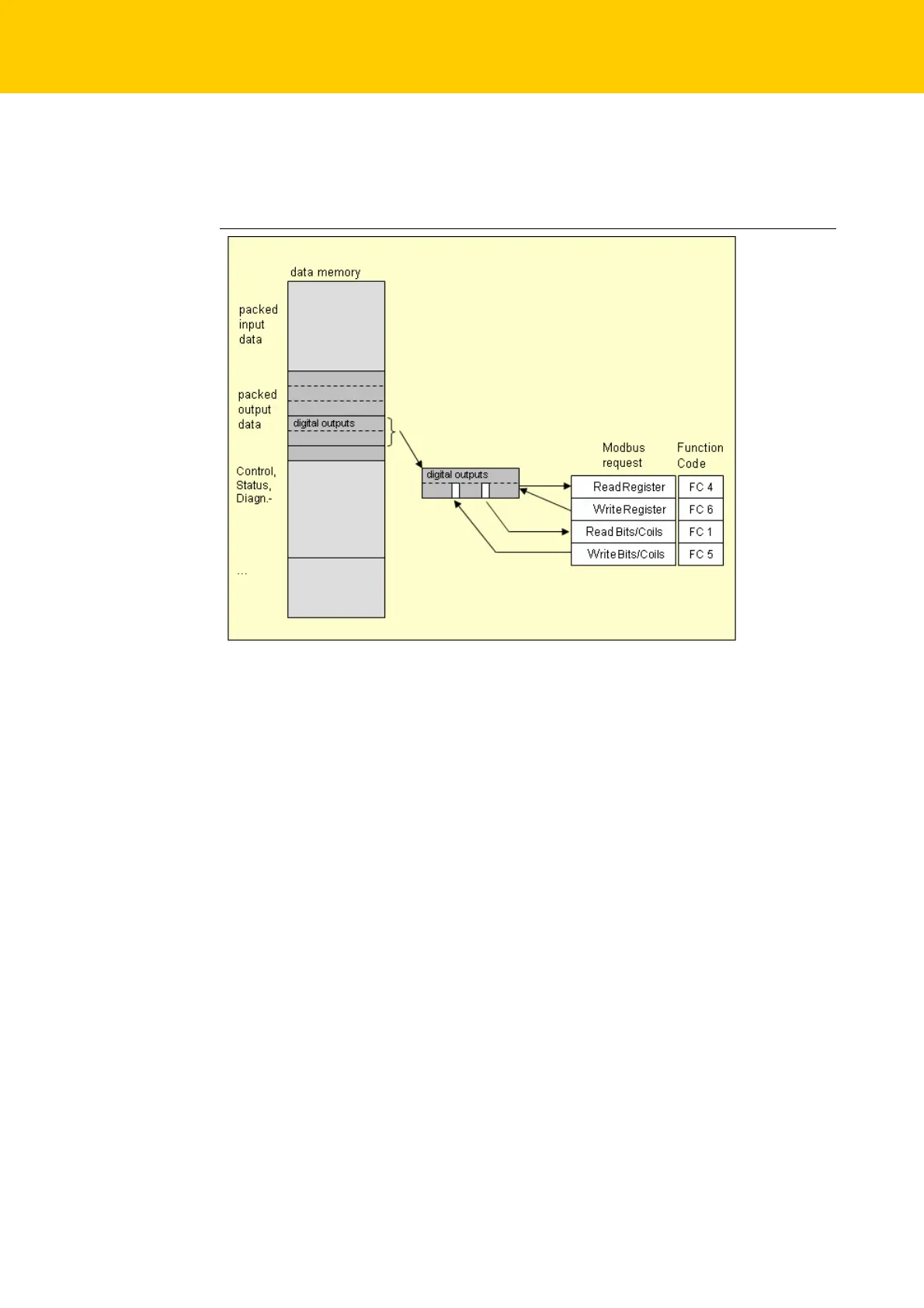

Fig. 14: Picture of the data memory of the TBEN-L modules
