ArcLight Hub User’s Guide
Component Operating Procedures
5-6 1081006 Rev. 001

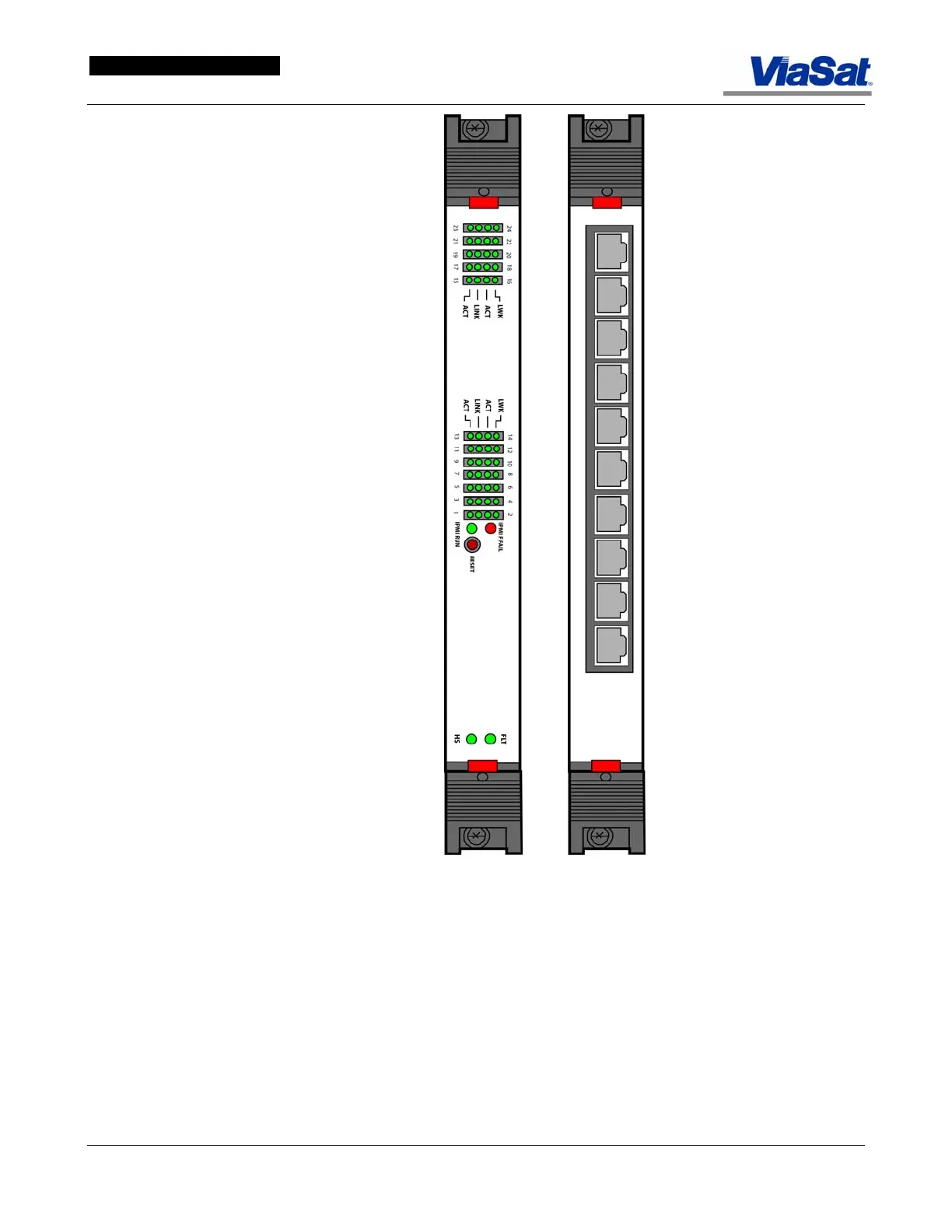

Figure 5-4. Front (left) and Rear (right) Panels of a Blade Server (MDC II Giga-E).
Figure 5-5 shows the physical slot number order of blade servers
installed in the front of the Blade System. The half height Utility servers
are in slot 1. MDC CDC servers are installed in slots 2 through 11.
Slots 12 and 13 can be used for the NAS servers (network storage
arrays). The System Processor servers are inserted in slots 14 and 15.
The redundant pairs (primary and spare) of the RtNMS are installed in
slots 18 and 19, the NMS primary in slot 20 and the NMS spare in slot
21.
