ArcLight Hub User’s Guide
General System Description
1-10 1081006 Rev. 001

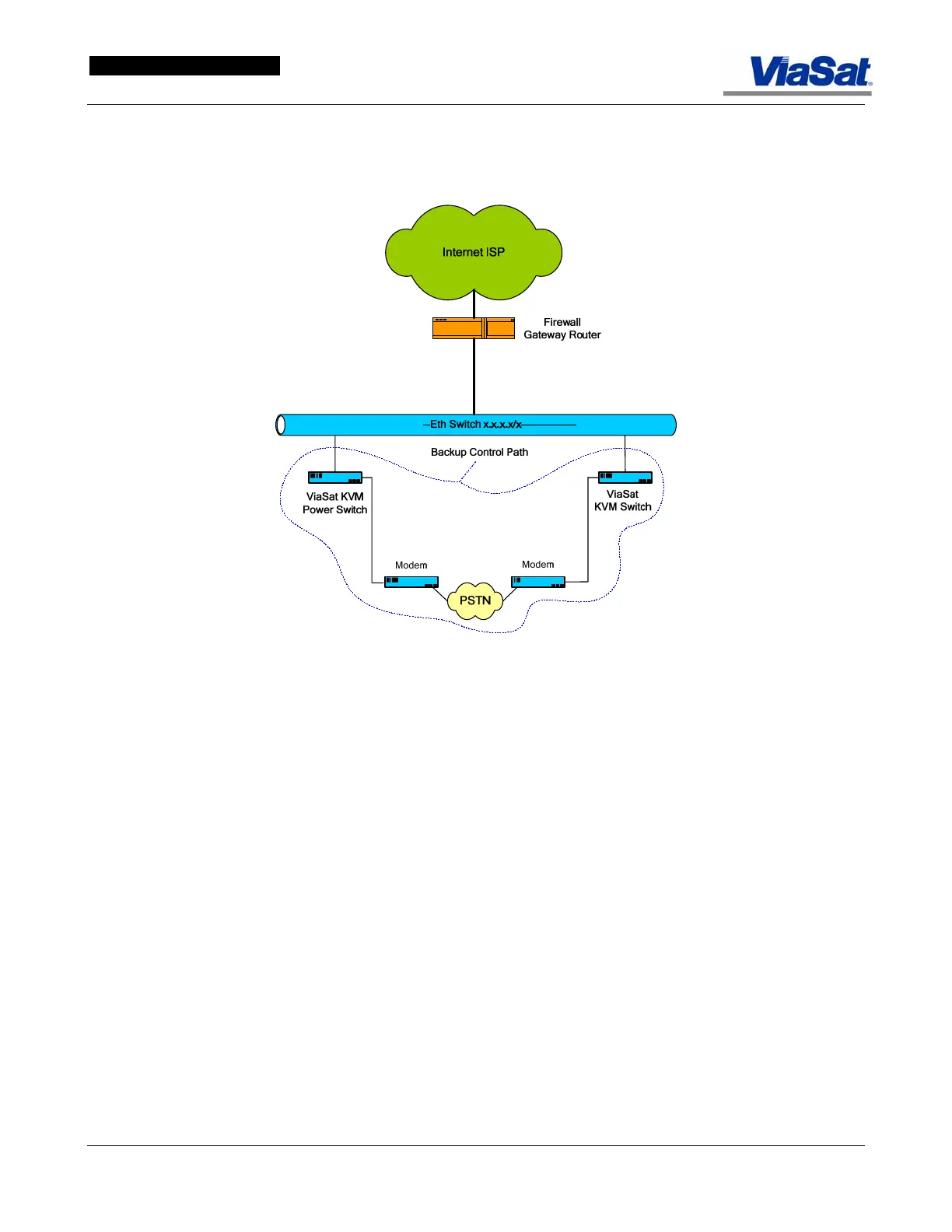

The ArcLight Interface to terrestrial networks is illustrated in Figure
1-6.
Figure 1-6. ArcLight
TM
Interface to Terrestrial Networks.
1.2.2 Hub Software
Each server and client in the ArcLight hub has a corresponding
application running on it by the same name i.e. the NMS platform hosts
the NMS Server application as well as other applications.
Figure 1-7
shows the relationship between software modules in the various Hub
components and
Table 1-2 lists the system and software involved in
each function.
