Stabilizer blade
Crushing hazard due to unintentional actuation!
Unintentional actuation can cause serious injuries or death.
► Raise the control lever base.
► Lower the stabilizer blade to the ground once machine operation is
over.
► Ensure that no one is in the danger zone.

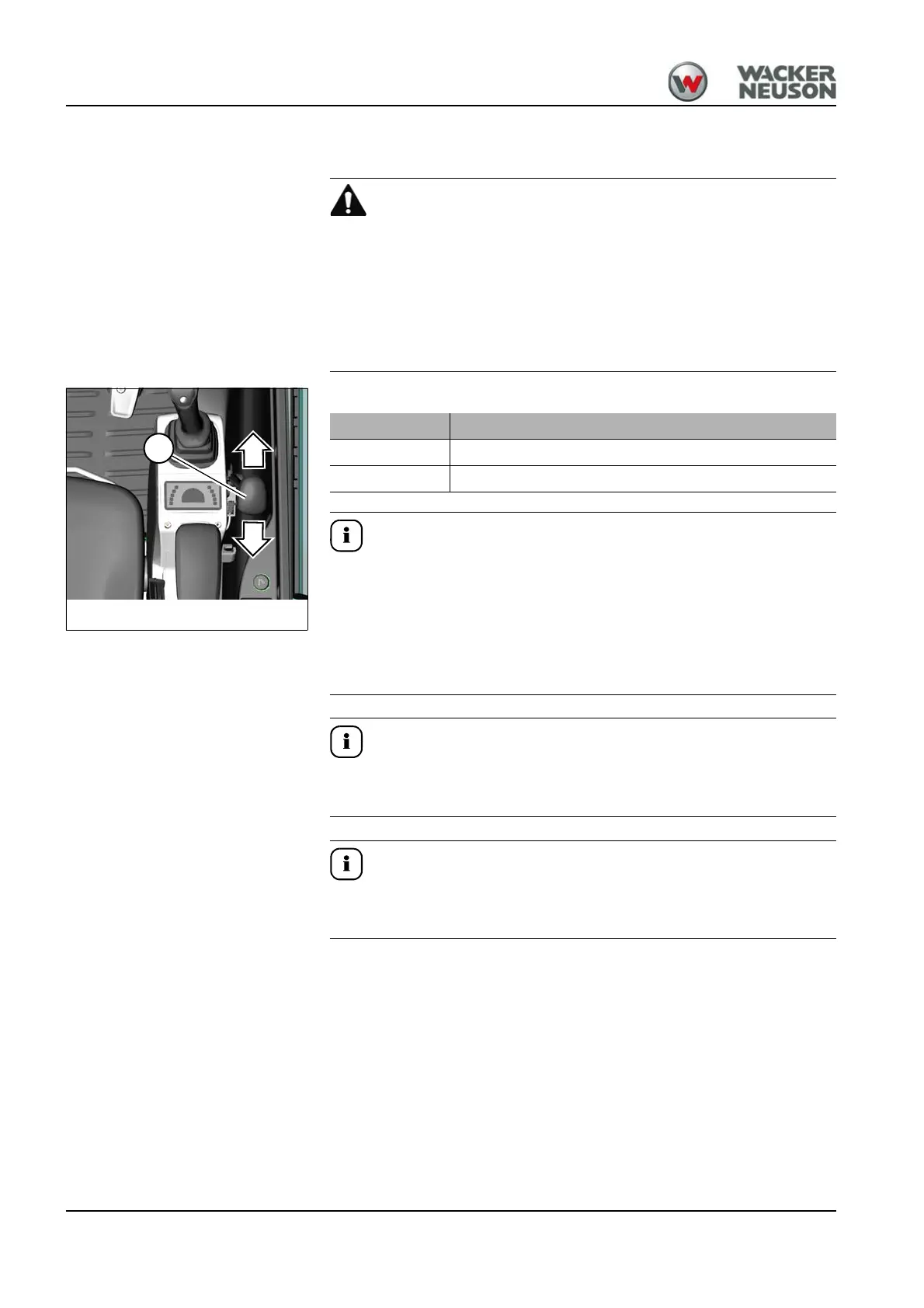

1. The stabilizer blade is controlled via lever 8.
Lowering the stabilizer blade too deeply into the ground can create a high
resistance.
► Slightly raise the stabilizer blade.
► The clearance between the stabilizer blade and the ground should be
about 1 cm (0.4 in).
► Raise the stabilizer blade before start traveling.
The stabilizer blade is also used as a parking brake.
► Press the stabilizer blade against the ground.
In order to ensure maximum stability during operate:
► Lower the stabilizer blade.
Position Function
1 Lowers the stabilizer blade.
2 Raises the stabilizer blade.
