Additional control circuit – AUX I (option)
Operating the additional control circuit
Oil flow to right-hand line:
Press pedal 2 forward.
Oil flow to left-hand line:
Press pedal 2 backward.
Proportionally controlled additional control circuit – AUX I (option)
1. Turn the rotary switch on the right-hand control lever base to the
required position.
Operating the additional control circuit
Oil flow to left-hand line:
Push slide switch 23 on the right-hand control lever to the left.
Oil flow to right-hand line:
Push slide switch 23 on the right-hand control lever to the right.
2

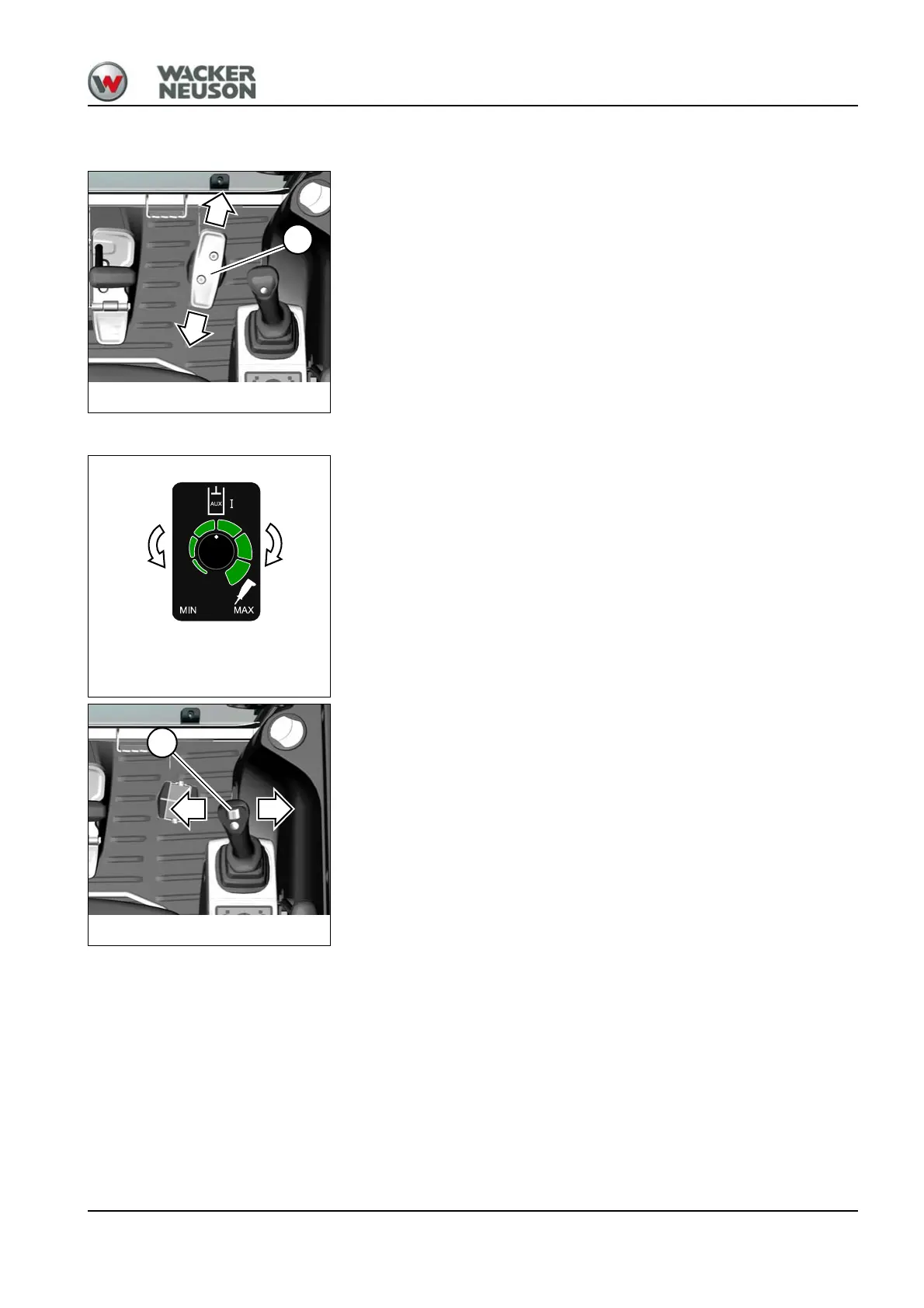

Fig. 155
Fig. 156
Fig. 157
23
