9.14 Payload/stability
Safety instructions – lift capacity table
The values of the lift capacity table apply to normal operation (excavating,
for example).
The values of the stability table apply to lifting gear applications.
Crushing hazard due to tipping over of machine!
Will cause severe injuries or death.
► If an attachment (a bucket, for example) is installed, the weight and the
contents of the attachment must be subtracted from the weight or
mass values specified in the table. Load density must also be taken
into account.
► Never exceed the weight and mass values specified in the table.
If the weight or mass value is exceeded, there is a risk of damage to
property if the machine tips over.
► Never exceed the weight and mass values specified in the table.
In the case of 360° rotations, the lowest value in a column and the
corresponding position of the machine must be observed.
The indications are only approximate values. Attachments, uneven
ground and soft or bad ground conditions affect stability, and the weight
and mass values. The operator must take these influences into account.

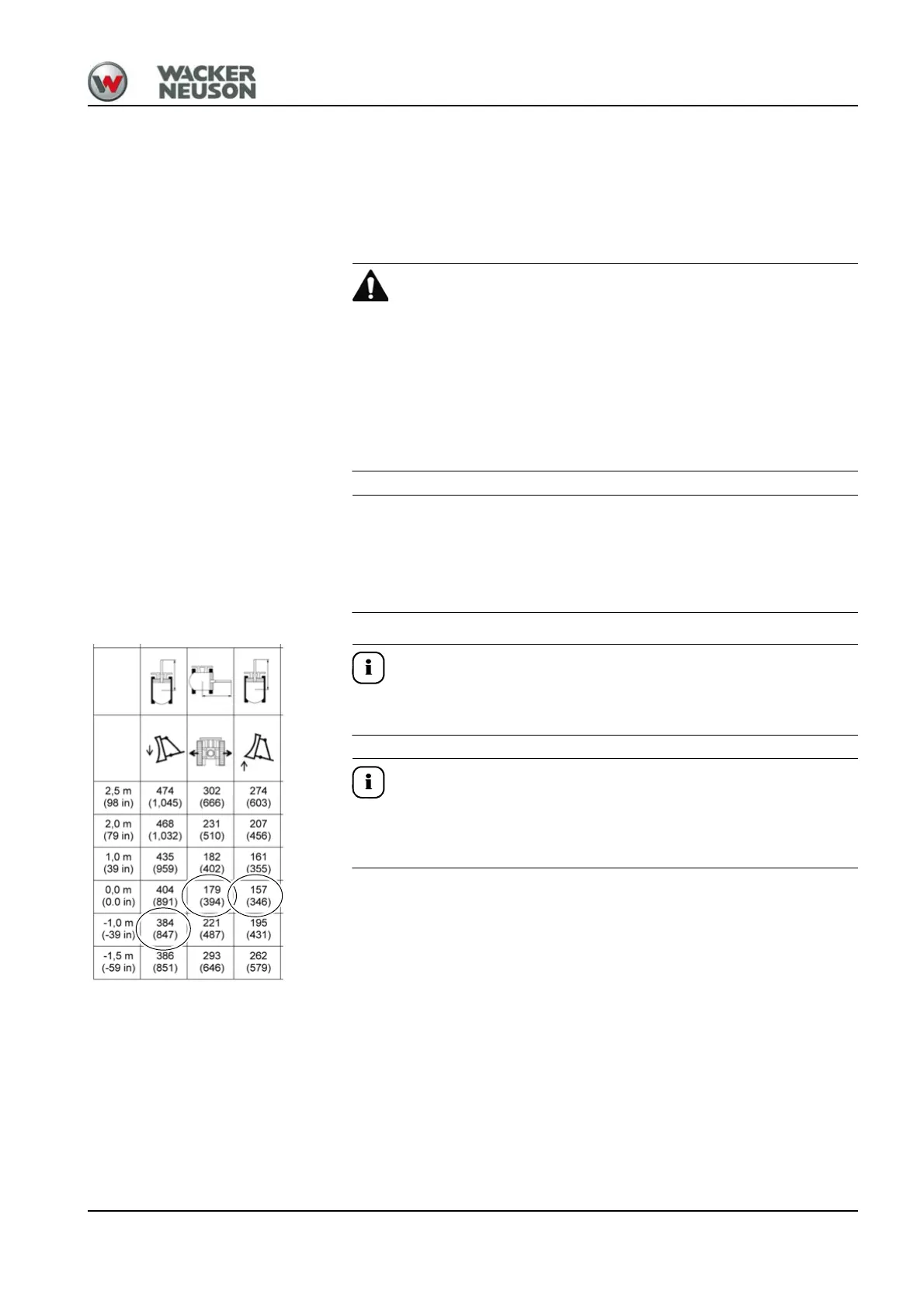

Fig. 277 (symbolic representation)
