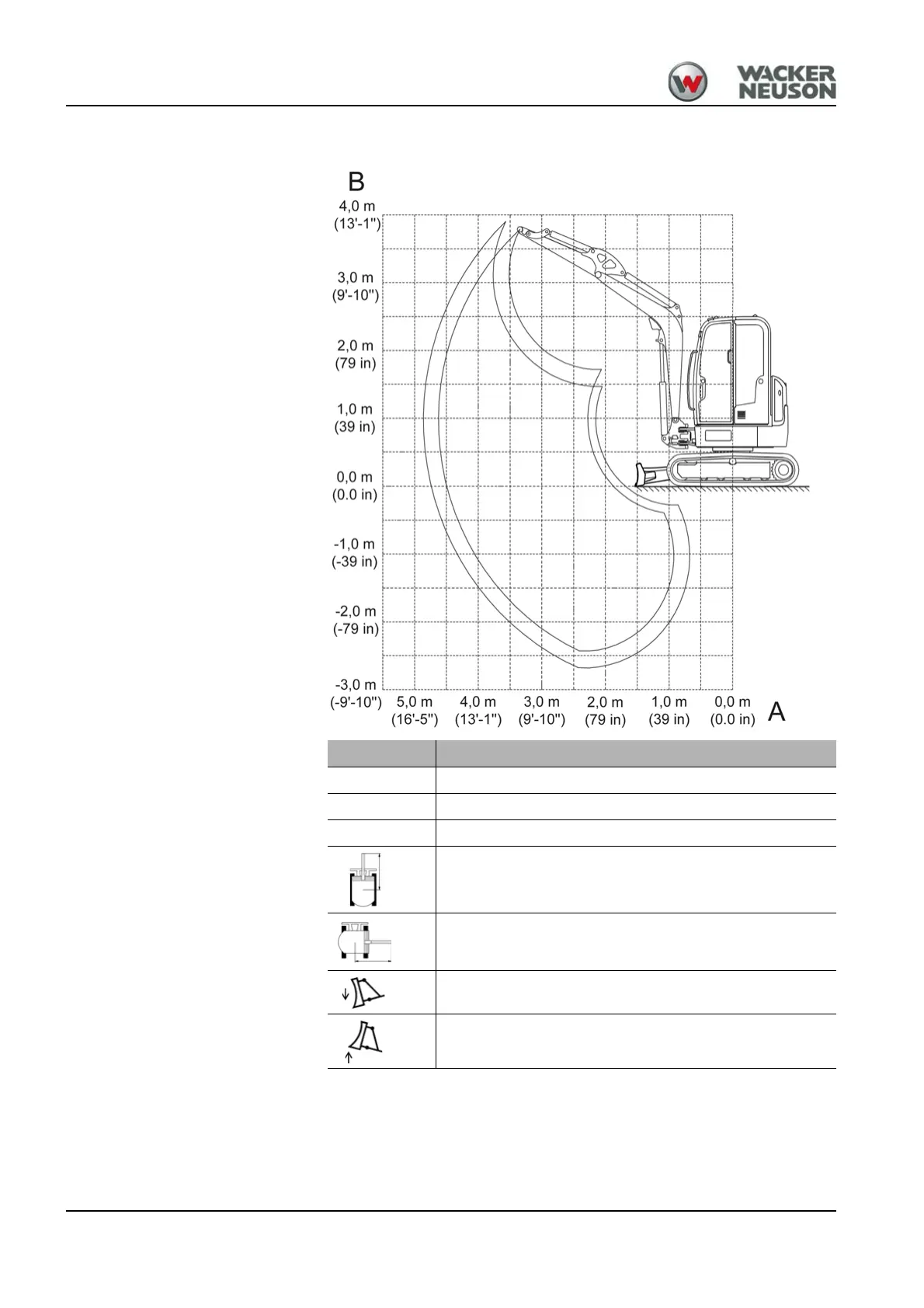

Legend
All table values specified in kg (lbs), in horizontal position on firm and level
ground without bucket or attachment (for example hammer, etc.).
The machine’s lift capacity is restricted by the hydraulic output and the
hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is
exceeded.
Designation Explanation
A Reach from live ring center
B Load hook height
max Authorized lift capacity with horizontal boom
With the stabilizer blade in traveling direction
With or without the stabilizer blade, 90° to traveling direc-
tion
Lowered stabilizer blade
Raised stabilizer blade
To Next Page
