ISO/SAE controls (option)
WARNING
Accident hazard due to modified control lever operation!
Can cause serious injuries or death.
► Ensure that you know which control mode has been selected before
starting machine operation.
► Always secure the wing nut on the changeover lever of the directional
valve.
► Do not operate the machine with a malfunctioning wing nut. Contact a
Wacker Neuson service center and replace the malfunctioning wing
nut.
The changeover valve is located at the front left under the travel gear.
The changeover valve can be switched between Operating Pattern A (ISO
controls) and Operating Pattern B (SAE controls).
The function label for the controls is affixed on the roof window.

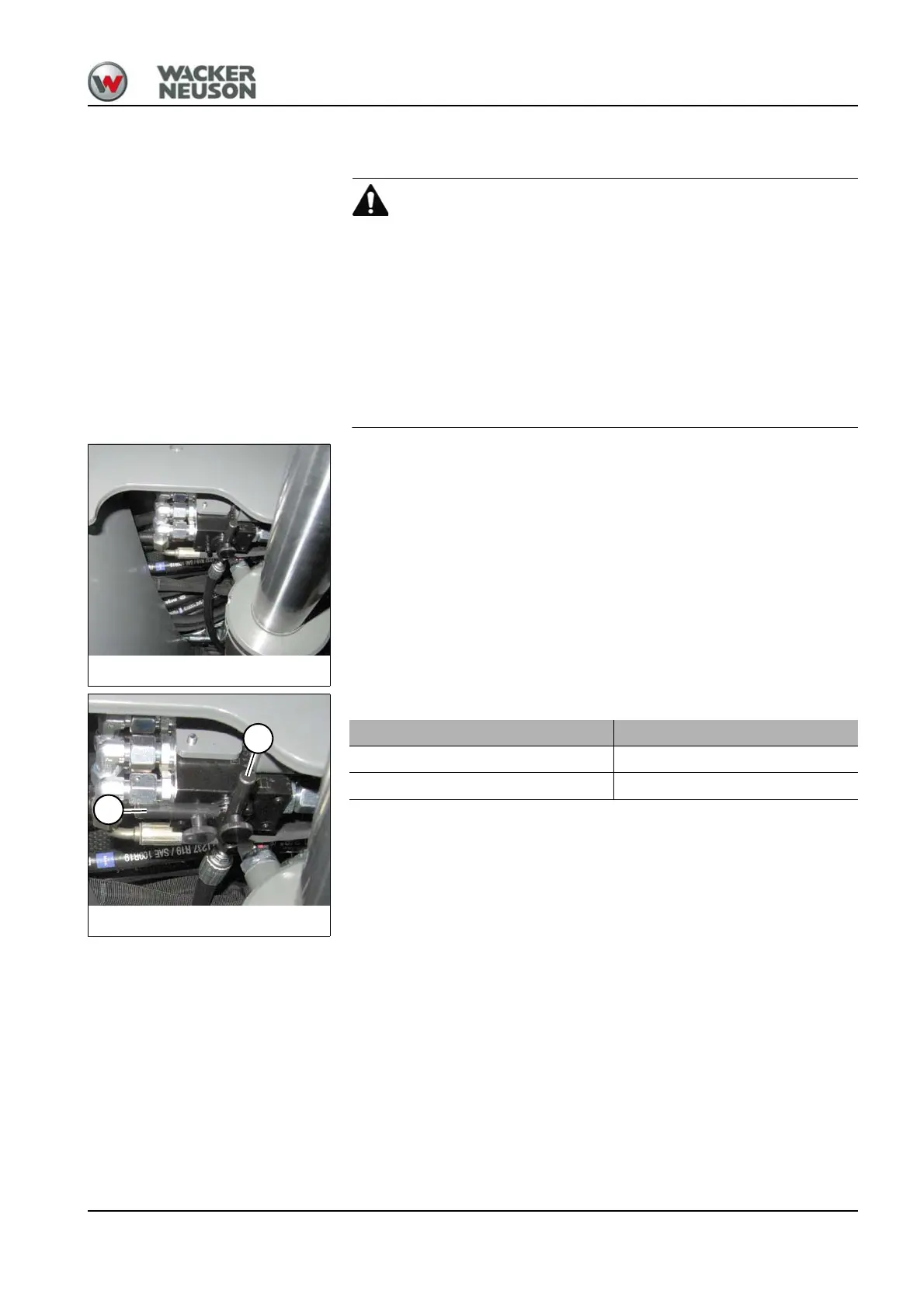

Fig. 146
Fig. 147
A
B
Operating Pattern Controls
AISO controls
B SAE controls
