OM EZ38 us 1.1 * ez38w700.fm 7-25
7

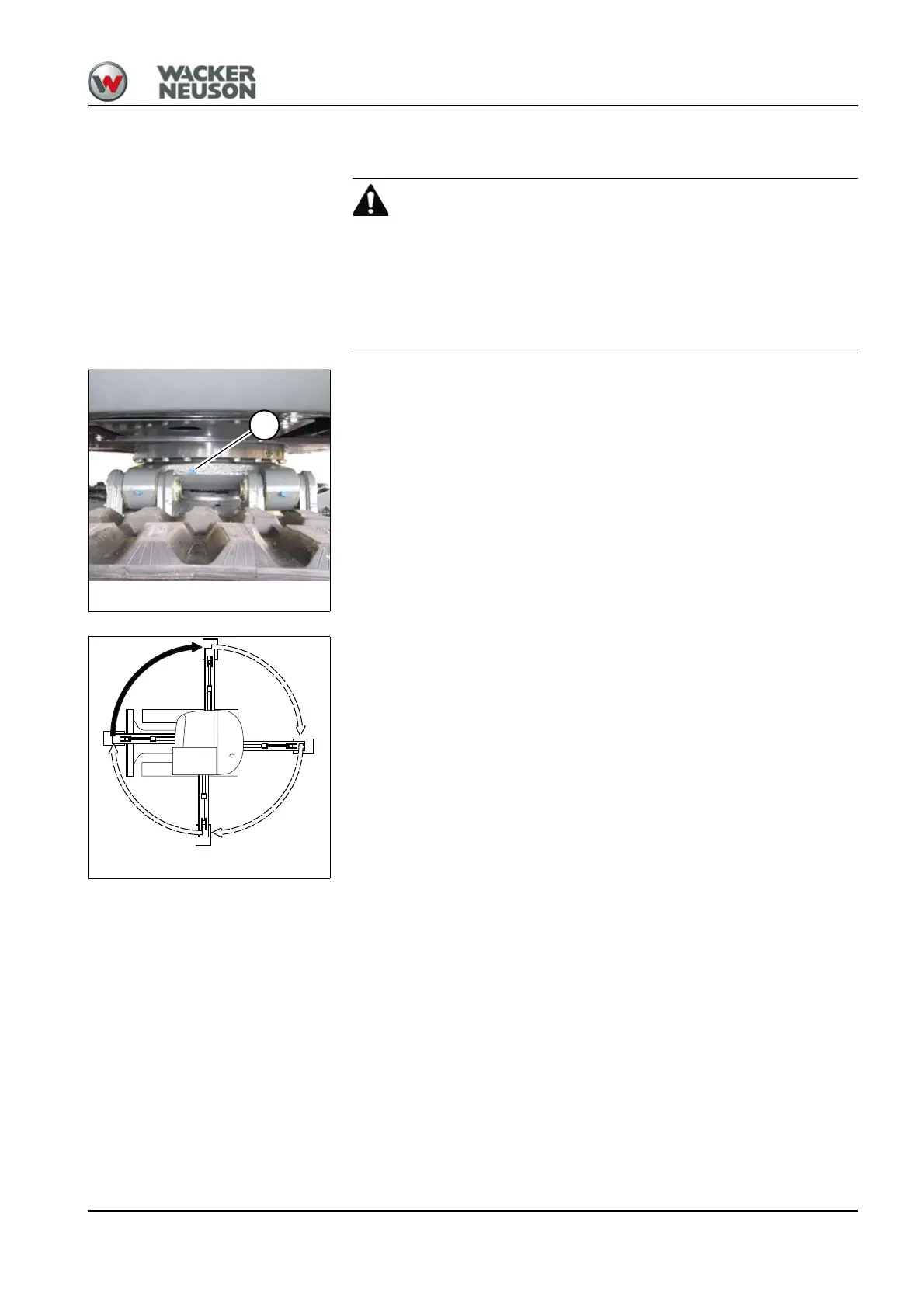

Vertical Digging System live ring gear (option)
Crushing hazard during lubrication!
Will cause severe injuries or death.
► Park the machine as shown in Fig. 233.
► Do not rotate the upper carriage.
► Do not tilt the upper carriage.
The lubrication point is located at the right on the console.
1. Park the machine on firm, level and horizontal ground.
2. Lower the stabilizer blade to the ground.
3. Lower the boom and the stabilizer blade to the ground.
4. Stop the engine, remove the starting key and carry it with you.
5. Apply grease to lubrication point 12 with five strokes of the grease gun.
6. Start the engine, raise the boom and the stabilizer blade.
7. Rotate the upper carriage by 90°.
8. Repeat steps 2 – 7 three times until the upper carriage is back in its
initial position.
