5-32 OM EZ38 us 1.1 * ez38b510.fm
5
Hydraulic quickhitch - Easy Lock (option)
• Before putting this feature into operation, specific training must be
performed by a qualified technician and must be understood by the
operator.
• For safety reasons, the quickhitch must be operated with two control
elements. This avoids opening the quickhitch unintentionally during
work operation.
• There must be no dirt on the claws before hitching.
• For more information, see Easy Lock/Powertilt with Easy Lock
Operator’s Manual.
Crushing hazard when picking up attachments!
Can cause serious injuries or death.
► Ensure that no one is in the danger zone.
► Do not use a damaged attachment.
► After hitching the attachment or before starting machine operation,
ensure that the lock is correctly connected with the mount.
► The check pin K must be fully retracted. Otherwise repeat the lock
cycle until check pin K is retracted.
► Ensure correct locking with a short and rapid succession of stick and
bucket movements as close as possible to the ground.
For system-specific reasons, the hydraulic quickhitch opens or closes with
any function. For operation-specific reasons, only use the function “Raise
stabilizer blade” to open or close.
Picking up an attachment

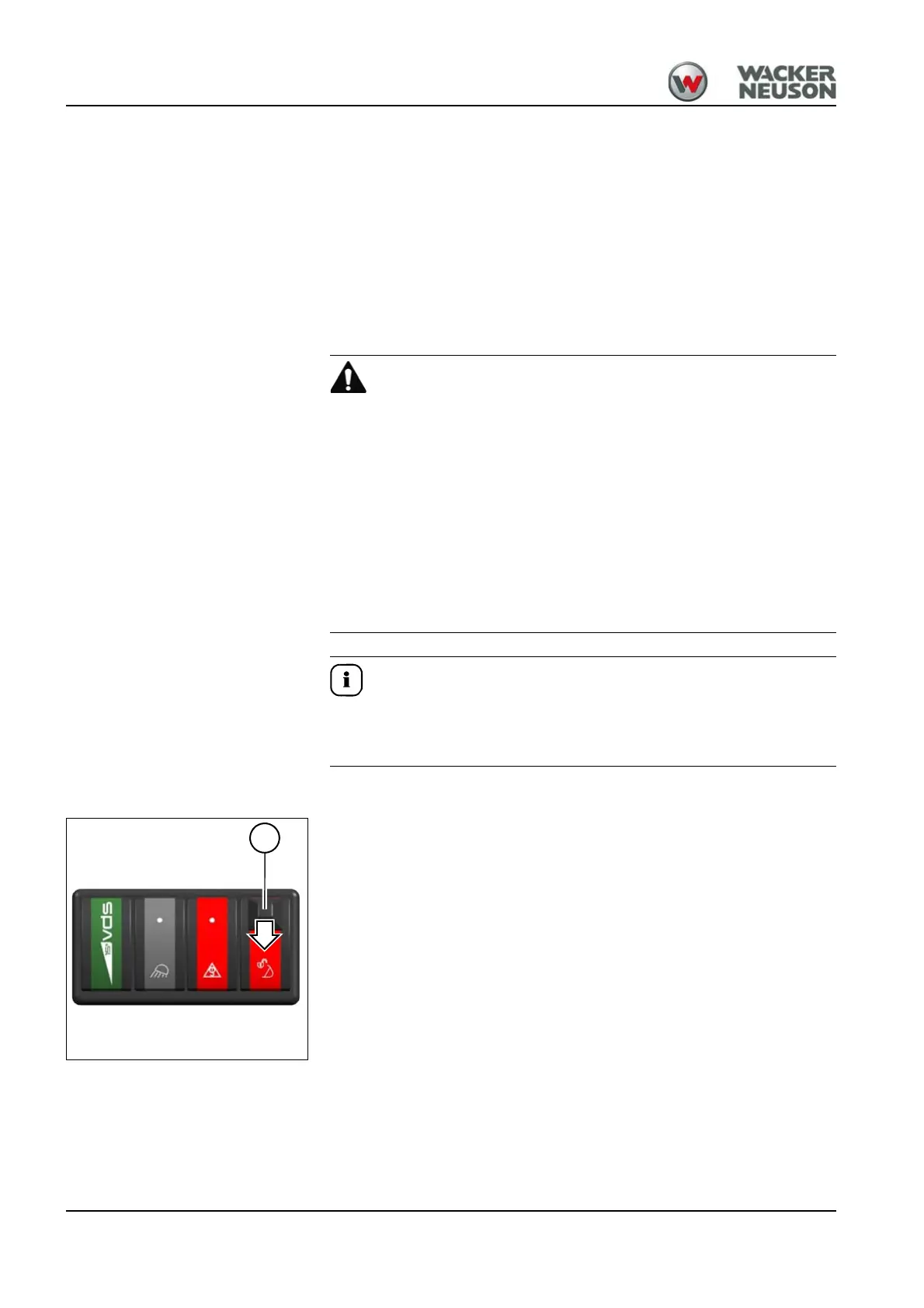

1. Unlock and press switch 42.
➥ The buzzer sounds.
➥ The hydraulic quickhitch is enabled and can be operated.
