Wacker Neuson EZ38 - Page 129

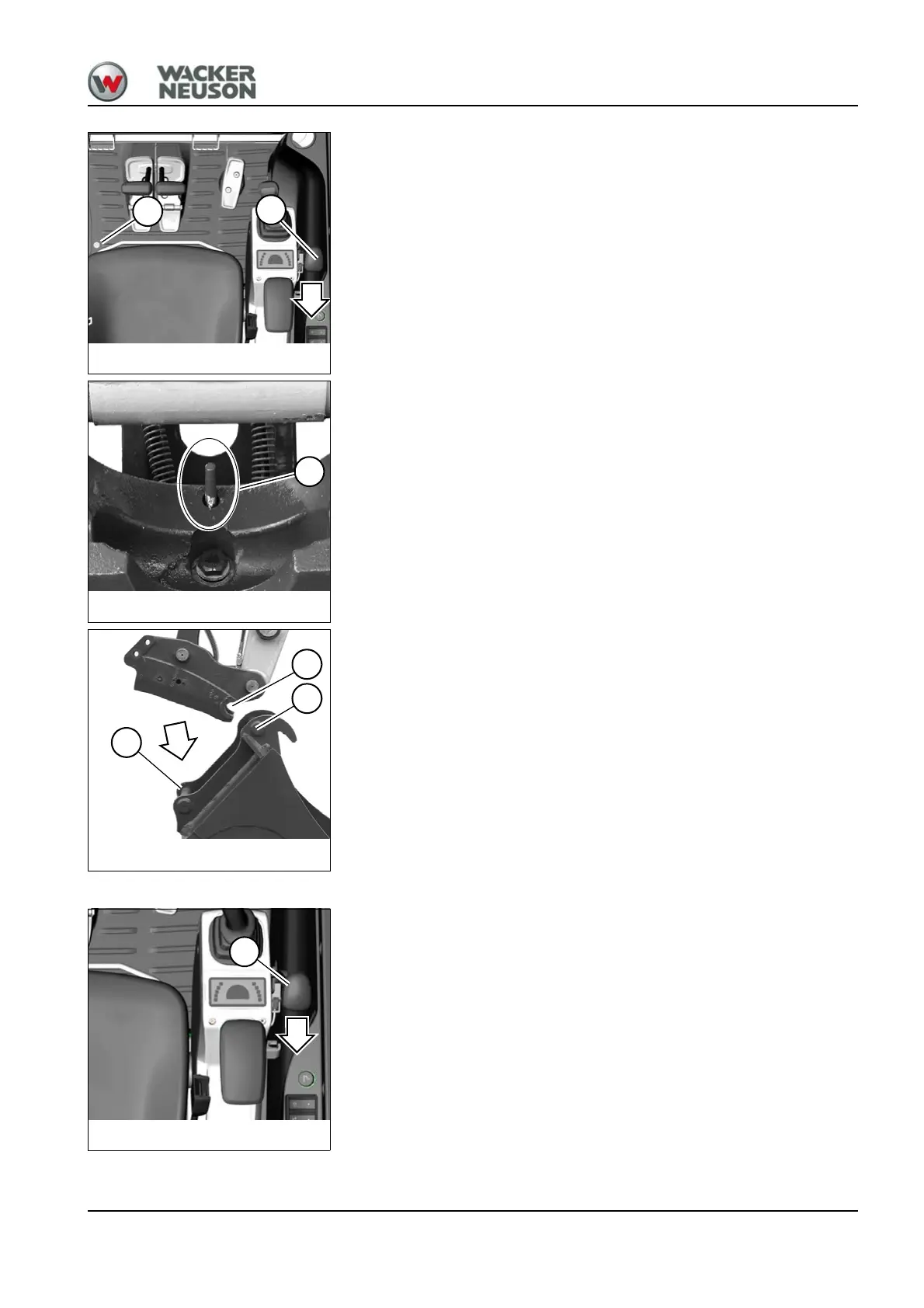

OM EZ38 us 1.1 * ez38b510.fm 5-33
5
2. Press and hold foot-operated pushbutton switch 3.
3. Pull and hold stabilizer-blade lever 8 as far as it will go.
➥ The quickhitch opens.
➥ The quickhitch is fully open if check pin K (red) is extended.
4. The stabilizer-blade lever can be released once the quickhitch is open.
5. Hitch claws A (on the side of the machine) into pins Z of the
attachment mount.
6. Extend the bucket hydraulic cylinder so that the second pin D of the
attachment touches the quickhitch.
7. Check whether the attachment touches the quickhitch with the second
pin D.
8. Release foot-operated pushbutton switch 3.
9. Pull and hold stabilizer-blade lever 8 as far as it will go.
➥ The quickhitch closes.
10.Release stabilizer-blade lever 8.
11.Switch off switch 42.
➥ The buzzer is silent.
Fig. 171
3
8
Fig. 172
K
Fig. 173
D
A
Z
8
Fig. 174
