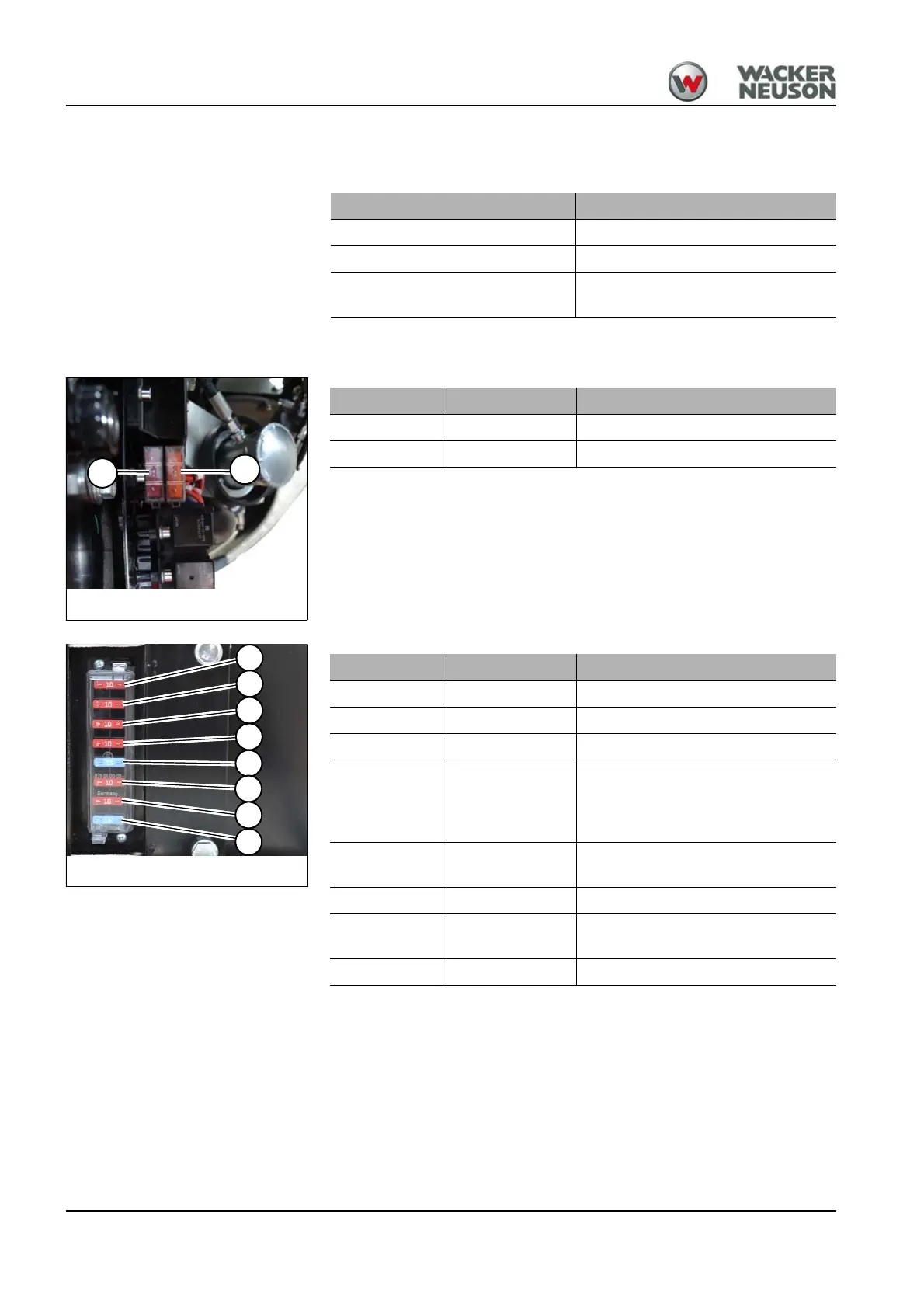

9.8 Electrical system
Electrical components
Fuses
The main fuse box is located at the upper left in the engine compartment.
The fuses are located at the left under the seat.
EZ38
Alternator 12 V 55 A
Starter 12 V 1.7 kW (2.3 hp)
Battery (according to DIN EN
50342, DIN IEC 60095-2)
12 V 74 Ah
F1
Fig. 274
F2
Fuses Rated current (A) EZ38
F1 40 A Start, preheat, cutoff solenoid
F2 50 A Starter lock, fuel-filling pump
Fig. 275
F5
F3
F4
F7
F8
F10
F9
F6
Fuses Rated current (A) EZ38
F3 10 A Display, cutoff solenoid, relays
F4 10 A Boom working light
F5 10 A Cabin working light
F6 10 A
Valves, horn, proportional auxiliary
hydraulics (AUX I)
proportional 3rd control circuit (AUX
II)
F7 15 A
Heating, air conditioning, traveling
signal
F8 10 A Wiper, interior light
F9 10 A
Rotating beacon, radio, 12 V power
outlet
F10 15 A Socket
