Checking the screw connections of the cabin
1. Raise the floor mat on the outer left side.
2. Tighten screw A to 85 Nm (63 ft.lbs).
3. Raise the floor mat on the outer right side.
4. Tighten lock nut B to 85 Nm (63 ft.lbs).
5. Tighten screw C to 85 Nm (63 ft.lbs).
6. Tighten screw D to 85 Nm (63 ft.lbs).
7. Tighten screw E to 85 Nm (63 ft.lbs).
8. Tighten screw F to 85 Nm (63 ft.lbs).

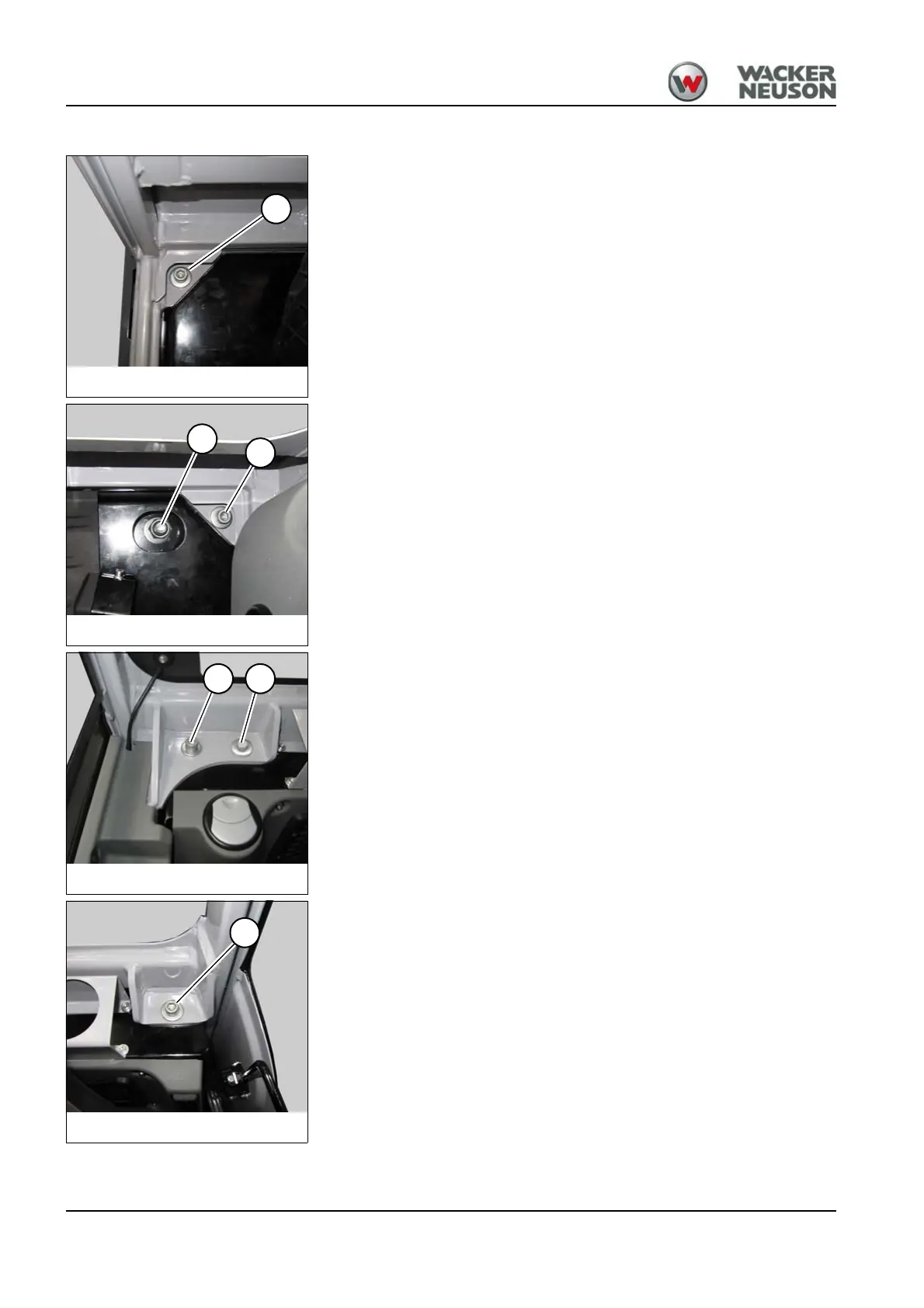

Fig. 101
A
Fig. 102
B
C
Fig. 103
D E
Fig. 104
F
