9. Pull tilt rod F out of bracket G.
10.Slide tilt rod F into guide H.
11.Secure tilt rod F with the split pin in guide H.
Information
Check the tilt rod, split pin, safety cable and the fastening of the safety
cable for cracks and cuts.
Have malfunctioning parts immediately replaced by a Wacker Neuson
service center.
Lowering the cabin
1. Ensure that the piston of the lift pump is fully extended.
2. Turn valve D clockwise.
3. Remove the split pin from guide H.
4. Press tilt rod F into bracket G.
5. Use the handhold to lower the cabin until it is back on the pump.
6. Fit tilt rod C onto valve D.
7. Slowly turn tilt rod C counter-clockwise.
➥ The cabin is lowered by its own weight.
NOTICE
Damage to cabin bearing due to closed valve.
► Leave the valve open after lowering the cabin.

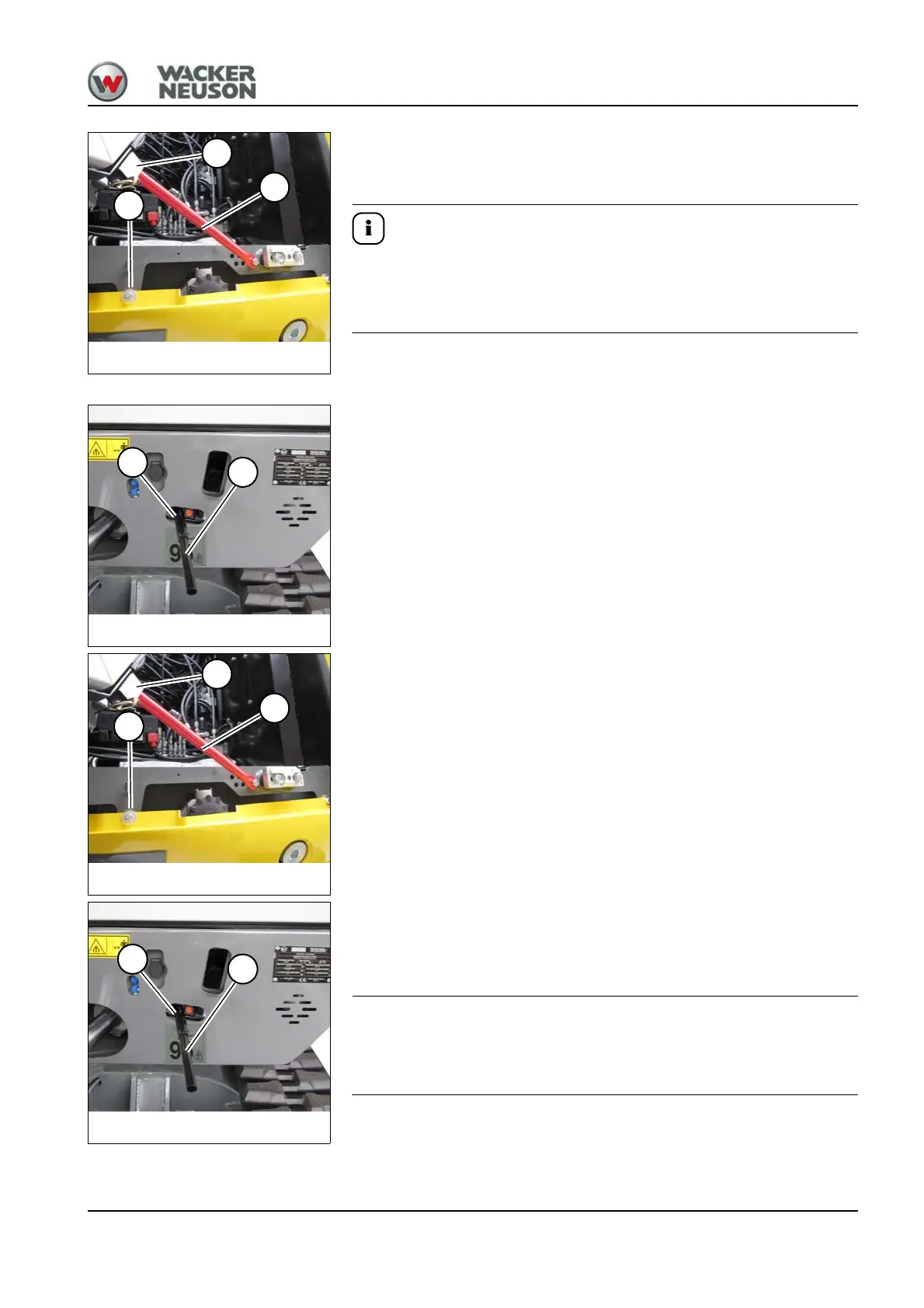

Fig. 227
G
F
H
Fig. 228
C
D
Fig. 229
G
F
H
Fig. 230
C
D
