4. Loosen screw B.
5. Fit tilt rod C onto valve D. The tilt rod is located in the engine
compartment.
6. Turn tilt rod C clockwise.
7. Insert tilt rod C onto guide E and pump as far as it will go.
➥ The cabin is raised as far as the pump will go.
8. Place yourself beside the machine and pull the handhold of the cabin
until the cabin is completely tilted beyond the center of motion.
➥ The cabin is secured with a safety cable.

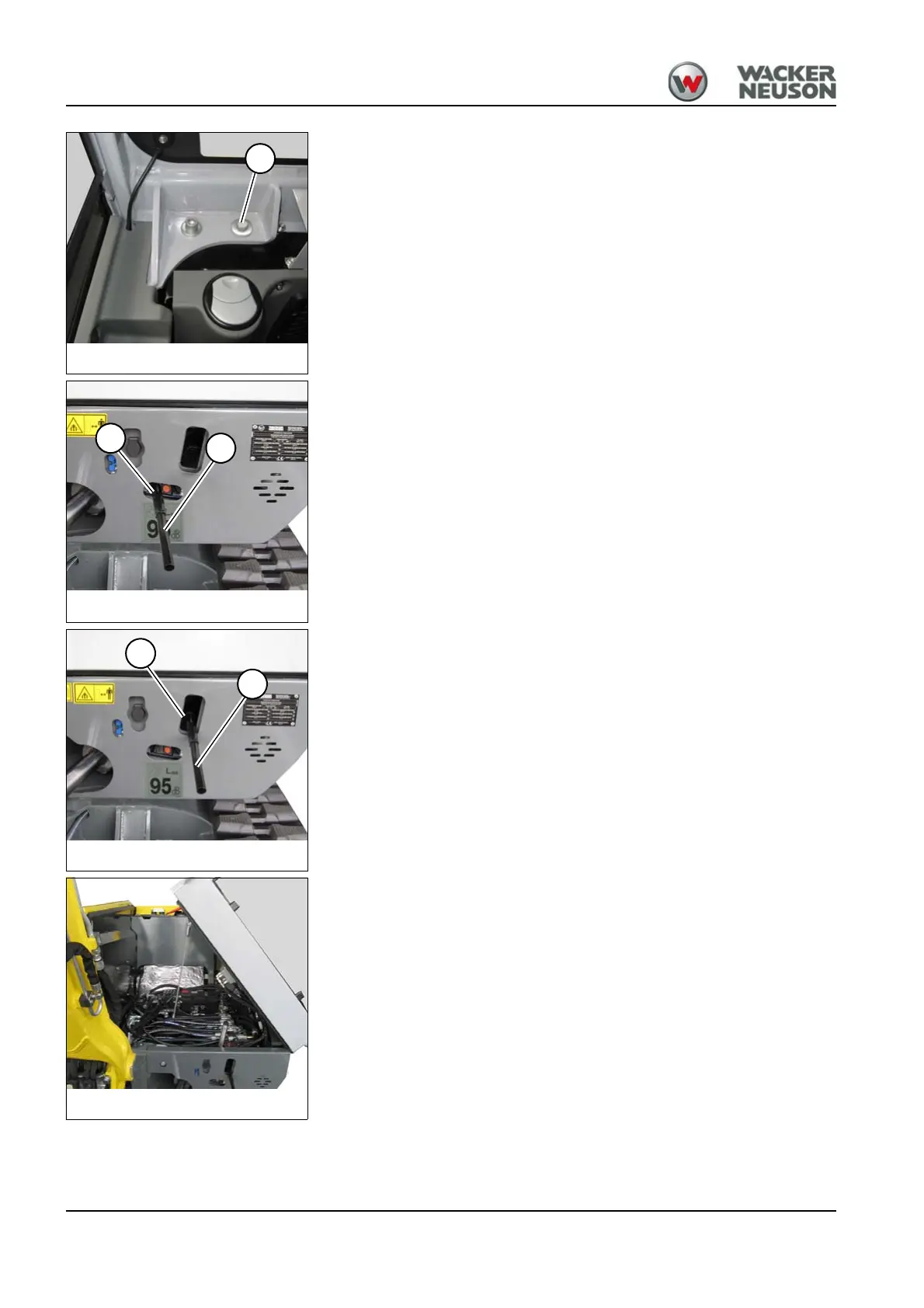

Fig. 223
B
Fig. 224
C
D
Fig. 225
C
E
Fig. 226
