SERVICING AND INSPECTION
198

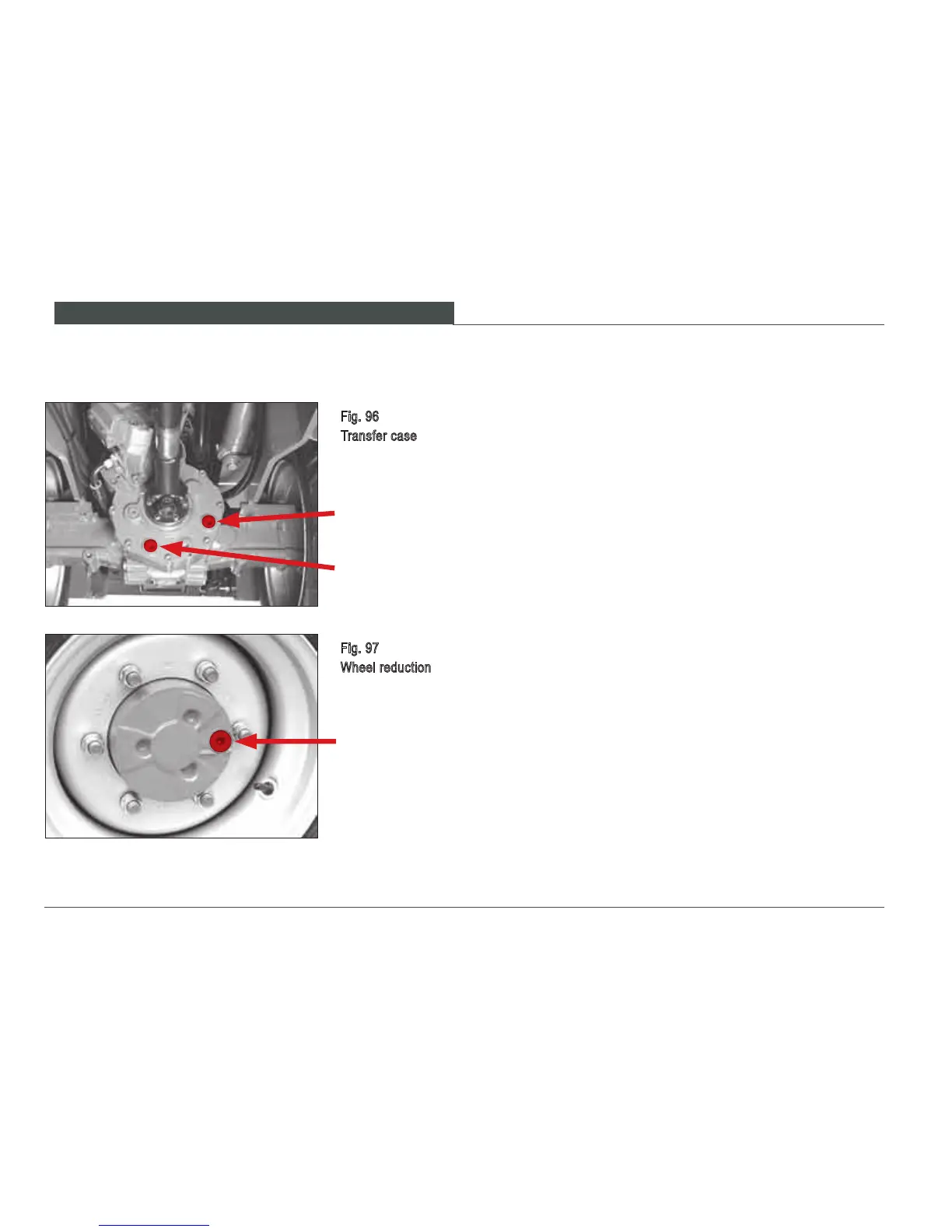

Fig. 96
Transfer case
c
d
Fig. 97
Wheel reduction
e
Stop the loader on a horizontal surface and set the park-
1.
ing brake.
Lower the loader lift arms and attachment to the ground
2.
or work surface.
Stop the engine.3.
Remove the hex socket screws items a, c, e (Fig.
4.
95/96/97). For the wheel reduction gears raise the wheel
with a jack rst and turn it so that the hex socket screw
Item e (Fig. 97) is horizontal.
The transmission oil must be at or below the bottom
5.
edge of the ller neck.
If necessary, add transmission oil.6.
Replace the hex socket screws items a, c, e (Fig.
7.
95/96/97).
