DesCRIpTION Of The INDICATOR, WARNING AND CONTROl elemeNTs
55
WL50

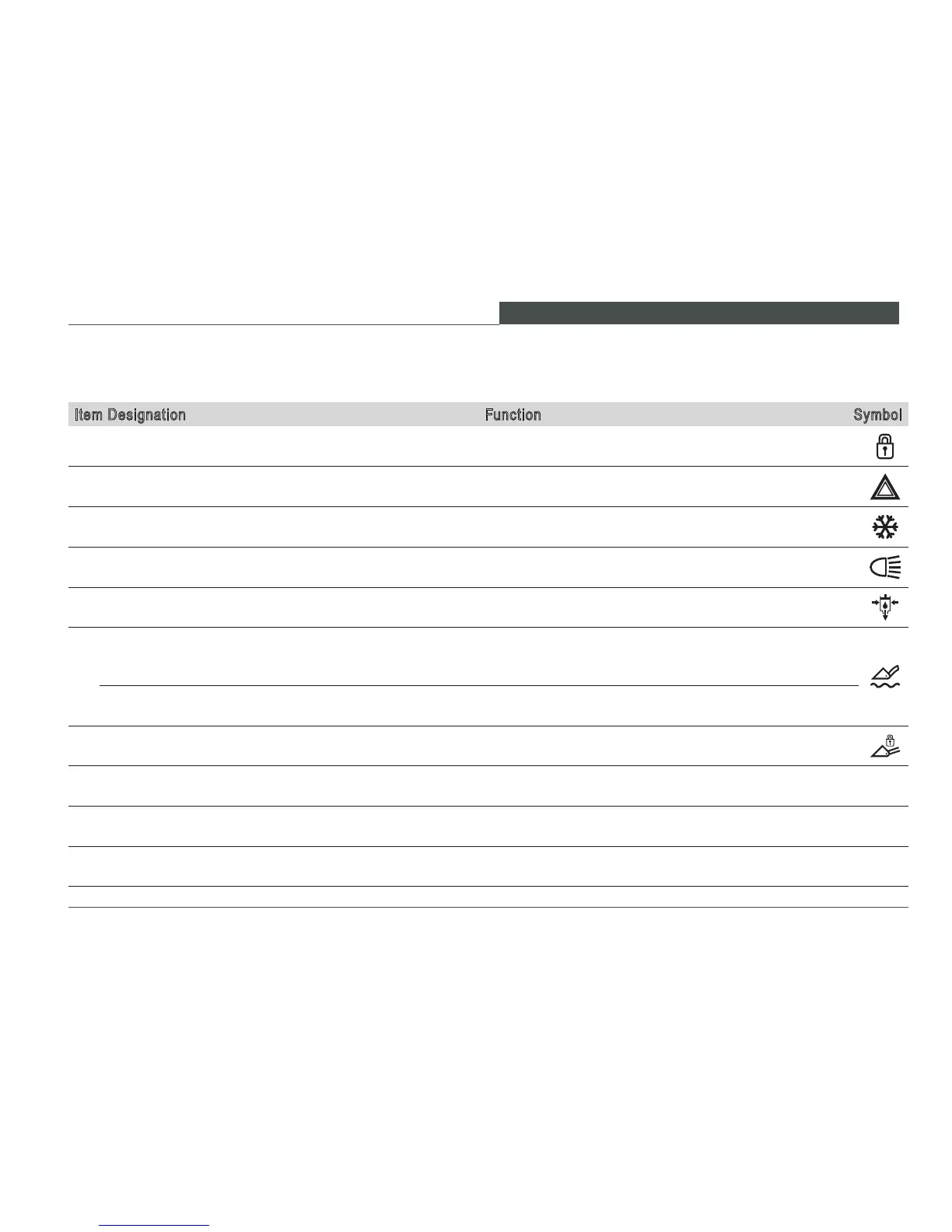

Item Designation Function Symbol
1 No function Available for optional equipment
2 Rocker switch for hazard warning lights Switches hazard warning lights on/off
3 Rocker switch, air conditioning system
Switches the air conditioning system on/off
(optional equipment)
4 Rocker switch, illumination system Switches the lights for street driving on/off
5 Rocker switch, pressure relief for optional hydraulics Switch to relieve pressure on the optional hydraulics
6
Rocker switch, oat position / emergency lowering of the
loader lift arms (needed if the loader is equipped with
electrically unlockable lowering brake valves)
Switches on/off the oat position of the loader lift arms
for loaders with electrically unlockable lowering brake
valves
Rocker switch, special equipment for load swing damp-
ening (second switch level)
On/off switch for the load-swing dampening
7 Rocker switch, loader lift arms arrest Switches the loader lift arms arrest on/off
8 No function Available for optional equipment
9 No function Available for optional equipment
10 No function Available for optional equipment
