OPERATING AND OPERATION
96
If the valve lever is set at »Hydraulic locking mechanism«,
you can actuate the hydraulic locking mechanism via the
control lever for the optional hydraulics Item Z (Fig. 41):
Move the control lever for the optional hydraulics back-•
wards (L):
The tool attachment is unlocked. –
Move the control lever for the optional hydraulics for-
•
wards (R):
The tool attachment is unlocked. –
If the valve lever is set to »Hydraulic locking mechanism«,
you can actuate the loader lift arms‘s hydraulic connections
(Fig. 43) via the control lever for the optional hydraulics
Item Z (Fig. 41).
Move the control lever for the optional hydraulics back-•
wards:
The connection on the left is the pressure side, the one
–
on the right is for return ow.
Move the control lever for the optional hydraulics for-
•
wards:
The connection on the right is the pressure side, the
–
one on the left is for return ow.

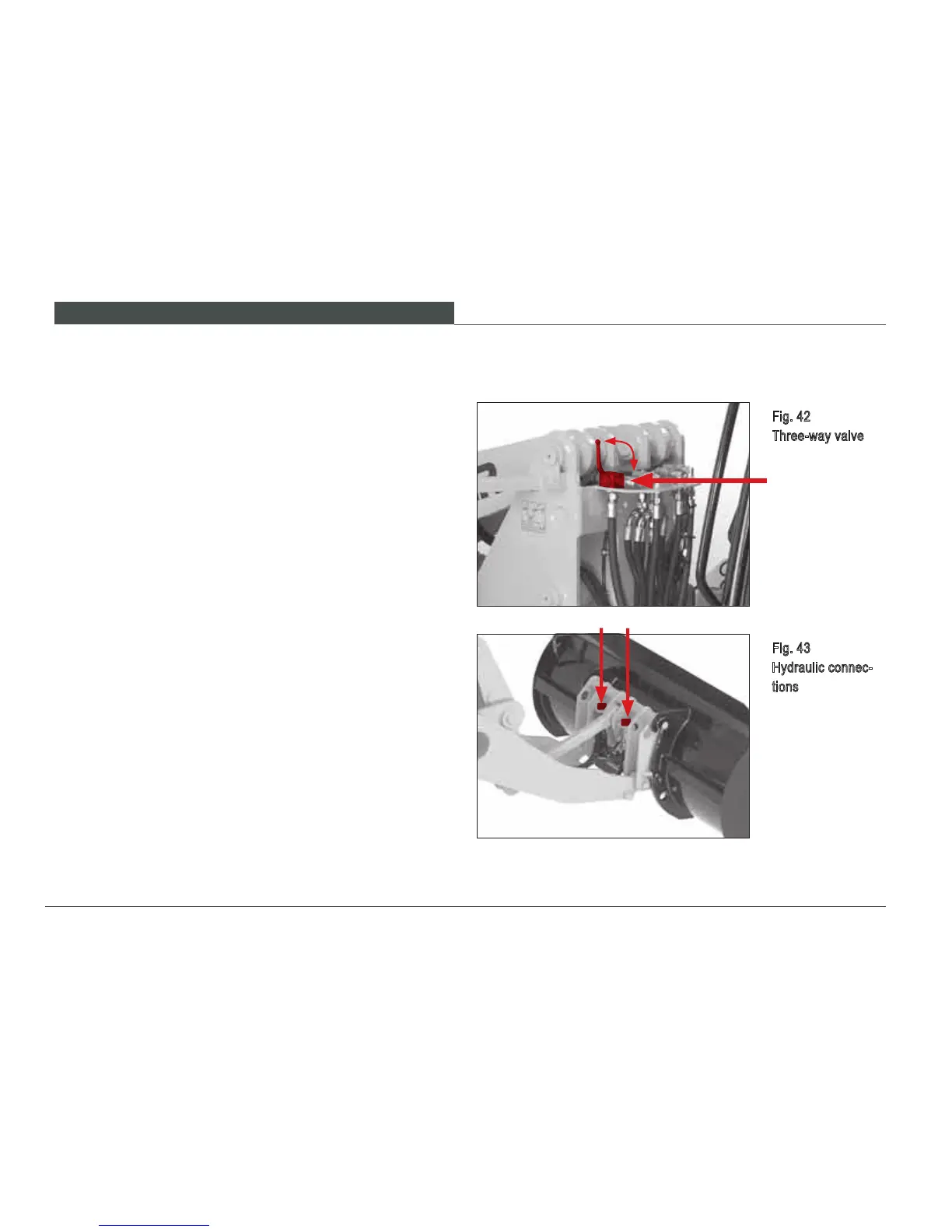

Fig. 42
Three-way valve
H
Fig. 43
Hydraulic connec-
tions
L R
