20 Device Description WAGO I/O System 750 XTR
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0
3.2 Connectors
3.2.1 Data Contacts/Local Bus
Communication between the fieldbus coupler/controller and the I/O modules as
well as the system supply of the I/O modules is carried out via the local bus. The
contacting for the local bus consists of 6 data contacts, which are available as
self-cleaning gold spring contacts.

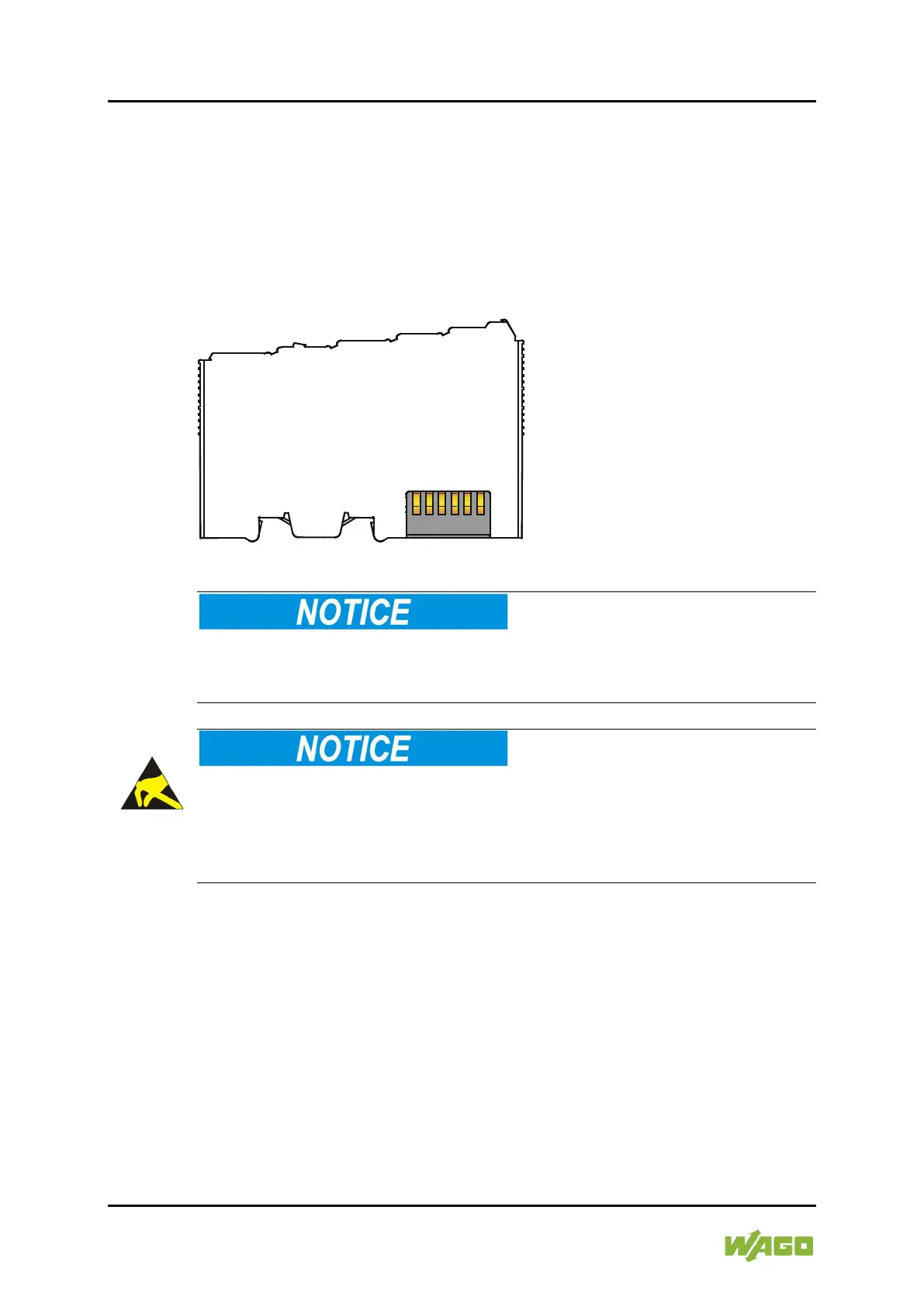

Figure 2: Data Contacts
Do not place the I/O modules on the gold spring contacts!
Do not place the I/O modules on the gold spring contacts in order to avoid soiling
or scratching!
Pay attention to potential equalization from the environment!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge. When handling the devices, please ensure that
environmental factors (personnel, work space and packaging) are properly
equalized. Do not touch any conducting parts, e.g., data contacts.
