WAGO 750 XTR - Table 56: 750-677, Common Menu Item; Figure 24: 750-677, General Menu Item; Settings of the Channel Pairs

76 Commissioning WAGO I/O System 750 XTR
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0

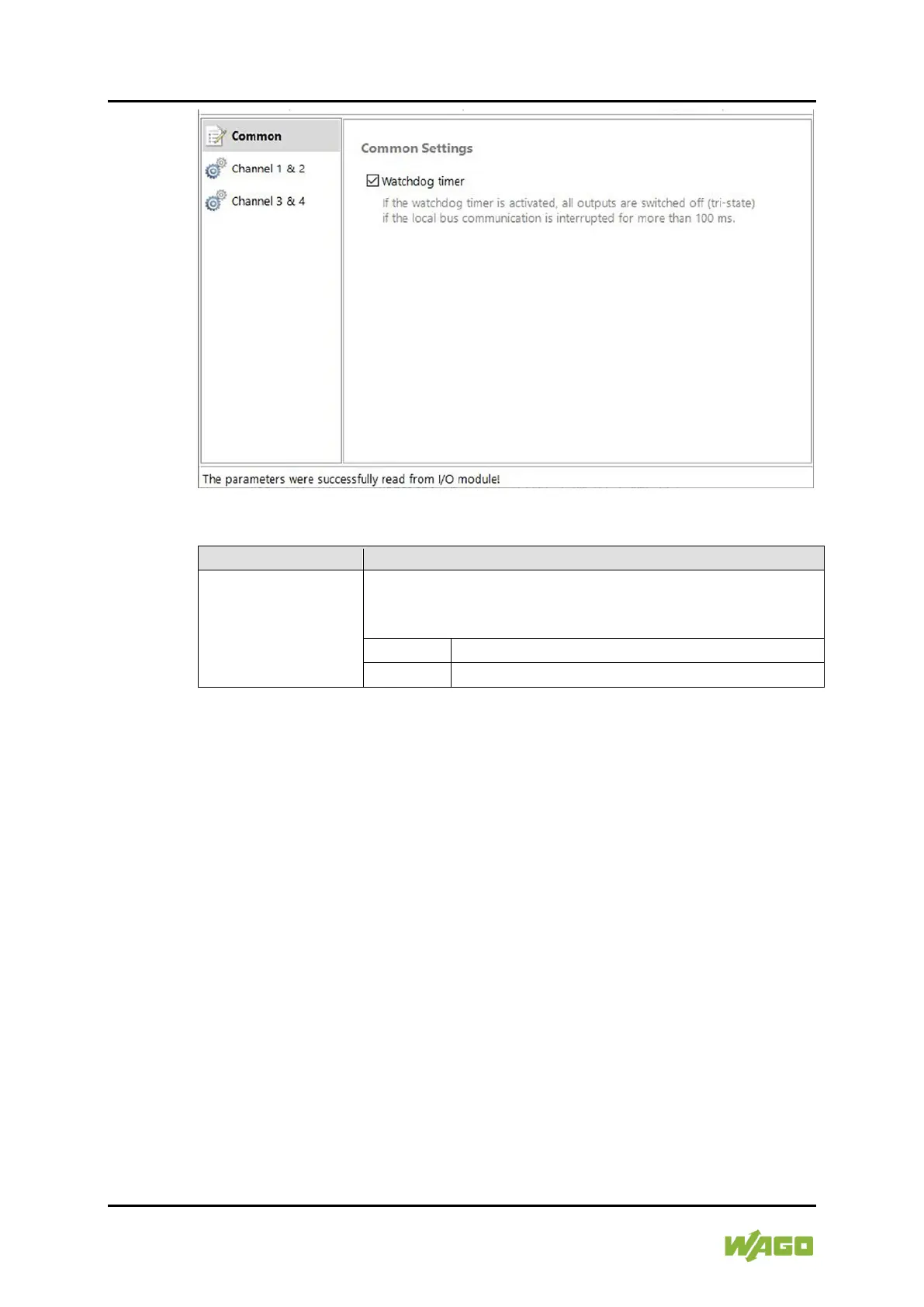

Figure 23: 750-677, “General” Menu Item
Table 56: 750-677, “Common” Menu Item
Parameter
Setting Option / Description
Watchdog timer
After a communication interruption of the local bus of more
than 100 ms, all four outputs are switched to high-
impedance (tri-state).

*)
Watchdog timer enabled

Watchdog timer disabled
*)
Factory default
8.1.3.2 Settings of the Channel Pairs
The [Channel 1 & 2] and [Channel 3 & 4] menu item contain the parameter
settings for the selected channel pair.
The settings are partly dependent on the set or selected operating mode of the
individual channels.
