Figure 26: 750-677, “Channels X & Y” Menu Item, Selecting the Operating Mode (Example 3)
Example 4: In this example, the complex operating mode “PWM Frq-Cnt” is set
for the second channel pair (channels 3 & 4).
Complex Operating Modes
With the complex operating modes, no different operating modes can be selected
for the individual channels of the channel pair. The function of the corresponding
output is predefined.

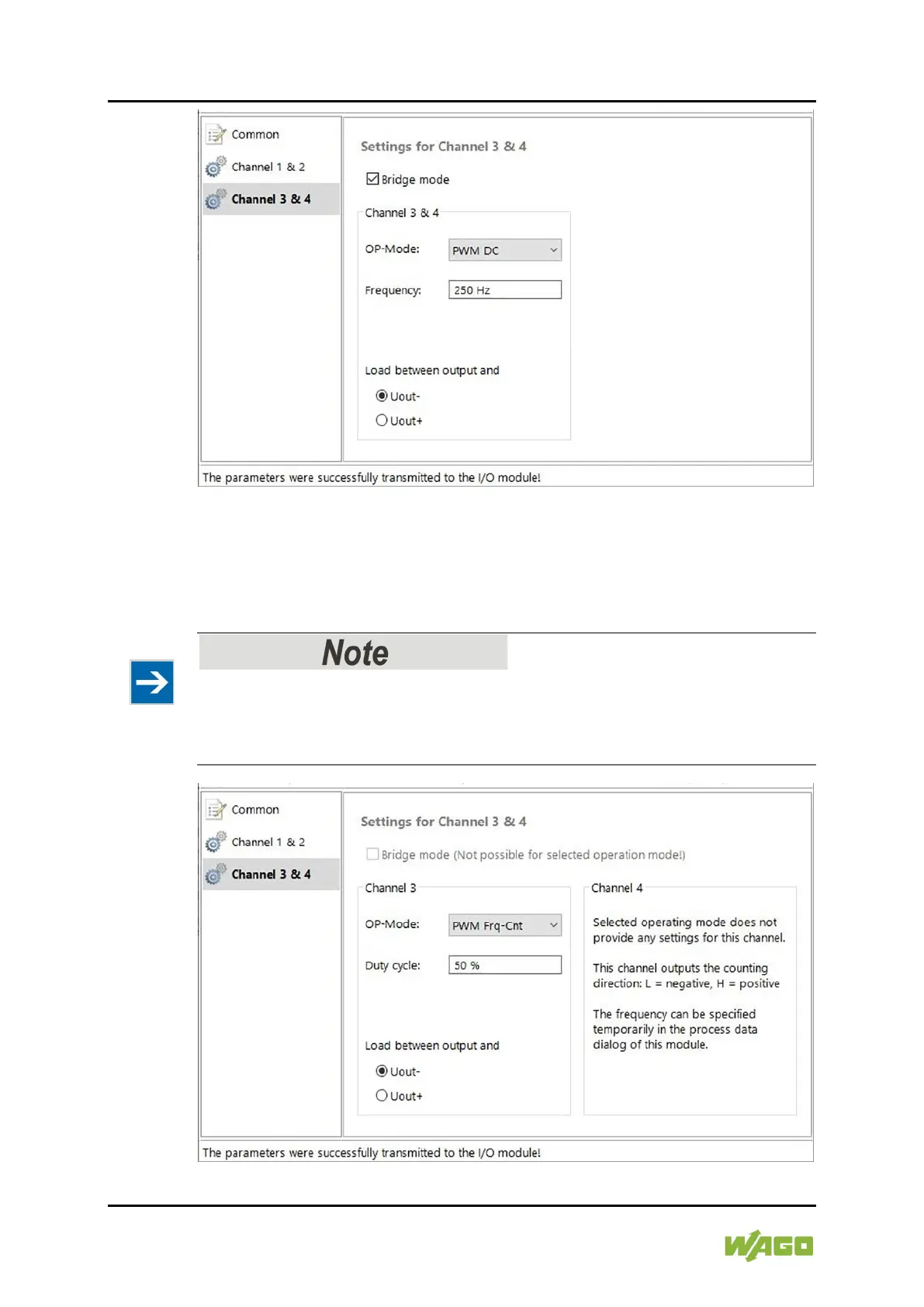

Figure 27: 750-677, “Channels X & Y” Menu Item, Selecting the Operating Mode (Example 4)
