24 Device Description WAGO I/O System 750 XTR
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0
3.3 Display Elements

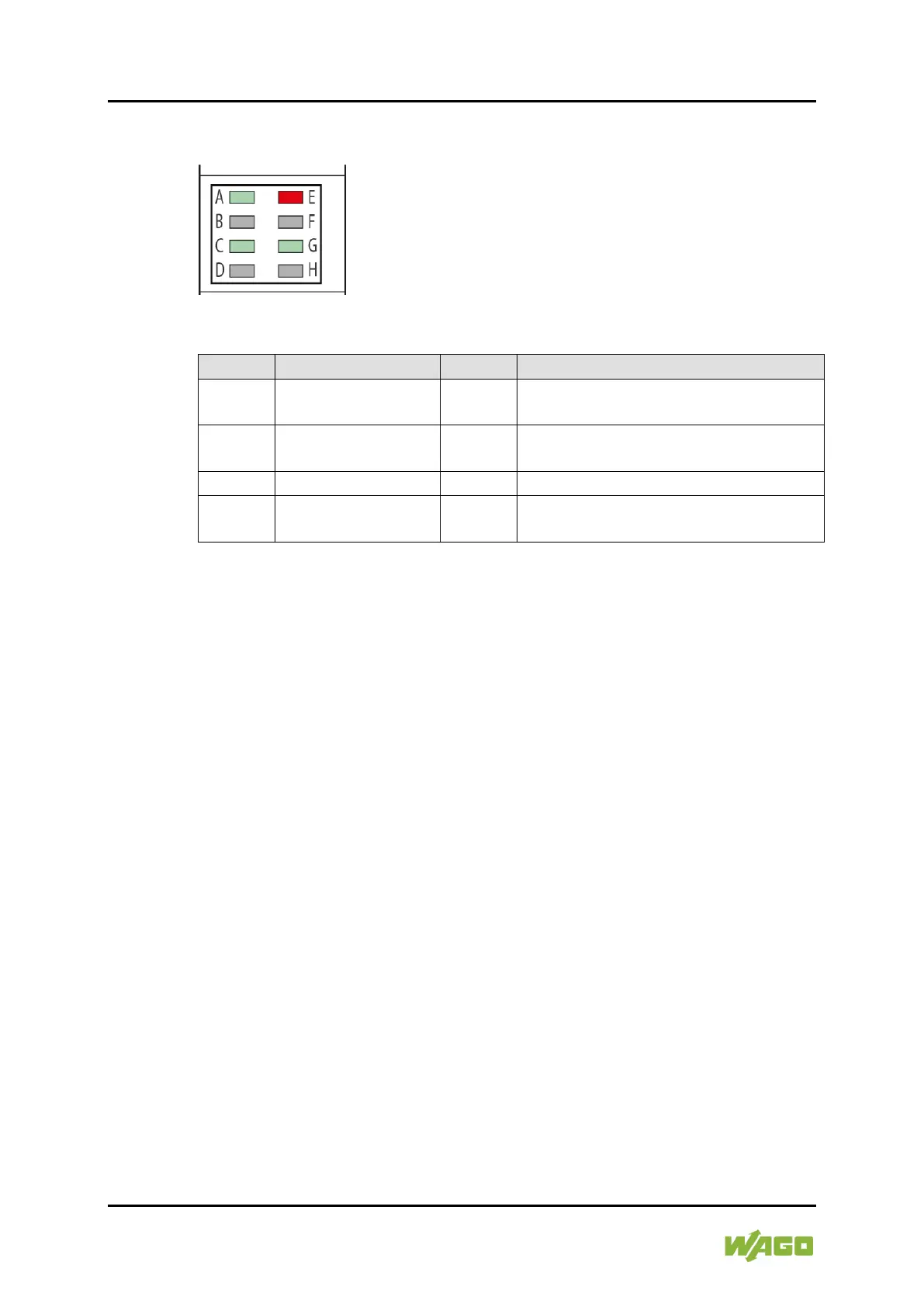

Figure 5: Display Elements
Table 6: Legend for Figure “Display Elements”
Channel
Designation
LED
Description
-
Device status (local
bus)
A
Status indication of operational
readiness/ local bus communication
1 + 2
Channel status
(channels 1 and 2)
C Enable signaling channel 1 and 2
1 … 4
Error
E
Error signaling
3 + 4
Channel status
(channels 3 and 4)
G Enable signaling channel 3 and 4
An interpretation of the signaled LED states can be found in Section
"Diagnostics" > ... > "Diagnostics via Display Elements".
