86 Commissioning WAGO I/O System 750 XTR
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0
8.3 Configuration and Parameterization via GSD File
8.3.1 Configuration 750-677/040-000 (4PWM 24 VDC 0.2A XTR)
8.3.1.1 Fieldbus Coupler PROFIBUS DP 750-333/040-000
When using the PROFIBUS-DP fieldbus device 750-333/040-000, the process
image size is configured by selecting the corresponding GSD entry.
Table 59: PROFIBUS DP Configuration
GSD Entry
PA length/
[Byte]
Data type
Inst.
Module
Sub
module
E
A
75x-677 4PWM 24V DC 0.2A
n/a
12
12
{UINT8, INT16}
4
8.3.2 Parameterization 750-677/040-000 (4PWM 24 VDC 0.2A
XTR)
There are dependencies between some parameters. Where necessary, these are
explained in more detail based on the GSD file by tooltips in the corresponding
configuration environment.
8.3.2.1 Fieldbus Coupler PROFIBUS DP 750-333/040-000
On the PROFIBUS DP 750-333/040-000 fieldbus devices, the I/O module can be
provided with the following operating parameters using the PROFIBUS GSD file
under the category “Device-Specific Parameters”:

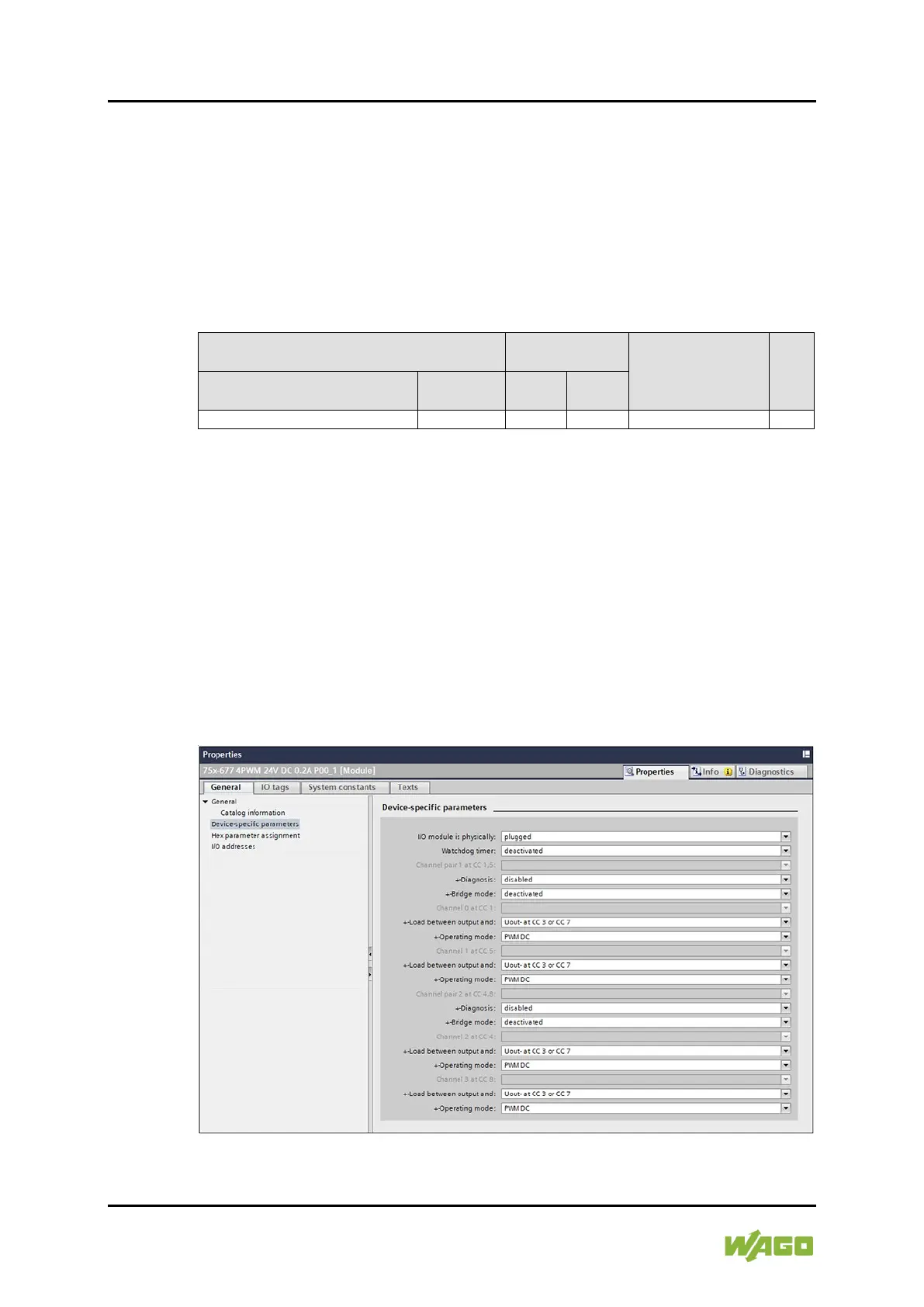

Figure 34: Example “Device-Specific Parameters” Dialog with PROFIBUS DP
