WAGO I/O System 750 XTR Commissioning 73
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0

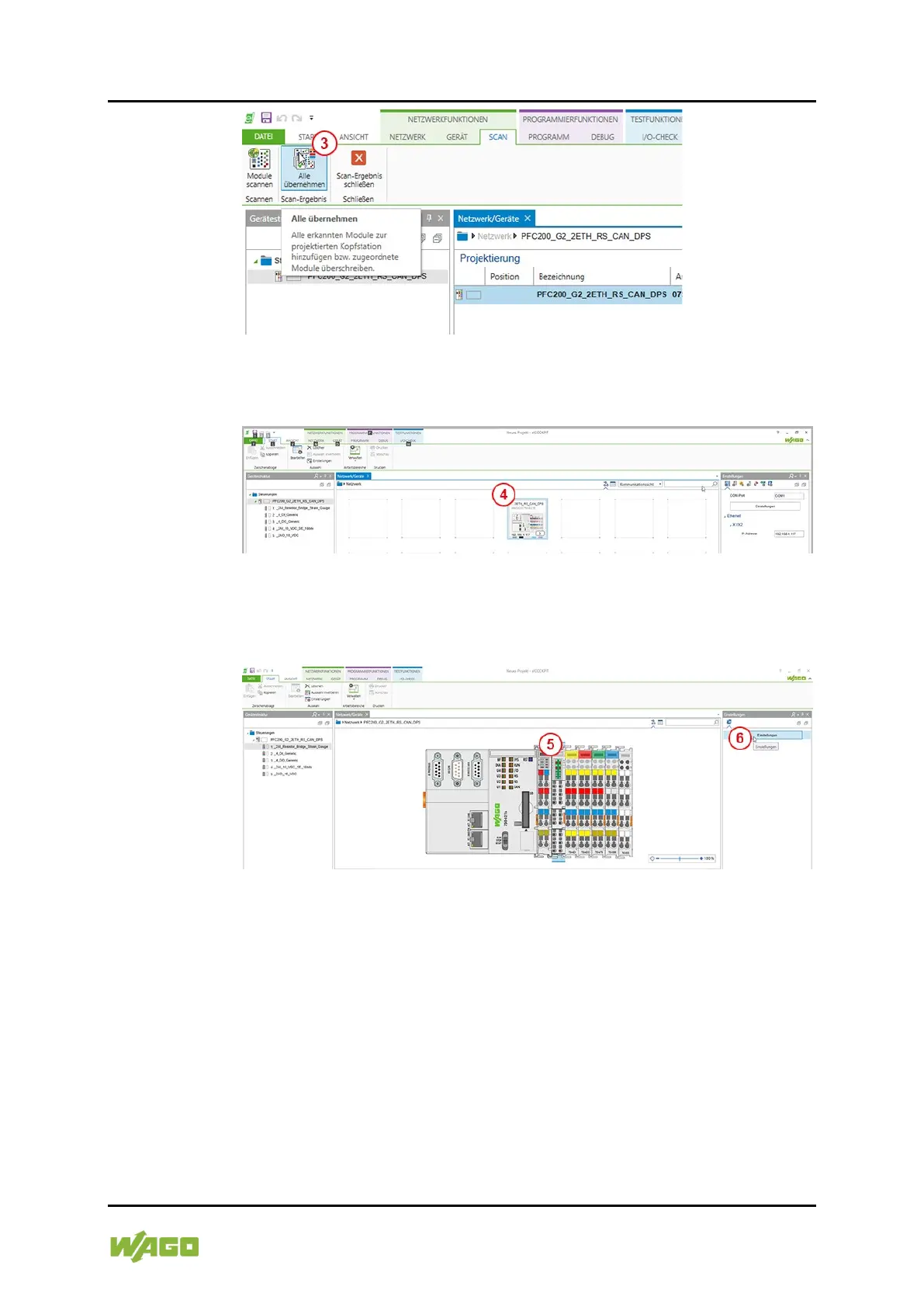

Figure 19: Apply the Network View (Example)
4. Double-click on the tile with the head station.
⇨ The device detail view appears.
Figure 20: Open Device View (Example)
5. Select the I/O module by clicking on it.
⇨ The module appears with a blue background, the options in the
“Settings” panel are adapted accordingly.
Figure 21: Module Settings (Example)
6. Click the [Settings] button.
⇨ A dialog window opens that asks you to establish the communication
link.
7. Click the [Connect for parameterization] button.
⇨ The parameterization dialog appears.
