WAGO I/O System 750 XTR Mounting 65
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0
6.2 Inserting and Removing Devices
Do not touch hot surfaces!
The surface of the housing can become hot during operation. If the device was
operated at high ambient temperatures, allow it to cool off before touching it.
Do not work when devices are energized!
High voltage can cause electric shock or burns.
Switch off all power to the device prior to performing any installation, repair or
maintenance work.
Temperature range applies to normal operation!
XTR I/O modules may be operated below −20 °C, but not wired and/or
reconnected.
6.2.1 Inserting the I/O Module
1. Position the I/O module in such a way that the groove and spring are
connected to the preceding and following components.

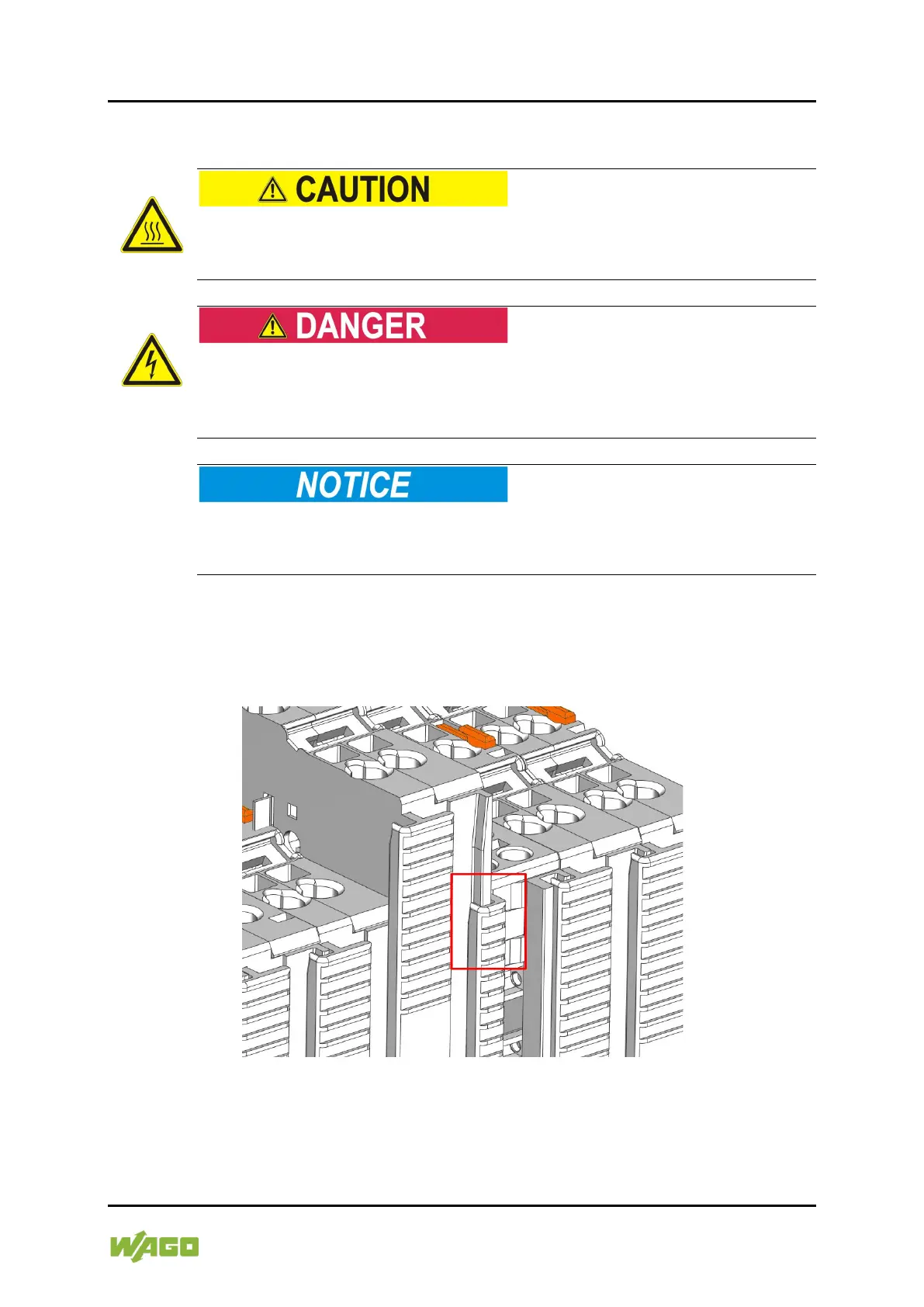

Figure 9: Inserting I/O Module (Example)
2. Press the I/O module into the assembly until the I/O module snaps into the
carrier rail.
