WAGO I/O System 750 XTR Connect Devices 69
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0

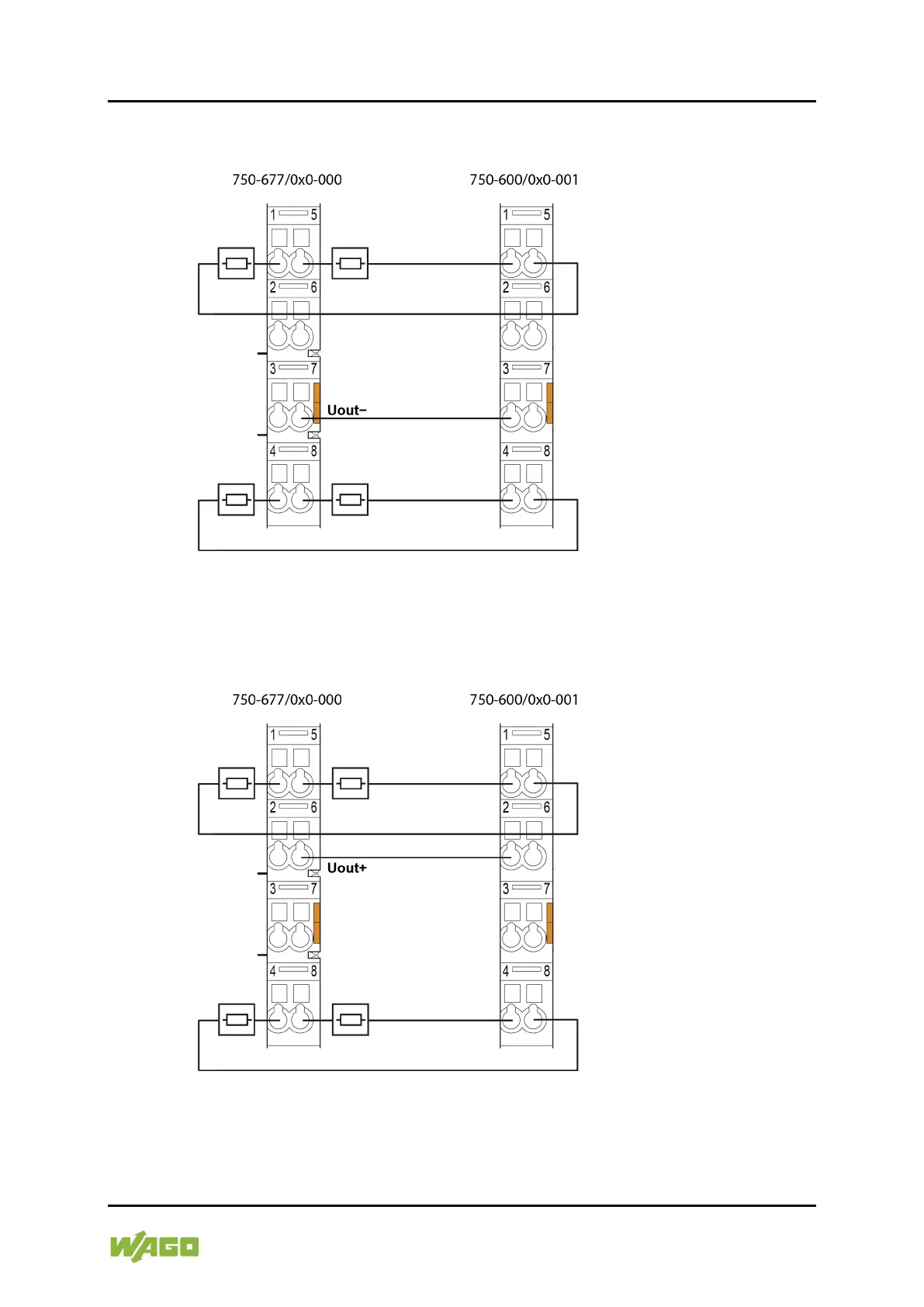

Example 2: All 4 outputs are configured as non-inverted ("load between output
and Uout−") and are switched against Uout−.
Figure 14: Example 2 ─ All Channels with Non-Inverted Configured Output.
Example 3: All 4 outputs are configured as inverted ("load between output and
Uout+") and are switched against Uout+.
Figure 15: Example 3 ─ All Channels with Inverted Configured Output.
