WAGO 750 XTR User Manual

WAGO I/O System 750 XTR Commissioning 75
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0

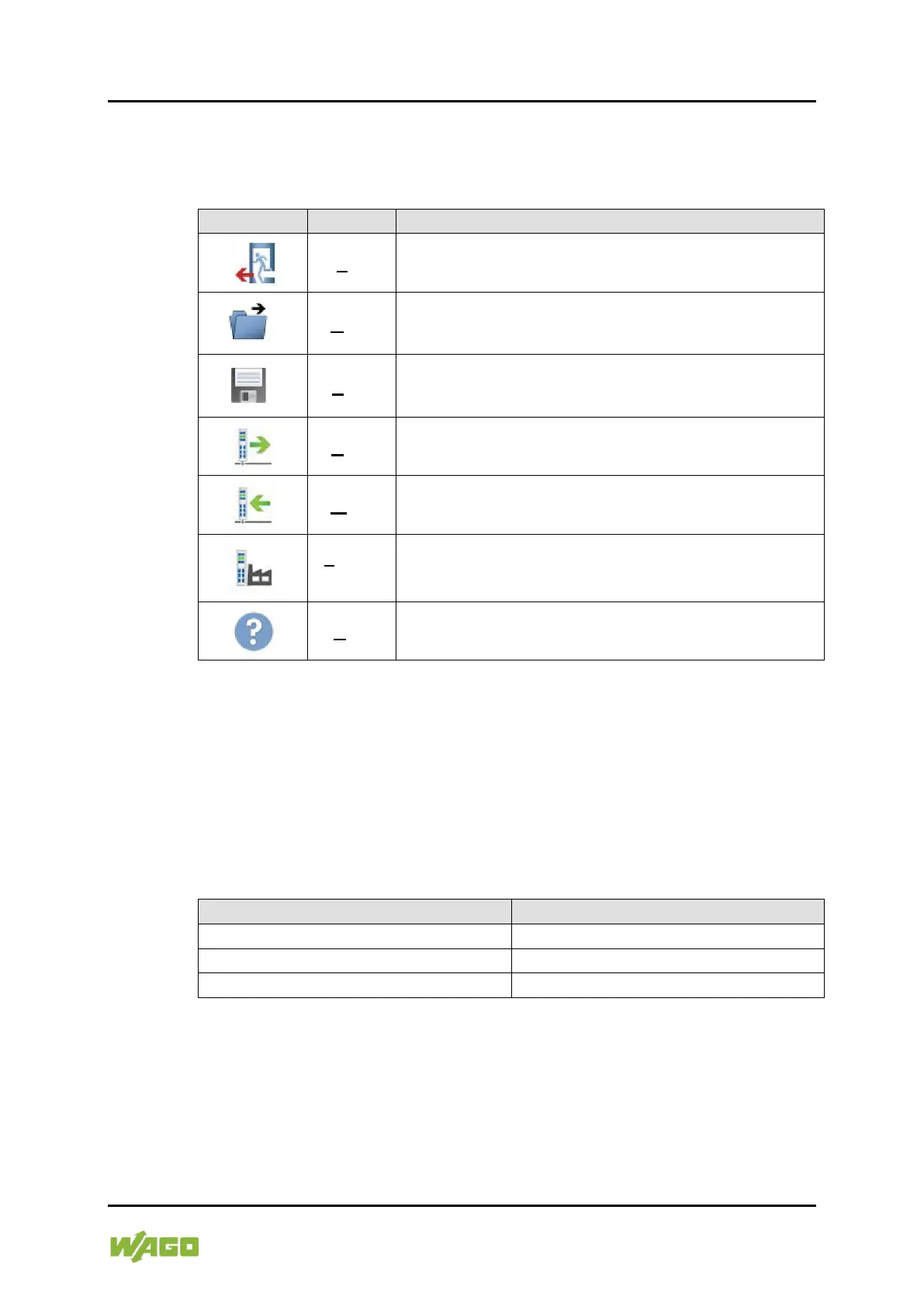

Buttons
Standard buttons (with standard functionality)
Table 54: Buttons
Button
Function
Explanation
[Exit]
Closes the parameterization dialog.
The connection to the I/O module is interrupted.
*)
[Open]
Opens the dialog for loading a saved parameter file.
*)
[Save]
Opens the dialog for saving parameterization
information in a parameter file.
[Read]
Reads the current parameterization from the I/O
module.
[Write]
Writes the modified parameters to the I/O module.
[Factory
Settings]
Resets all I/O module settings to factory settings
[Help]
Opens an I/O module help dialog.
*)
This function is available when you open the parameterization dialog via WAGO-I/O-CHECK.
When opening the dialog via e!COCKPIT, the functions are not relevant, since e!COCKPIT saves
the data within a project.
Menu
Via the menu items, you can select the application area view.
When a menu item is selected, the associated parameters are displayed in the
application area:
Table 55: Navigation via the Menu
Menu item
Description
[Common]
General, global settings
[Channels 1 & 2]
Settings for Channel Pair 1 & 2
[Channels 3 & 4]
Settings for Channel Pair 3 & 4
8.1.3.1 General Settings
The [Common] menu item contains the global settings that are the same for all
channels of the module.
