WAGO I/O System 750 XTR Connect Devices 67
750-677/040-000 4PWM 24 VDC 0.2A XTR
Manual
Version 1.0.0
7 Connect Devices
7.1 Connecting a Conductor to the CAGE CLAMP
®
The WAGO CAGE CLAMP
®
connection is appropriate for solid, stranded and
finely stranded conductors.
Only connect one conductor to each CAGE CLAMP
®
!
Only one conductor may be connected to each CAGE CLAMP
®
.
Do not connect more than one conductor at one single connection!
If more than one conductor must be routed to one connection, these must be
connected in an up-circuit wiring assembly, for example using WAGO feed-
through terminals.
1. For opening the CAGE CLAMP
®
insert the actuating tool into the opening
above the connection.
2. Insert the conductor into the corresponding connection opening.
3. For closing the CAGE CLAMP
®
simply remove the tool. The conductor is
now clamped firmly in place.

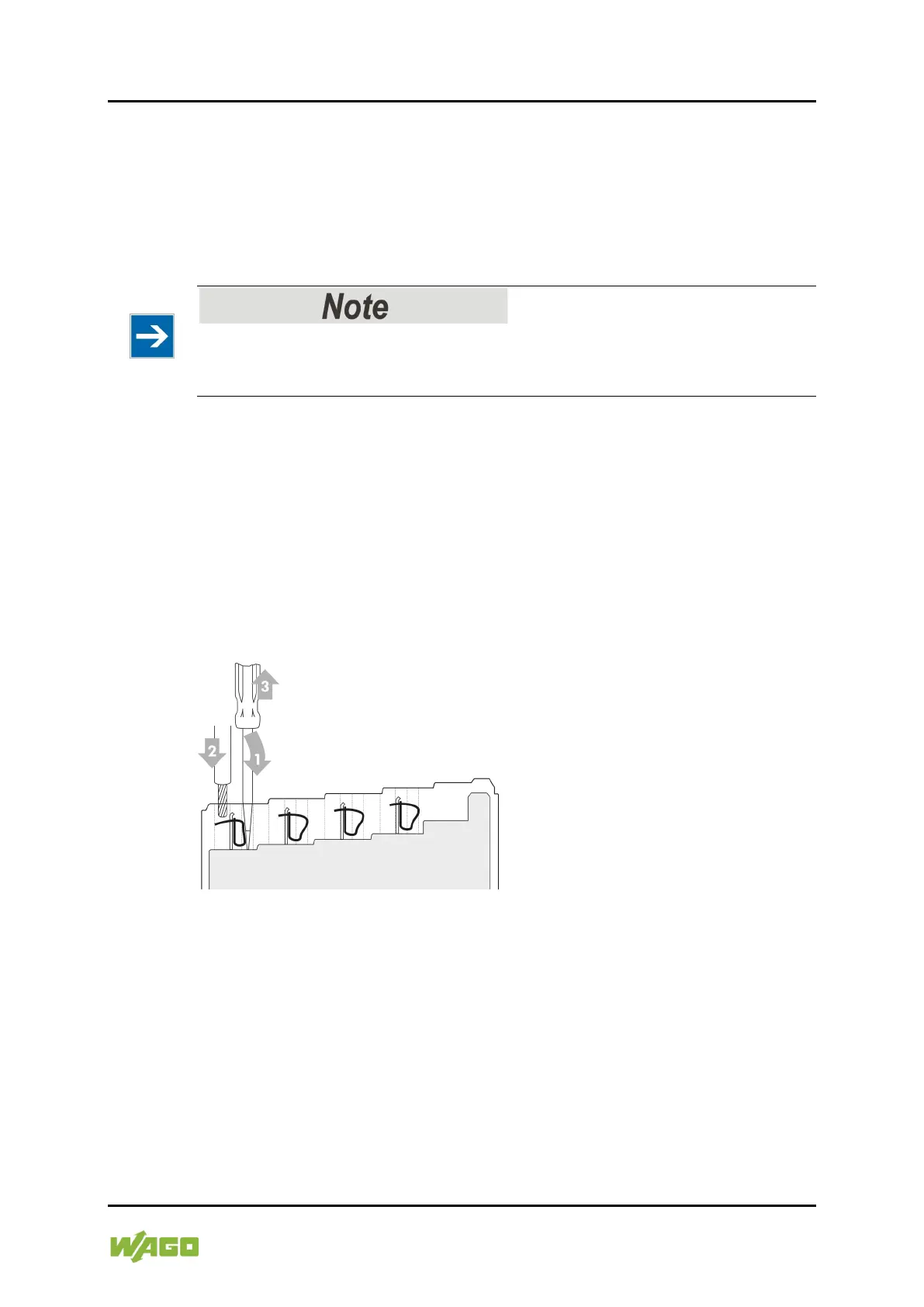

Figure 12: Connecting a Conductor to a CAGE CLAMP
®
