Waters 2475 - Page 152

To Next Page

To Previous Page

4-10 Maintenance Procedures

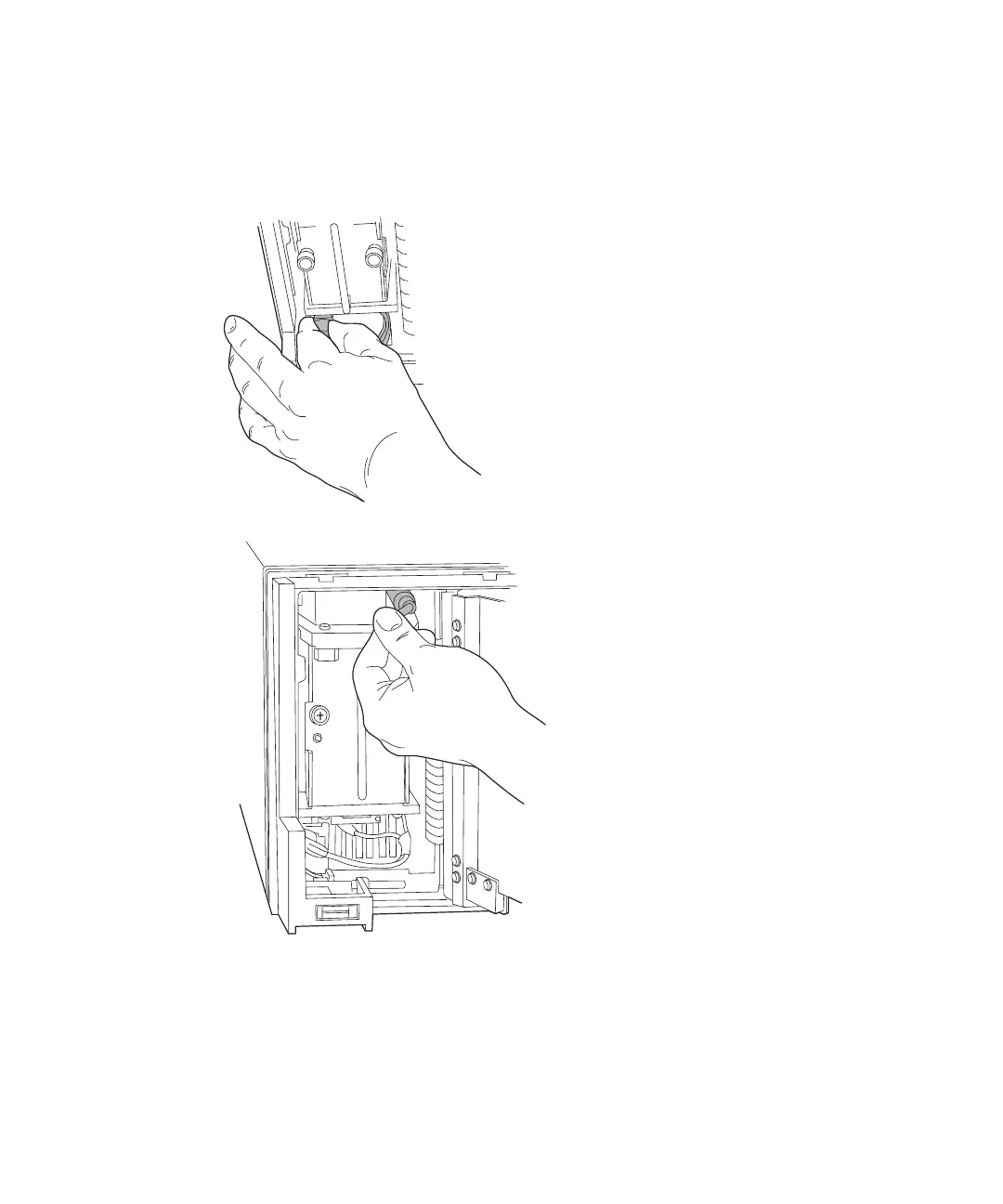

b. Pinch the locking mechanism on the bottom connector before pulling

it out.

Unplugging the lamp assembly
