1-10 Theory of Operation

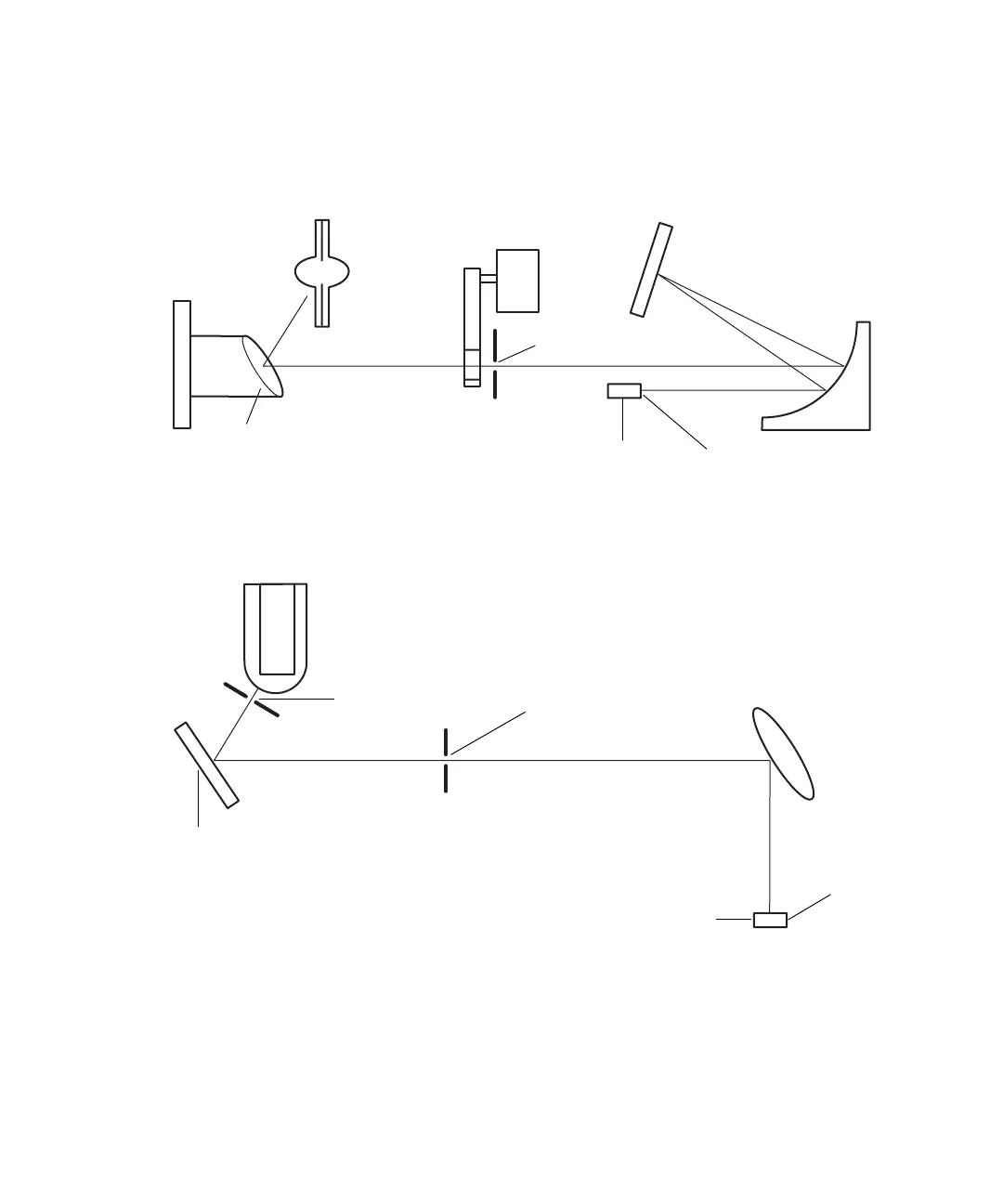

The following diagrams show the optics assembly light paths and components.
Excitation monochromator optics assembly
Emission monochromator optics assembly
Optics assembly light path
The detector demonstrates superior performance by employing several unique
design elements. Its novel flow cell design minimizes stray background light
Xenon lamp
Grating
Parabolic
mirror
Entrance slit
Filter
wheel
Flow cell
Ellipsoidal
mirror
Exit slit, excitation
monochromator
Photomultiplier tube
Entrance slit
Ellipsoidal
mirror
Flow cell
exit mask
Flow cell
Grating
Exit slit
