Waters 2475 - Page 62

2-26 Setting Up the Detector

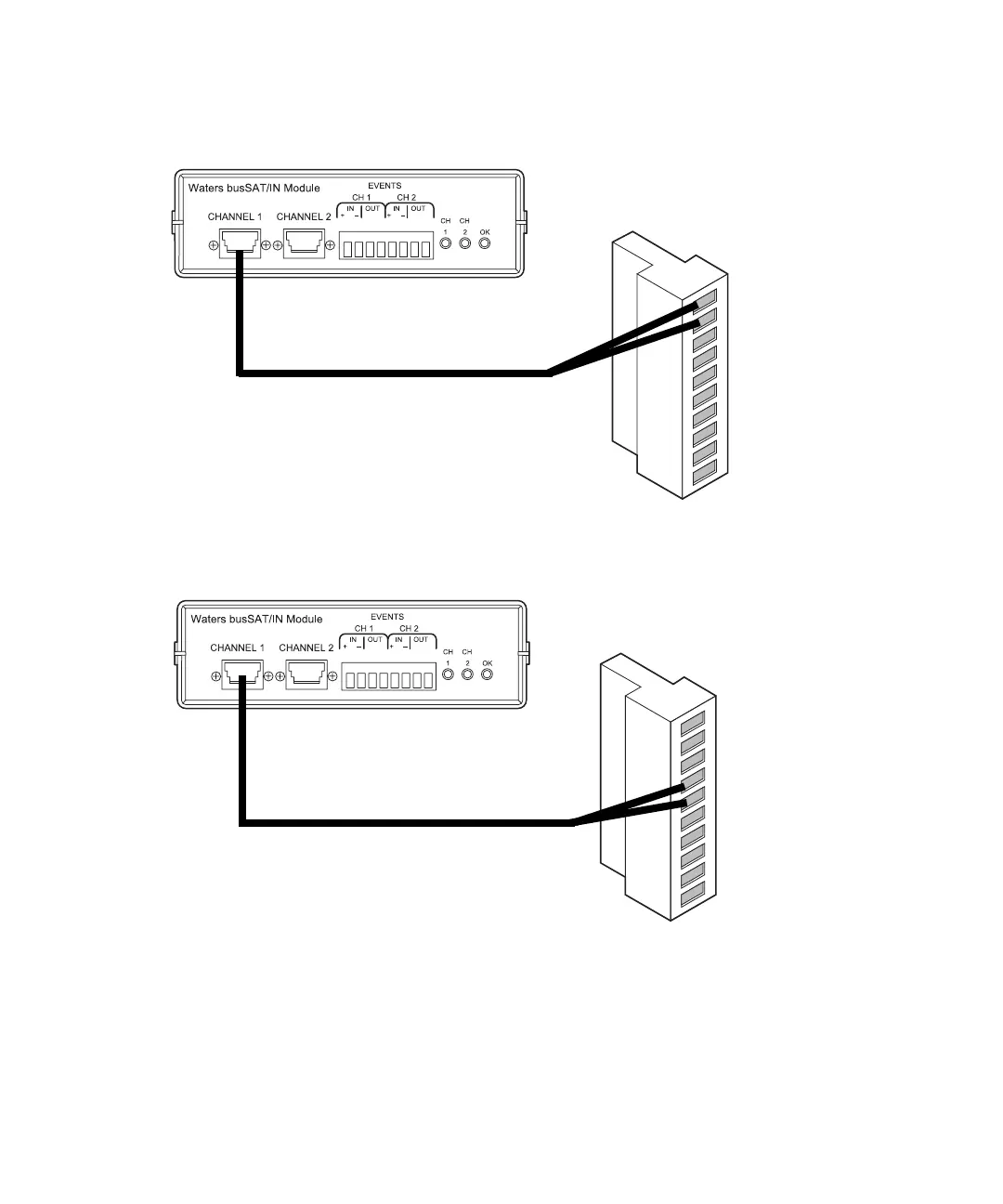

Connecting the Bus SAT/IN module channel 1 to the detector
Connecting the Bus SAT/IN module channel 2 to the detector
Bus SAT/IN module
2475 detector
B (inputs and outputs)
1
2
3
4
5
6
7
8
9
10
+
−
+
−
+
−
+
−
Detector out 1
Detector out 1
Ground
Detector out 2
Detector out 2
Switch 1
Switch 1
Ground
Switch 2
Switch 2
Bus SAT/IN module
2475 detector
B (inputs and outputs)
1
2
3
4
5
6
7
8
9
+
−
+
−
+
−
+
Detector out 1
Detector out 1
Ground
Detector out 2
Detector out 2
Switch 1
Switch 1
Ground
Switch 2
