Description
30 / 112 28.03.2022
Description Unit Value
Input frequency Hz 50 to 60
Output voltage VDC 12
Output current A 5.0

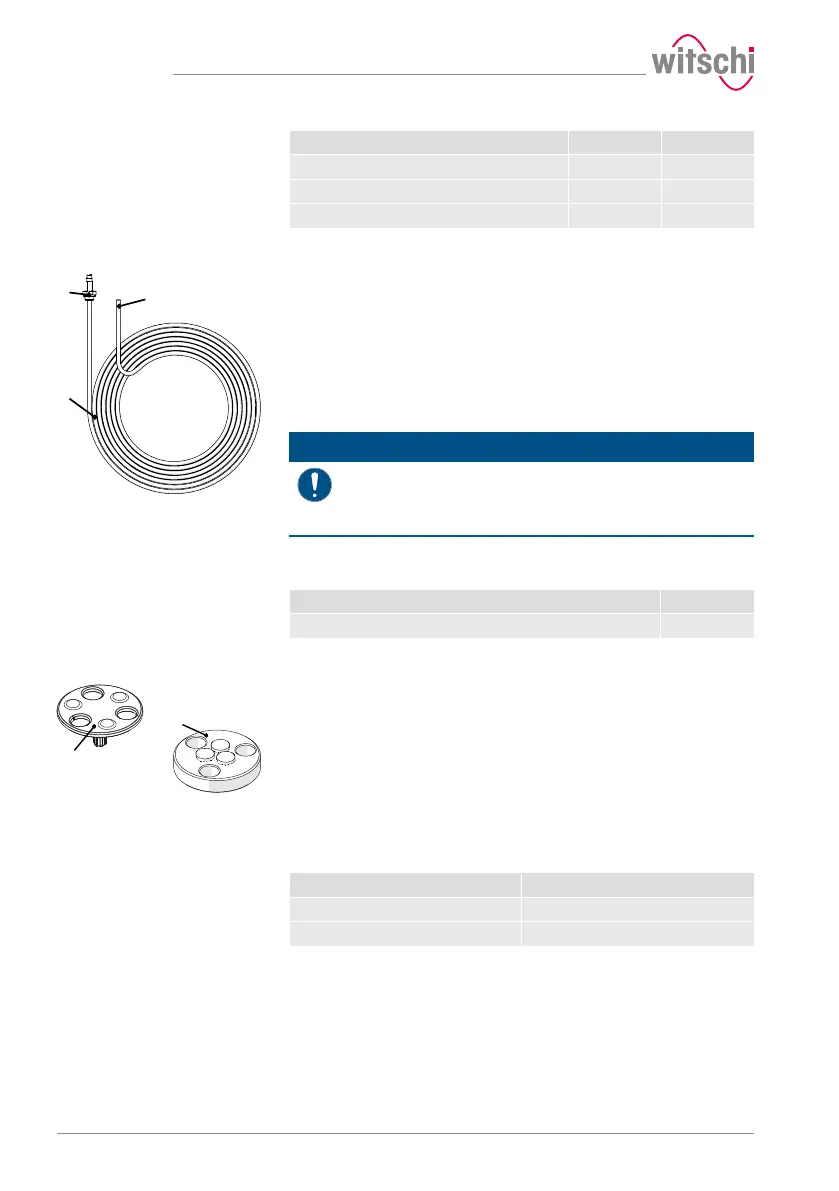

Compressed air hose
1
2
3
1 ARO 210 plug nipple (compressor side)
2 Open end (device side)
3 Compressed air hose
Item no.: 31.10.311
The compressed air hose is used to supply the ProofMaster with
compressed air. The open end 2 is connected to the compressed air
supply of the ProofMaster and the coupling 3 on the compressor.
Mandatory
The compressor connection must be compatible with the
coupling of the compressed air hose!
• If necessary, replace the coupling supplied with the ProofMaster
with a coupling compatible with the compressor.
The coupling supplied with the ProofMaster has the following
characteristics:
Description Type
Plug nipple ARO 210
Watch underlay
1
2
1 Scratch Protect
2 Watch support
Item no.: 31.24.702 (watch support) and 31.24.71.40 (Scratch Protect)
The standard support points are suitable for all watches >20 mm. The
Scratch Protect can also be used with these. This scratch protection
only lowers the watch once the sensor head is moved to the support
points. This prevents scratches when placing the watch.
Scratch Protect cannot be used on small watches because the danger
of falling is too great.
Diameter of the watch glass Watch underlay
Ø
Glass
>20mm Scratch Protect 1
Ø
Glass
<20mm Watch support 2
