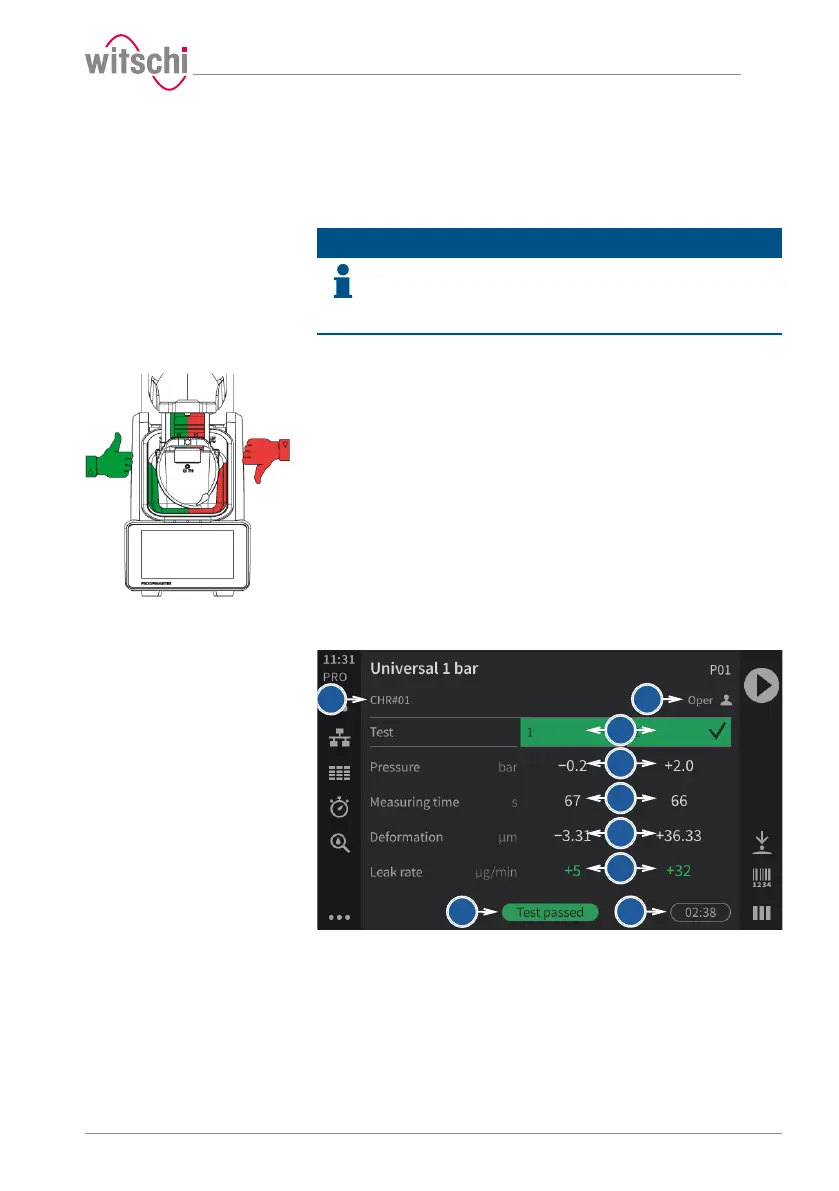

5.3 Measurement results
5.3.1 Displaying test results
Info
The only result of a leak test to be displayed is whether the
test is good or bad. However, it is also possible to enable
leak rate measurement.
See Creating a program (ProofMaster PRO) [}Page62].
Test area
When the bell cover is opened after a leak test, the test area is
illuminated green if the test result is good and red if the test result is
bad.
Display
Two display types are available for the test result. See Selecting the
results display [}Page51].
Numerical display
1
2
8
9
6
5
7
4
3
The numeric display provides the following information:
1 Test specimen prefix
2 Name of the operator (only with enabled identification, in the example
above Opera)
3 Progress and result of each test step
4 Pressure values of each test
5 Measuring times of each test
