Maintenance
232 Xerox
®
AltaLink
®
C80XX Series Multifunction Printer
User Guide

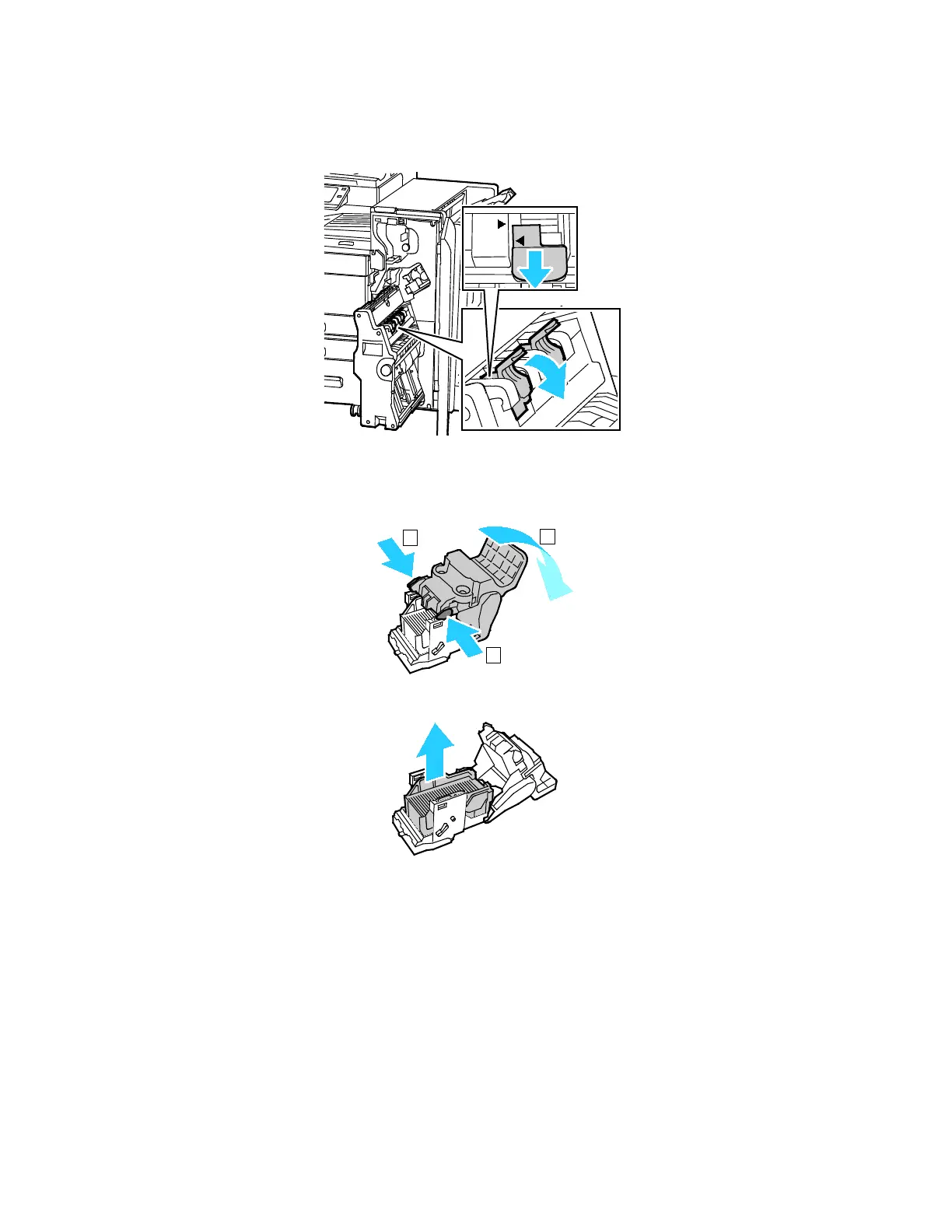

3. To remove a staple cartridge from the booklet maker, push down on the staple cartridge handle, as
shown, then pull the cartridge out and up.
4. T
urn over the staple cartridge.
5. To permit the staple cartridge handle to open out and away from the staple pack, press in the green
tabs, then pull back the handle.
6. T
o remove the staple pack, press the rear of the cartridge, then lift out the staple pack as shown.
