Xerox AltaLink C80 Series - Internal Parts

Getting Started
28 Xerox
®
AltaLink
®
C80XX Series Multifunction Printer
User Guide
Item Name Description
5 Status LED This light blinks blue or amber to indicate printer status.
Blue
• Blinks blue once to acknowledge a successful Authentication request.
• Blinks blue once slowly for a copy or print job initiated at the control
panel.
• Blinks blue twice slowly for fax or print job received from the network.
• Blinks blue rapidly while the printer is powering up, or to signal
detection of a Wi-Fi Direct connection request.
Amber
• Blinks amber to indicate an error condition or warning that requires
your attention. For example, an out-of-
toner condition, a paper jam, or
out of paper for the current job.
• Blinks amber to indicate a system error, which typically is associated
with an error code.
6 Notification Area
Notifications are displayed above the Apps area. To view the full
notification, touch the notification area. After you have reviewed the
information, touch X.
7 Interrupt Button This button pauses the current job to run a more urgent job.
Note: This option may be hidden from view. To enable Interrupt, refer to
the System Administrator Guide at www.xerox.com/office/ALC80XXdocs.
8
Pause Button
Use this button to pause the current job. The job pauses with the option
to resume printing or delete the job.
9 Language Button
The Language button allows you to set the language that appears
temporarily on the control panel display.
Note: This option may be hidden from view. For details, see the System
Administrator Guide at www.xerox.com/office/ALC80XXdocs.
10 Reset Use the Reset button to reset all the apps to their default settings.

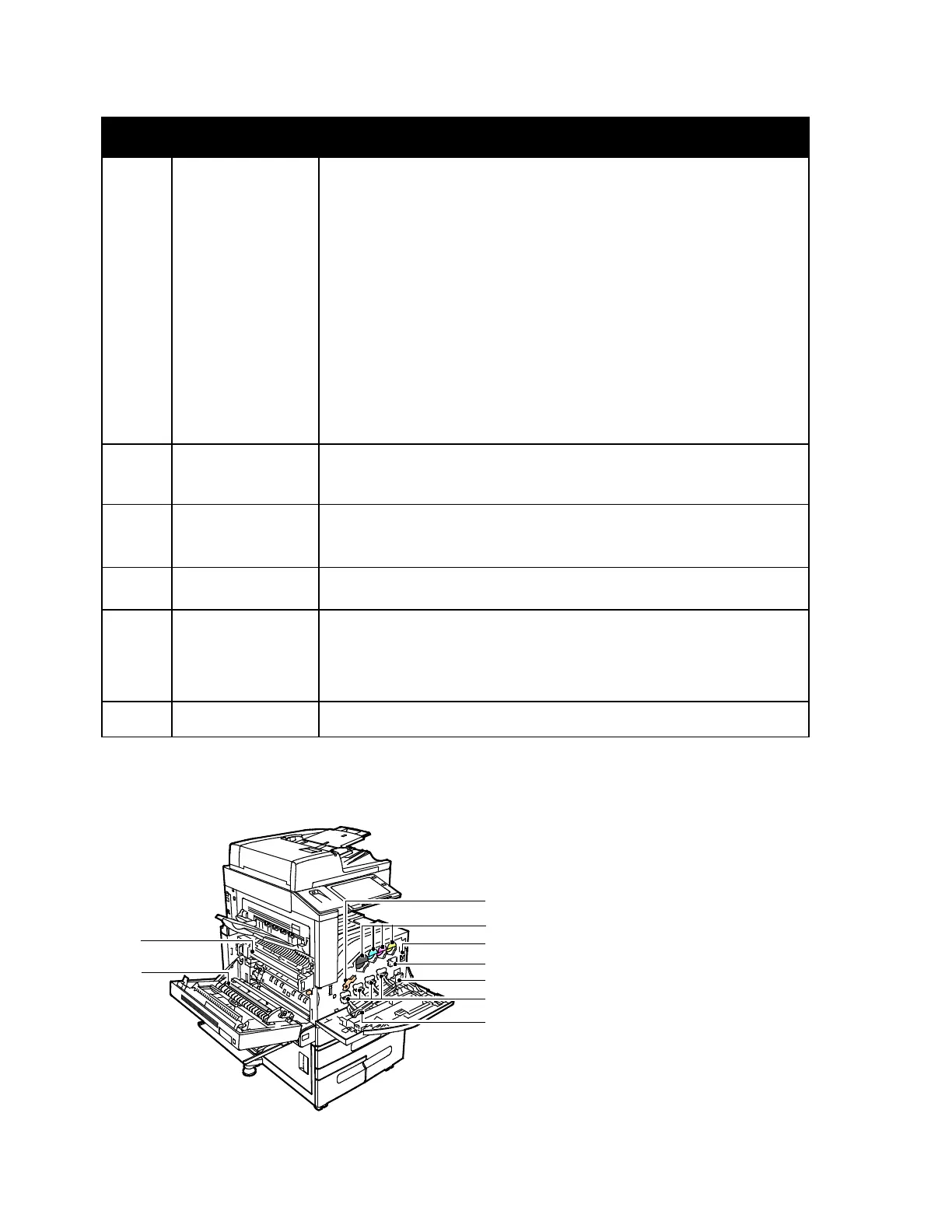

Internal Parts
1. Second Bias Transfer Roller
2. Fuser Assembly
3. Drum Cartridge Release Lever
4. Toner Cartridges
5. Main Power Switch
6. Transfer Belt Cleaner
7. Waste Container
8. Drum Cartridges
9. Drum Cartridge Cover
3
4
7
6
5
8
9
2
1
