Xerox WorkCentre 5021 Service Documentation

08/2012
6-94
WorkCentre 5021/5019
6.4.2.3
Initial Issue
General Procedures
6.4.2.3 Analog Monitor
Purpose
Monitors the A/D converted analog value of the sensor while each component is being oper-
ated.
• Range of values that can be displayed: 0 to 1099.
NOTE: For the analog value of 1000 to 1099, only the lower 3 digits are displayed.
NOTE: For more details on the Analog Monitor Code, refer to 6.3.3 in Chapter 6.
Procedure
1. Enter the CE Diag Mode.
2. Input the Chain-Link No. and press the [Start] button.
3. The current analog value is displayed.
• The analog value is refreshed once every 1/3 second.

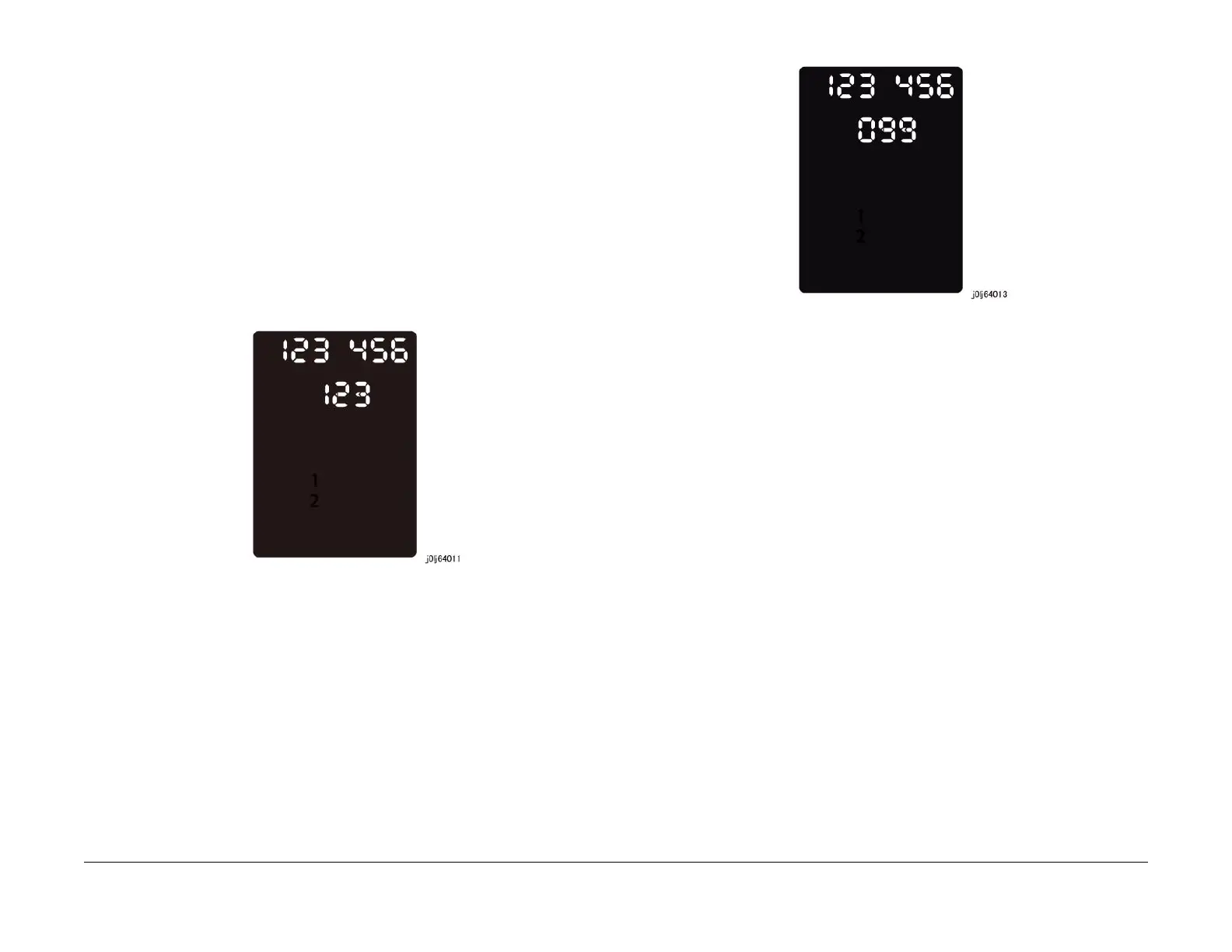

Figure 1 j0lj64011
• For the analog value of 1000 to 1099, only the lower 3 digits are displayed.
– Example.: 1099 is displayed as '099'.
Figure 2 j0lj64013
4. Pressing the [Stop] button causes the [End] to flash twice -> remain ON to indicate that
the process has completed.
5. Pressing the [Clear All] button returns you to the [Chain-Link Number Entry] screen.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
