Yamaha E40J - Page 165

6F65G11
7-16
9
8
7
6
5
4
3
2
1

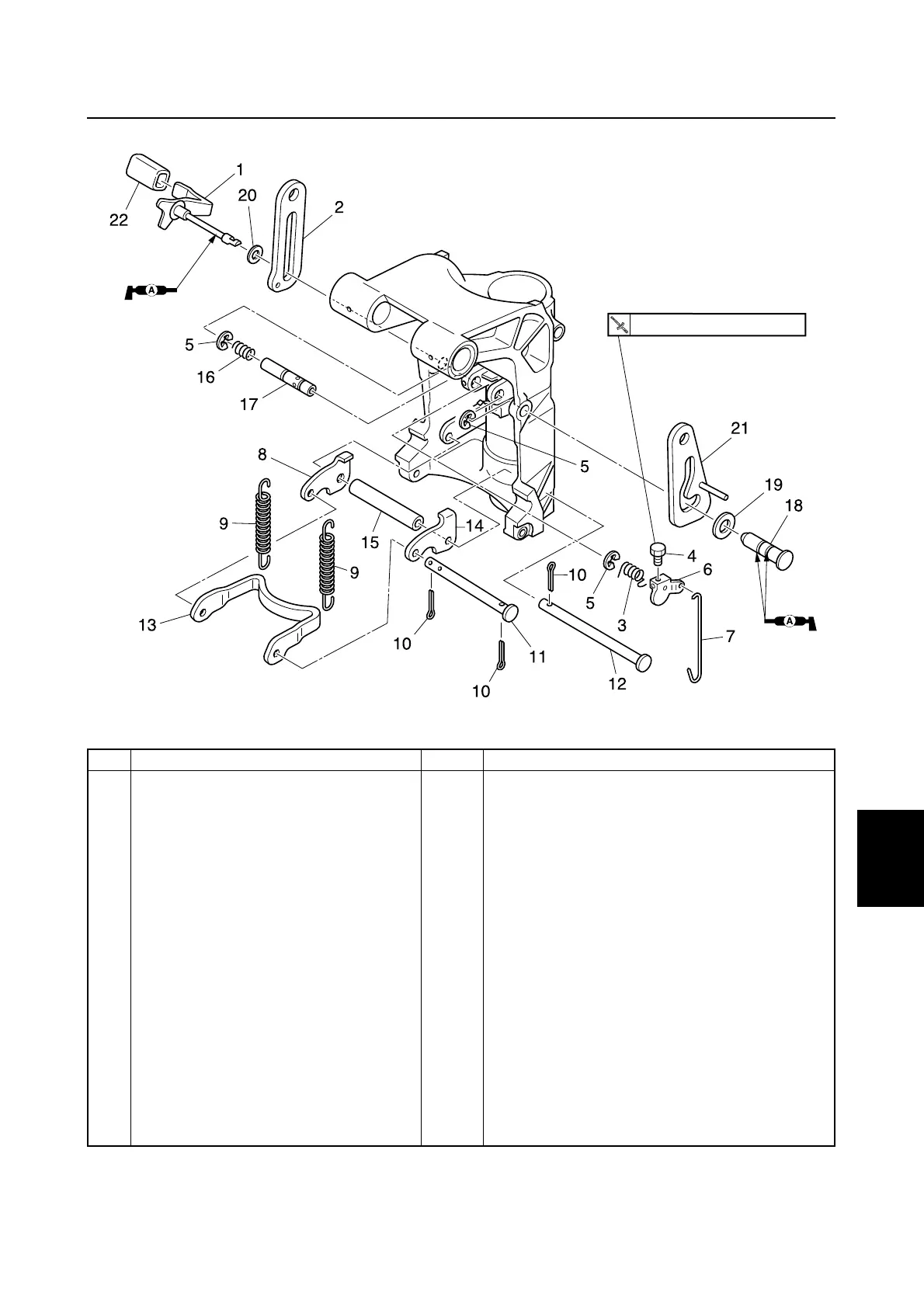

Clamp brackets, swivel bracket
6F67060E
4 N·m (0.4 kgf·m, 3.0 ft·lb)
No. Part name Q’ty Remarks
1 Tilt lock lever 1
2 Stopper plate (starboard side) 1
3 Spring 1
4 Bolt 1 M5 × 10 mm
5 Circlip 3
6 Tilt lever 1
7 Tilt lock rod 1
8 Tilt lock plate 1
9 Spring 2
10 Cotter pin 3
11 Pin 1
12 Pin 1
13 Tilt lock arm 1
14 Tilt lock plate 1
15 Collar 1
16 Spring 1
17 Stopper shaft 1
