GENERAL CHASSIS

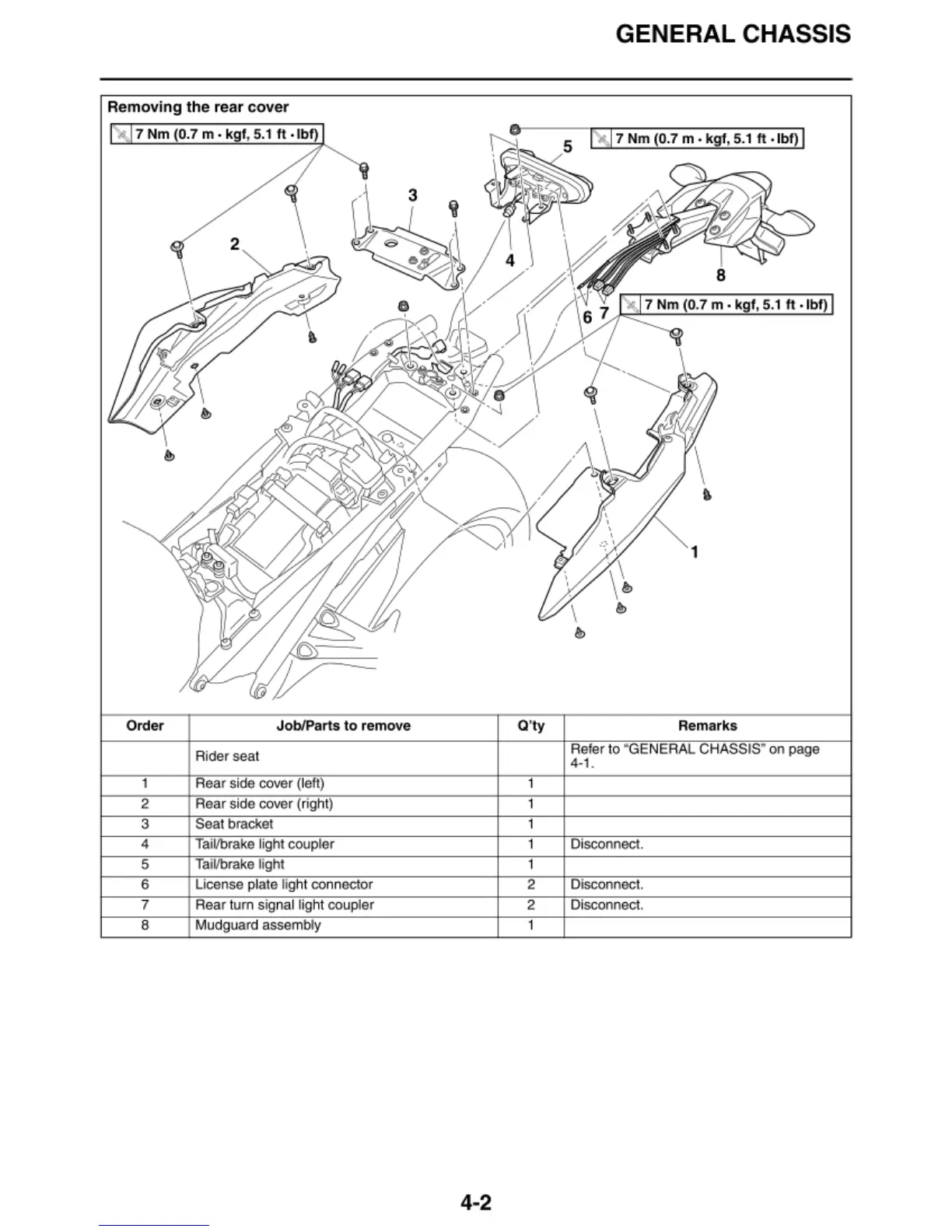

Remov i ng the rear cover
7 Nm (0.7 m. kg l, 5.1 It
0
l bl )
[ 'l\ l 7 Nm (0.7 m • kg l, 5.1 It · lbl) I
3
2
\
7 Nm (0.7 m • kgf , 5.1 It · lbf)
1
r-
Order Job/Parts to remove Q 'ty Remarks
Rider
sea t
Refer to "GENERAL CHASSIS" on page
4· 1.
1 Rear side cover (le ft ) 1
2 Rear side cover (r ig ht) 1
3
Seat bracket 1
4
Ta il/brake light coupler 1 Oisconnect.
5
Ta il/brake li ght 1
6
License plate l ig ht co nnector 2 Oisconnect.
7 Rear turn signal light co upler
2
Disconnect.
8
Mudguard assembly
,
4-2
