Yamaha FZ09E - Radiator

EA$28SEIO

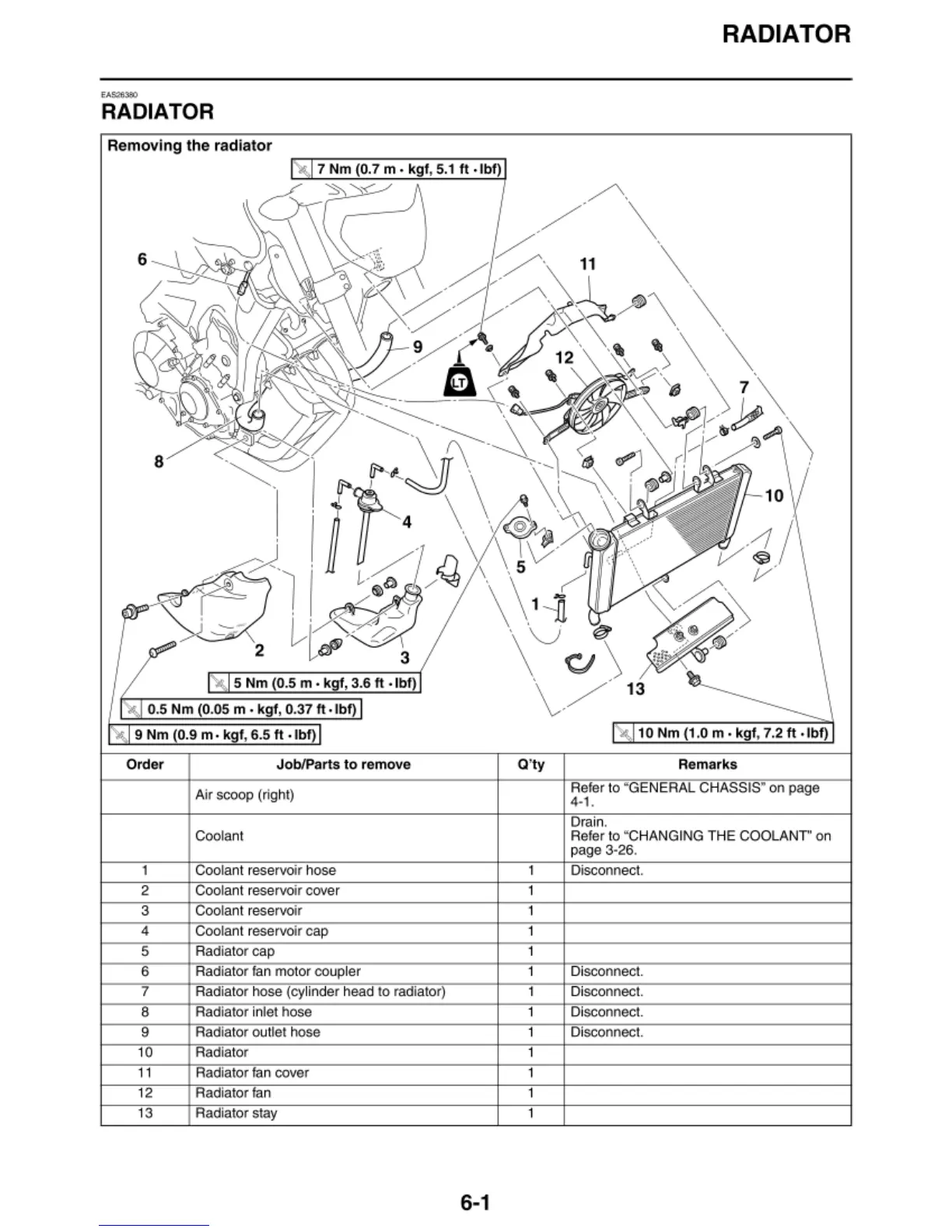

RADIATOR
Removing t he ra di a to r
~ 7 Nm (0.7 m • kgf , 5 .1 ft ·lbf)
~ <"<".
8
9 Nm (0.9 m . kgf , 6.5 ft • lbf)
Order
Job/Parts to re mov e
Air scoop (r
ig ht)
Coolant
1 Coolant reservoir hose
2
Coolant reservoir cover
3
Coolant reservoir
4 Coolant reservo
ir cap
5
Radiator cap
6
Radiator fan mo tor co upler
7
Radiator hose (cylinder head to radiator)
8 Radiator inlet hose
9 Radiator outlet h ose
10 Radiator
11 Radiator fan cover
12 Radiator fan
13 Radiator stay
6-1
Q' ty
1
1
1
1
1
1
1
1
1
1
1
1
1
RADIATOR
Re marks
Refer to "GENERAL CHASSIS• on page
4-1.
Drain.
Refer to "CHANGI
NG THE COOLA NT' on
page 3·26.
Disconnec
t.
Disconnect.
Disconnect.
Disconnect.
Disconnect.
