OIL PUMP
EA$24Q21

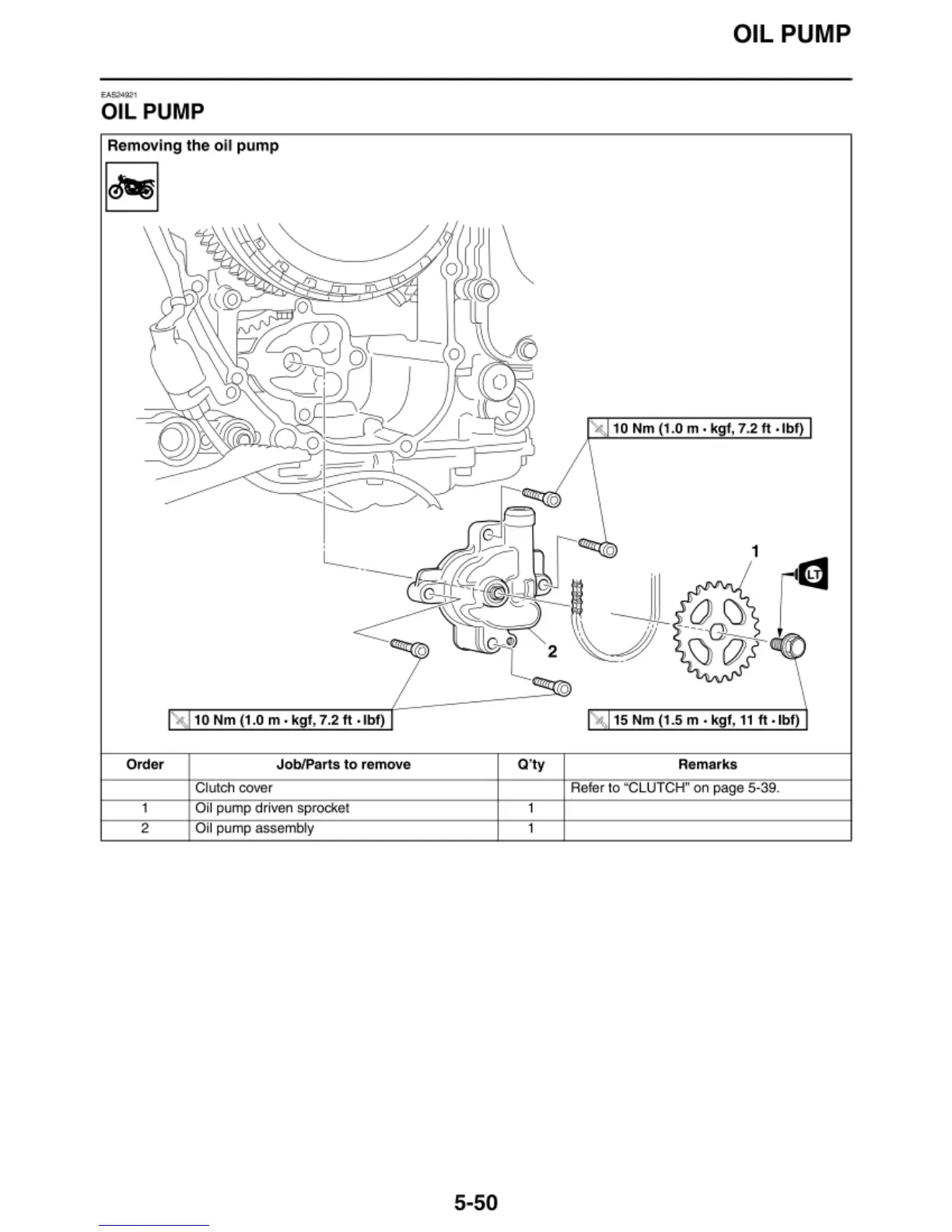

OIL PUMP
Removing the oil p ump
0 \
~
'ii, 10 Nm ( 1. 0 m • kgf , 7.2 ft · lbf)
0
10 Nm 1.0 m . kgf , 7.2 ft · lbf) 15 Nm (1 .5m.kgf , 11 ft ·l bf)
Order Job/Parts to remove Q' ty Re marks
Clu!ch cover Refer 10 "CLUTCH" on page 5-39.
1 Oil pump d ri ven sproekel 1
2 Oil pump assembly 1
5-50
